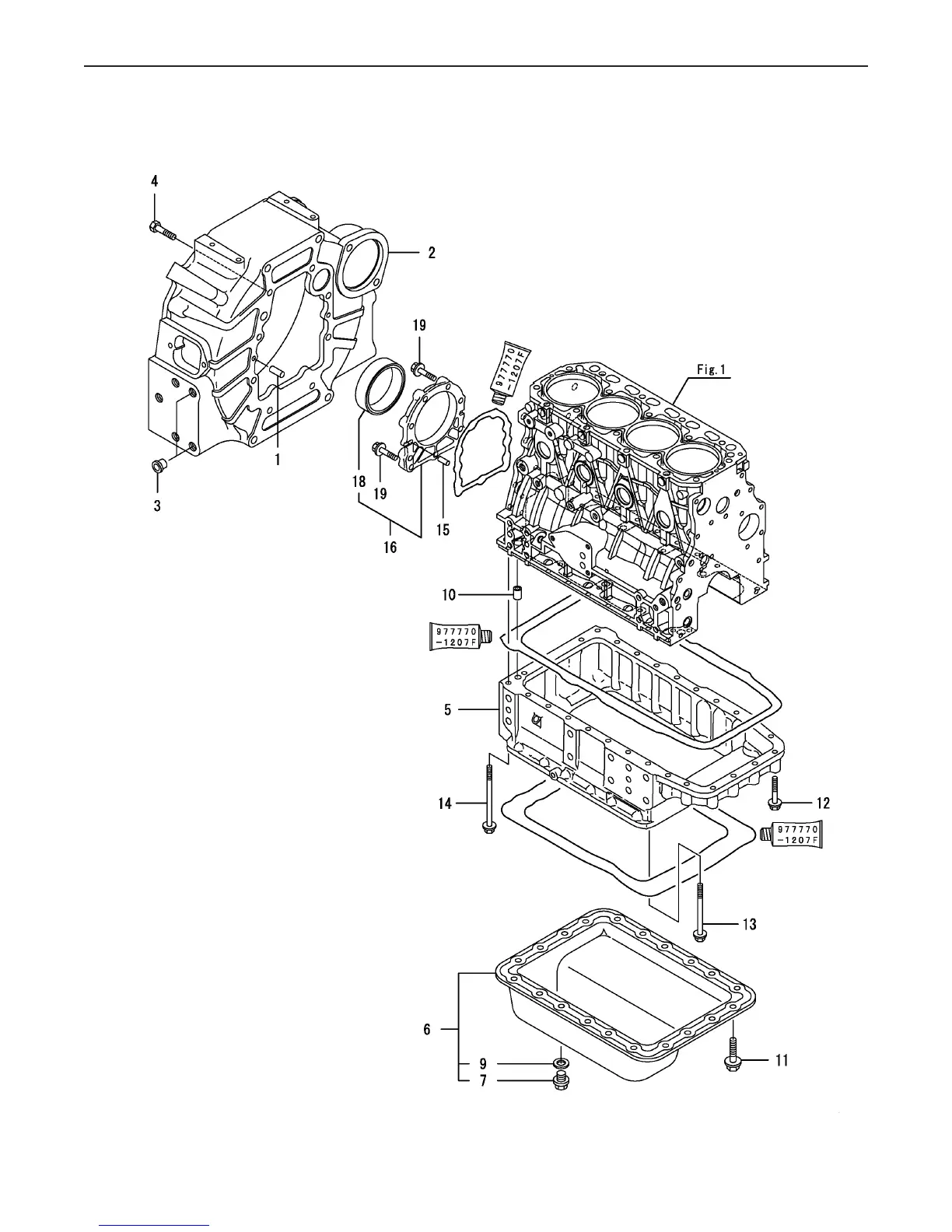

Fig 3. Flywheel Housing & Oil Sump
Fig.3. FLYWHEEL HOUSING & OIL SUMP
0CNP5-G38200
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
0CNP5-G38200
3. FLYWHEEL HOUSING & OIL SUMP
(F)=
(E)=
(D)=
(C)=
(B)=4TNV88-BLRG1
(A)=4TNV88-ULRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
PIN, PARALLEL129100-0158011 22
HOUSING, FLYWHEEL129558-0162012 11
PLUG 15194450-1119013 66
BOLT M10X2526206-10025214 88
SUMP, LUB.OIL129550-0170215 11
COVER ASSY, OIL SUMP729429-0172116 11
PLUG, M16105425-0169027 11
WASHER, 1622190-16000229 11
PIPE, KNOCK129555-01750110 11
BOLT M 8X 12 PLATED26106-080122111 2020
BOLT M 8X 50 PLATED26106-080502112 88
BOLT M 8X100 PLATED26106-081002113 1414
BOLT M 8X120 PLATED26106-081202114 44
PIN, PARALLEL129100-01580115 22
CASE ASSY, OIL SEAL729402-01650116 11
SEAL, OIL129120-01780218 11
BOLT, M8X30129486-01670119 99
