Cub Cadet Yanmar Lx490

Lx490Lx Series
Copyright 2011 Cub Cadet Yanmar LLC
175

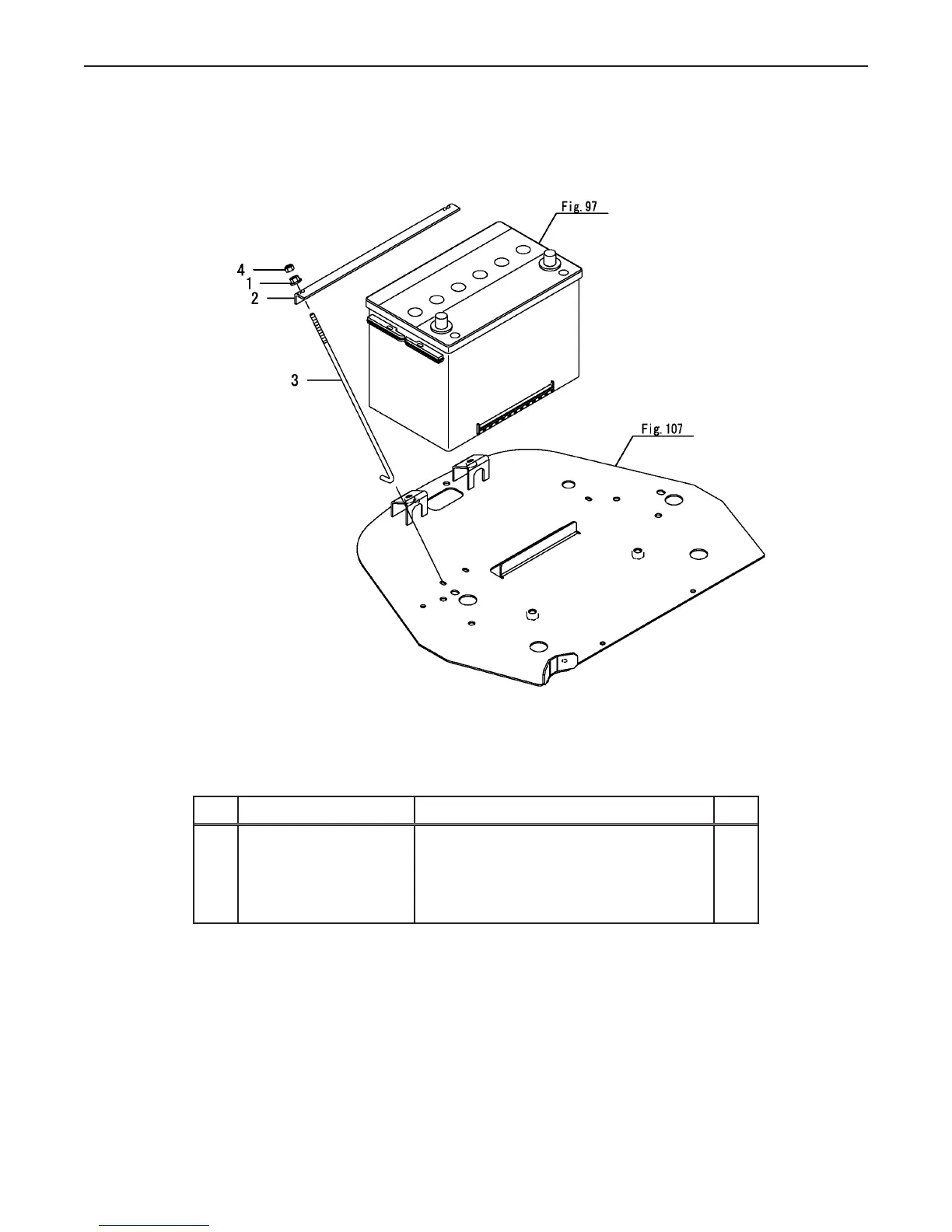

Fig 99. Battery Clamp
Ref.
Part Number Description Qty
1 CY-194990-22130 NUT W/WASHER 6 2
2 CY-1A8275-51600 CLAMP,BAT TERY,6-290 1
3 CY-1A8275-51610 ROD,BATTERY 2
4 CY-26716-060002 NUT 6 2
Fig.99. CLAMP(BATTERY
0CNP5-G37900
0CNP5-G37900
99. CLAMP(BATTERY
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
NUT W/WASHER 6194990-2213011 2
CLAMP,BATTERY,6-2901A8275-5160012 1
ROD,BATTERY1A8275-5161013 2
NUT 626716-06000214 2
(C)Copy Rights YANMAR CO.,LTD.
