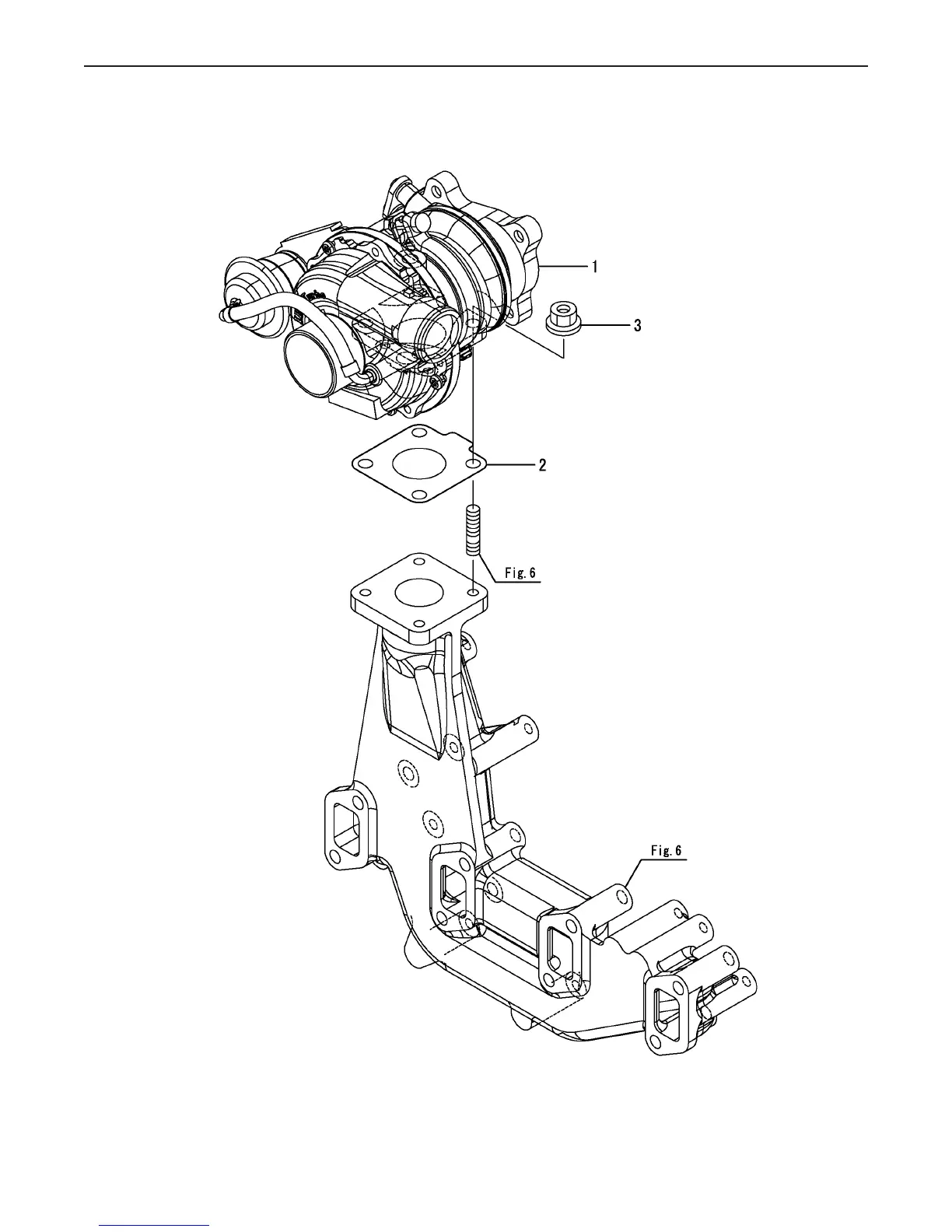

Fig 8. Turbine
Fig.8. TURBINE
0CNP5-G38300
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
0CNP5-G38300
8. TURBINE
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=4TNV84T-BMRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
TURBINE, RHF4129558-1801011 1
GASKET, TURBOCHARGER129508-1808012 1
NUT, M826306-08000213 4
