Cub Cadet Yanmar Lx490

Lx490Lx Series
Notes
30
Copyright 2011 Cub Cadet Yanmar LLC Copyright 2011 Cub Cadet Yanmar LLC

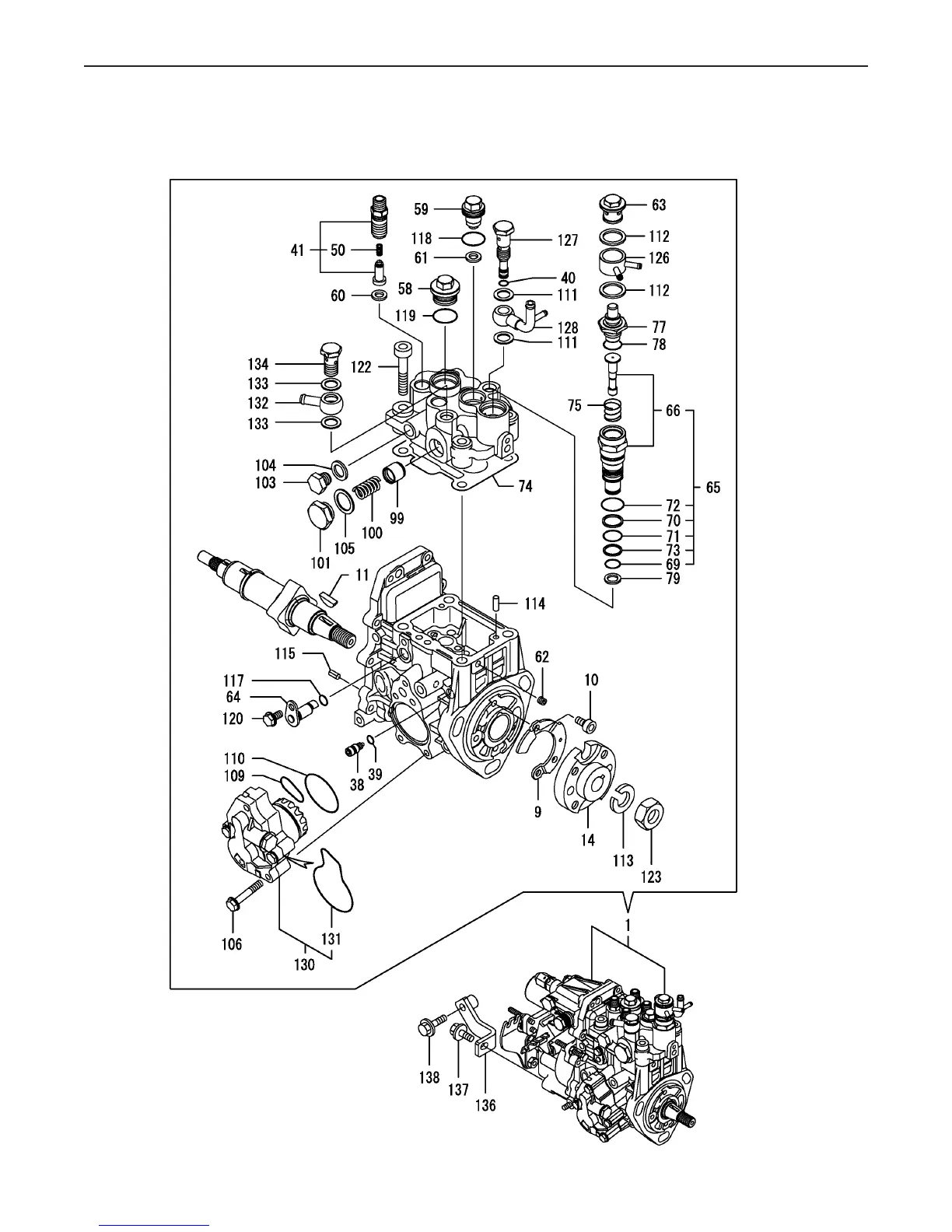

Fig 14. Fuel Injection Pump
Fig.14. FUEL INJECTION PUMP
0CNP5-G38300
Remarks
Note: "Effective Machine No." of the
Engine Section is indicated on
the Model Label which is shown
in Fig.4.
(1)Governor(Fig.15)is incorporated in
this Fuel Injection Pump (Ref.1).
0CNP5-G38300
14. FUEL INJECTION PUMP
(F)=
(E)=
(D)=
(C)=
(B)=
(A)=4TNV84T-BMRG1
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
1INJECTION PUMP ASSY729558-5131011 1
COVER129008-5190029 1
BOLT M6X10129008-51920210 2
KEY, WOODRUFF 4X16119802-51090211 1
FLANGE158552-51151214 1
STOPPER, TAPPET158600-51270238 1
O-RING158563-51281239 1
O-RING158563-51281240 1
SETTING, DELIVERY129509-51390241 4
SPRING, DELIVERY158563-51330350 4
PLUG158601-51550258 1
PLUG, BARREL119802-51560259 1
PK(BARREL PLUG158552-51571260 3
PK(BARREL PLUG158552-51571261 1
PLUG158557-51570262 1
PLUG, WATER PUMP158601-51570263 1
LIFTER158552-51580264 1
TIMER SET119802-51590265 1
TIMER CMP119802-51600366 1
O-RING, 1011158553-51670369 1
BACKUP RING119802-51680370 1
O RING119802-51690371 1
PACKING, 1902024356-190200372 1
RING, BACKUP T2 P 1524372-000150373 1
PACKING, HEAD158552-51600274 1
SPRING, TIMER158553-51630275 1
ELEMENT, THERMO158553-51640277 1
O-RING,P14158553-51660278 1
PACKING,TIMER158553-51680279 1
PISTON158601-51770299 1
SPRING, ACTUATOR158552-517812100 1
PLUG158601-517902101 1
PLUG,M12158553-519302103 1
SEAL WASHER 1222190-1200022104 1
WASHER, 1822190-1800022105 1
BOLT158553-517702106 4
O-RING158552-523112109 1
O-RING 4E S42158552-524002110 1
SEAL WASHER 1222190-1200022111 2
WASHER, 1822190-1800022112 2
SPRING WASHER 1422217-1400002113 1
PARALLEL PIN 5X1422312-0501402114 2
SPRING PIN 5X1022351-0500102115 2
O-RING 1A P-7.024311-0000702117 1
O-RING 4D 1901824356-1901802118 1
PACKING, 1902024356-1902002119 1
BOLT 6X 10 PLATED26106-0601022120 1
BOLT M 8X 4526450-0804522122 4
LOCK NUT M14 PLATED26776-1400022123 1
JOINT, COOLING WATER158553-515512126 1
JOINT, OVER FLOW158601-516502127 1
++ CONTINUE ++
(C)Copy Rights YANMAR CO.,LTD.
Ref.
Part Number Description Qty
1 CY-729558-51310 INJECTION PUMP ASSY 1
9 CY-129008-51900 COVER 1
10 CY-129008-51920 BOLT M6X10 2
11 CY-119802-51090 KEY, WOODRUFF 4X16 1
14 CY-158552-51151 FLANGE 1
38 CY-158600-51270 STOPPER, TAPPET 1
39 CY-158563-51281 O-RING 1
40 CY-158563-51281 O-RING 1
41 CY-129509-51390 SETTING, DELIVERY 4
50 CY-158563-51330 SPRING, DELIVERY 4
58 CY-158601-51550 PLUG 1
59 CY-119802-51560 PLUG, BARREL 1
60 CY-158552-51571 PK(BARREL PLUG 3
61 CY-158552-51571 PK(BARREL PLUG 1
62 CY-158557-51570 PLUG 1
63 CY-158601-51570 PLUG, WATER PUMP 1
64 CY-158552-51580 LIFTER 1
65 CY-119802-51590 TIMER SET 1
66 CY-119802-51590 TIMER CMP 1
69 CY-158553-51670 O-RING, 1011 1
70 CY-119802-51680 BACKUP RING 1
71 CY-119802-51690 RING 1
72 CY-24356 -190200 PACKING, 19020 1
73 CY-24372-000150 RING, BACKUP T2 P 15 1
74 CY-158552-51600 PACKING, HEAD 1
75 CY-158553-51630 SPRING, TIMER 1
77 CY-158553-51640 ELEMENT, THERMO 1
78 CY-158553-51660 O-RING,P14 1
79 CY-158553-51680 PACKING,TIMER 1
99 CY-158601-51770 PISTON 1
