Cub Cadet Yanmar Lx490

Lx490Lx Series
42
Copyright 2011 Cub Cadet Yanmar LLC

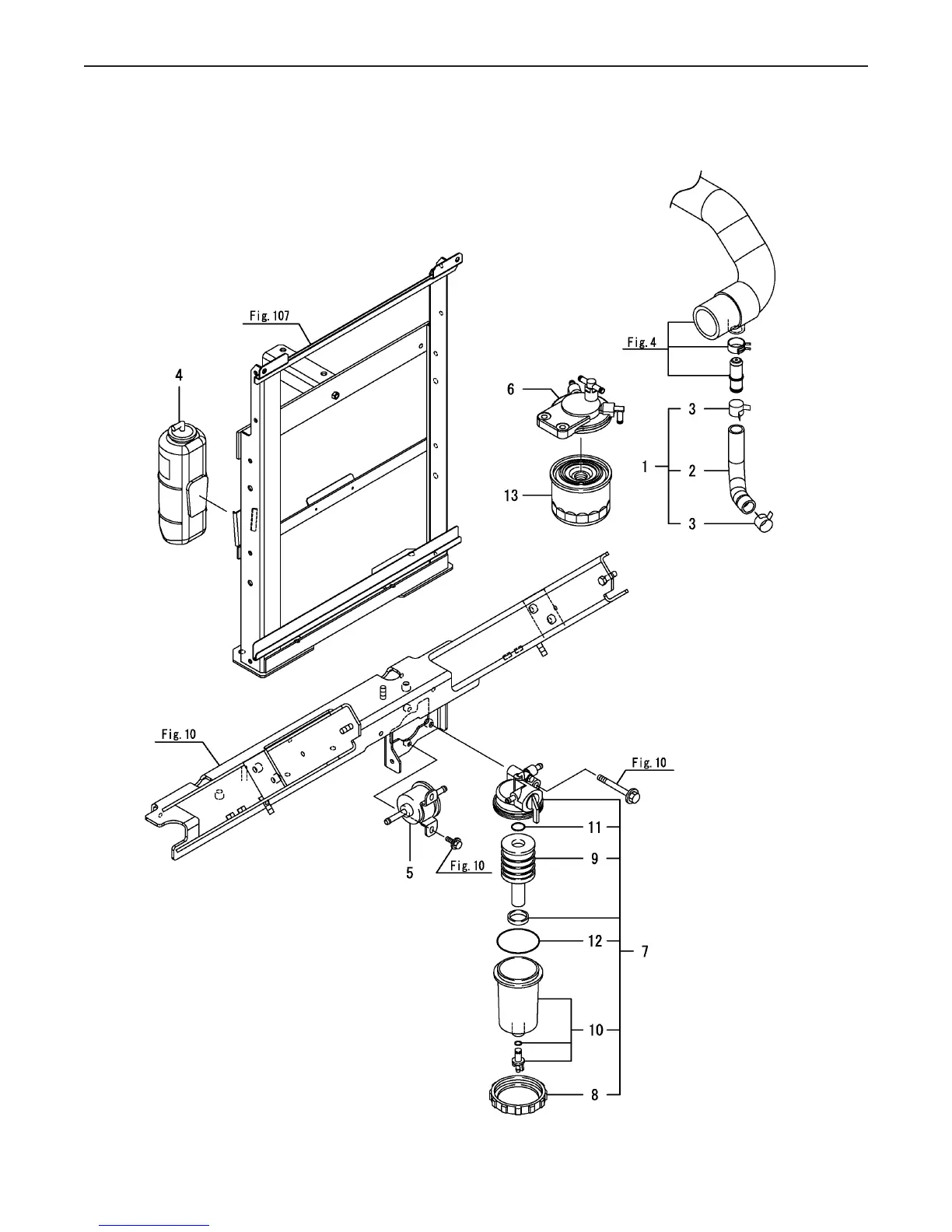

Fig 2. Engine Related Lx490
Fig.2. ENGINE RELATED
0CNP5-G37900
0CNP5-G37900
2. ENGINE RELATED
(F)=
(E)=
(D)=
(C)=LX490
(B)=LX450
(A)=LX410
LEV.REF. PARTS NO. DESCRIPTION
RI
Q'TY
(F)(D)(C)(B)(A) (E)
HOSE ASSY, BREATHER129509-0308011 1
HOSE, BREATHER129509-0309022 1
CLAMP 22129410-0399023 2
TANK ASSY, SUB129263-4451014 1
PUMP ASSY, FUEL FEED119225-5210215 1
BRACKET, FILTER129004-5561216 1
SEPARATOR ASSY119802-5570017 1
RING, RETAINING129100-5569028 1
ELEMENT119802-5571029 1
CUP ASSY119802-55730210 1
O-RING 1A P-16.024311-000160211 1
O-RING 1A G-65.024321-000650212 1
FILTER, FUEL119802-55801113 1
(C)Copy Rights YANMAR CO.,LTD.
