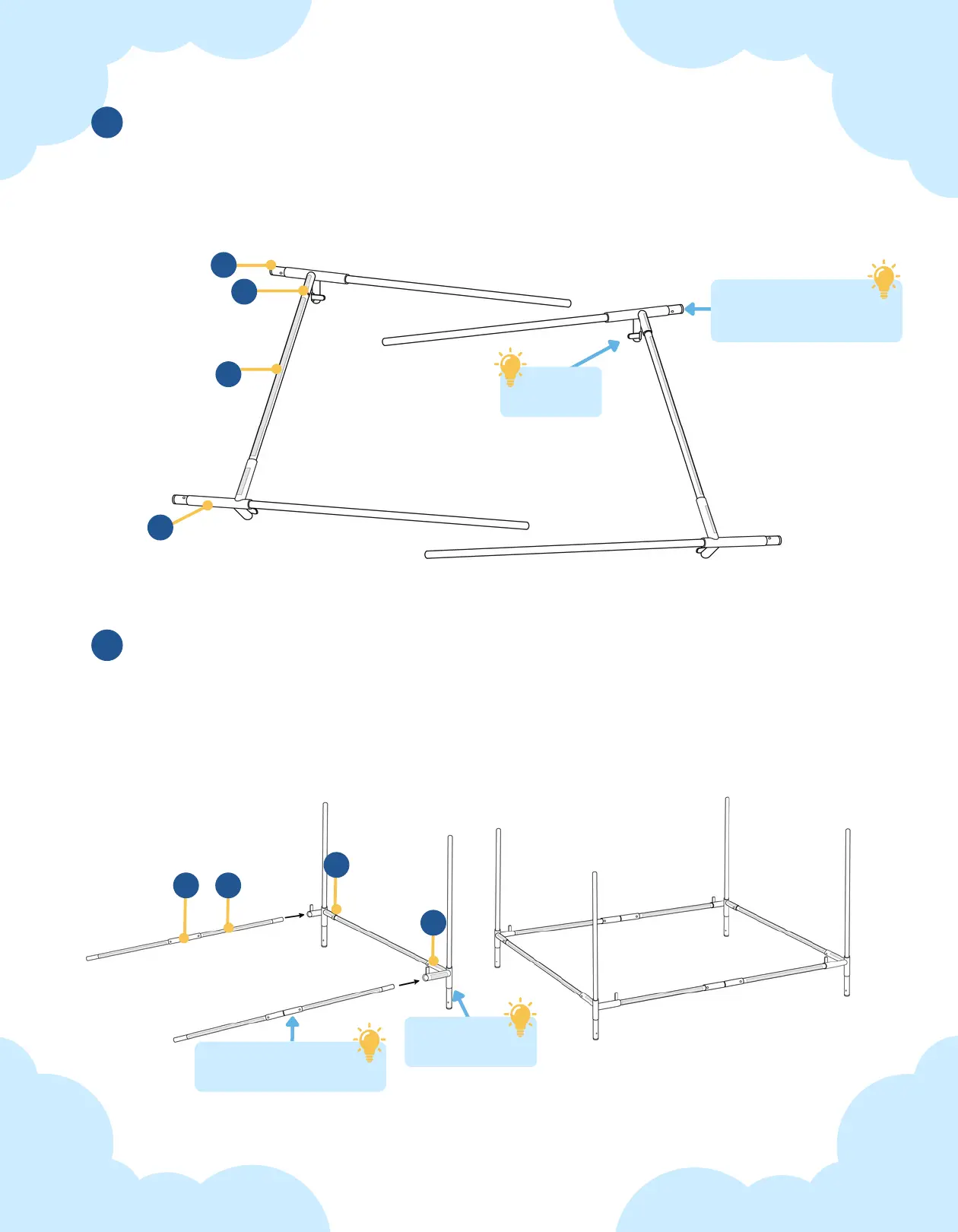

Insert #3 poles into #7 straight connector, align Velcro, and tighten #20 screws
with #19 hex key. Repeat for the other set. Insert tube you just assembled into #9
and #10 connectors, aligning the Velcro so it’s facing down. Repeat on the other
side. Tighten #20 screw on #9 and #10 connectors with #19 hex key.
1
2
9
4
10
37
9
10
2
Push Poles all the
way into connectors
Connector
rests above bolt
Connector sits
above bolt on vertical
pole
Slide pole #2 through connectors #9 so that the connector sits above the bolt.
Repeat with connector #10. The connector tabs should be on the inside. Insert pole
#4 into #9 and #10 connectors and orient like below. Insert four #20 screws into the
#9 and #10 connectors and tighten with #19 hex key. Repeat to make two sets
6
Tab on
inside
