Cube REACTION GTC User Manual

x
y
| 11
C:68 X/ C:62 / GTC / HPCC:68 X / C:62 / GTC / HPC
Brake mount screws
5 - 7 Nm

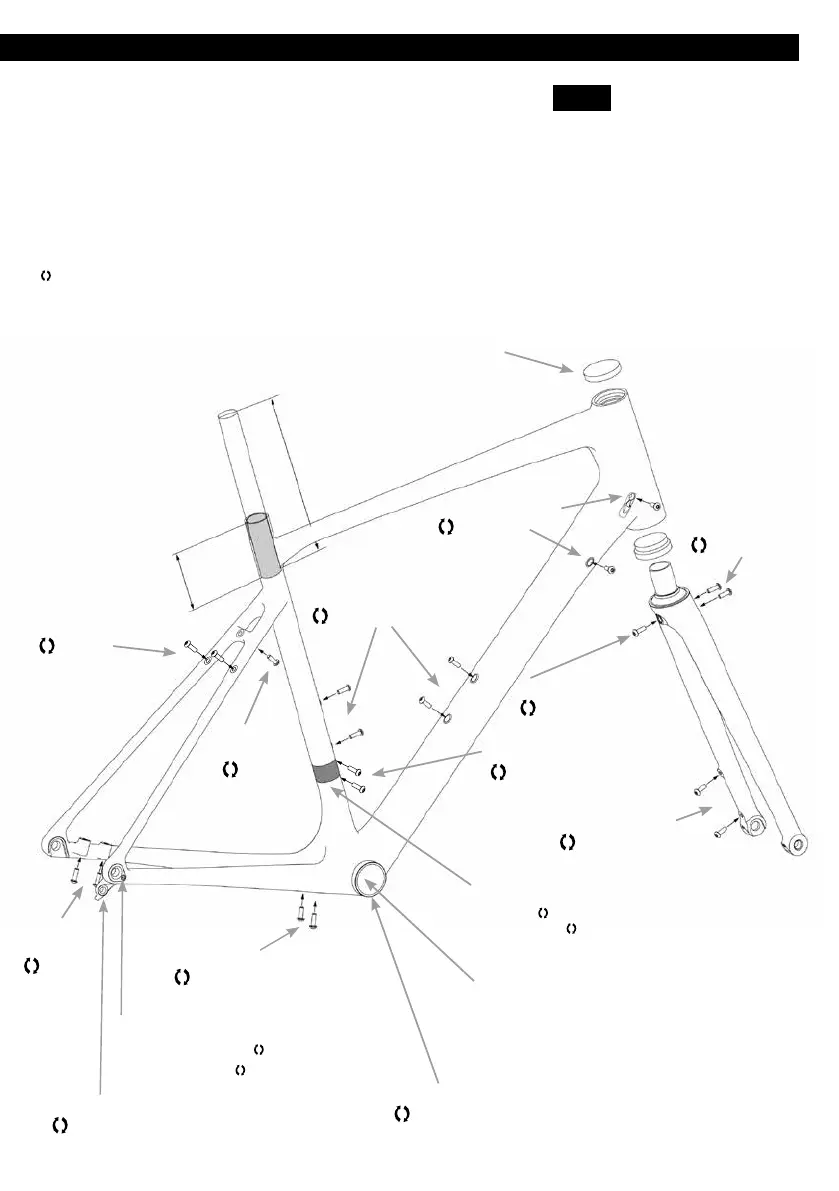

7.2 The racing bike frame
Seat post assembly
Consider max. allowed seat post length (x) including min. insert length (y):
100 mm (y) at 350 mm (x)
For seat post assembly apply carbon assembly paste to seat post and to the
inside of seat tube. It is not allowed to use standard grease!
Consider torque on seat clamp and seat post!
Max. 6 Nm (apply gradually)
Bottle cage assembly screws
Only M5 screws are allowed.
Max. 3 Nm
Cable routing screws
Max. 1,5 Nm
Brake mount screws
6 - 8 Nm
Front derailleur mount screw
Band type 5 - 7 Nm (apply gradually)
Brazed-on type 5 - 7 Nm (apply gradually)
Cable routing or cover screw(s)
Max. 1,5 Nm
Bottom bracket
Use only suitable „Presst“ bearings. Special tools
for assembly and disassembly of “Presst” bearings
are necessary. Grease is only allowed on frames with
alloy tube.
Cable routing screws
Max. 1,5 Nm
Rear derailleur mount screw
8 - 10 Nm
Brake mount screw
8 - 10 Nm
Brake mount screws
5 - 7 Nm
Brake mount
screw
8 - 10 Nm
Brake mount screws
5 - 7 Nm
Brake mount
screws
6 - 8 Nm
Hanger mount screw(s)
X12 through axle system slightly screwed (1 screw)
Quick release system slightly screwed (2 screws)
Braze-on adapter screws
Max. 2 Nm
Head set assembly (integrated /
semiintegrated) Special tools for
assembly and disassembly of head
set or head set cups are necessary.
Usage owase is not allowed!
• LITENING stem clamping 4,5-5Nm
• LITENING saddle clamping 5-6Nm
• AERIUM stem clamping 4,5-5Nm
• AERIUM saddle clamping 5-6Nm
