10 |
Head set assembly (integrated / semiintegrated)
Special tools for assembly and disassembly of
head set or head set cups are necessary. Usage
owase is not allowed!
C:68 X / C:62 / GTC / HPC
7 Assembly Instructions

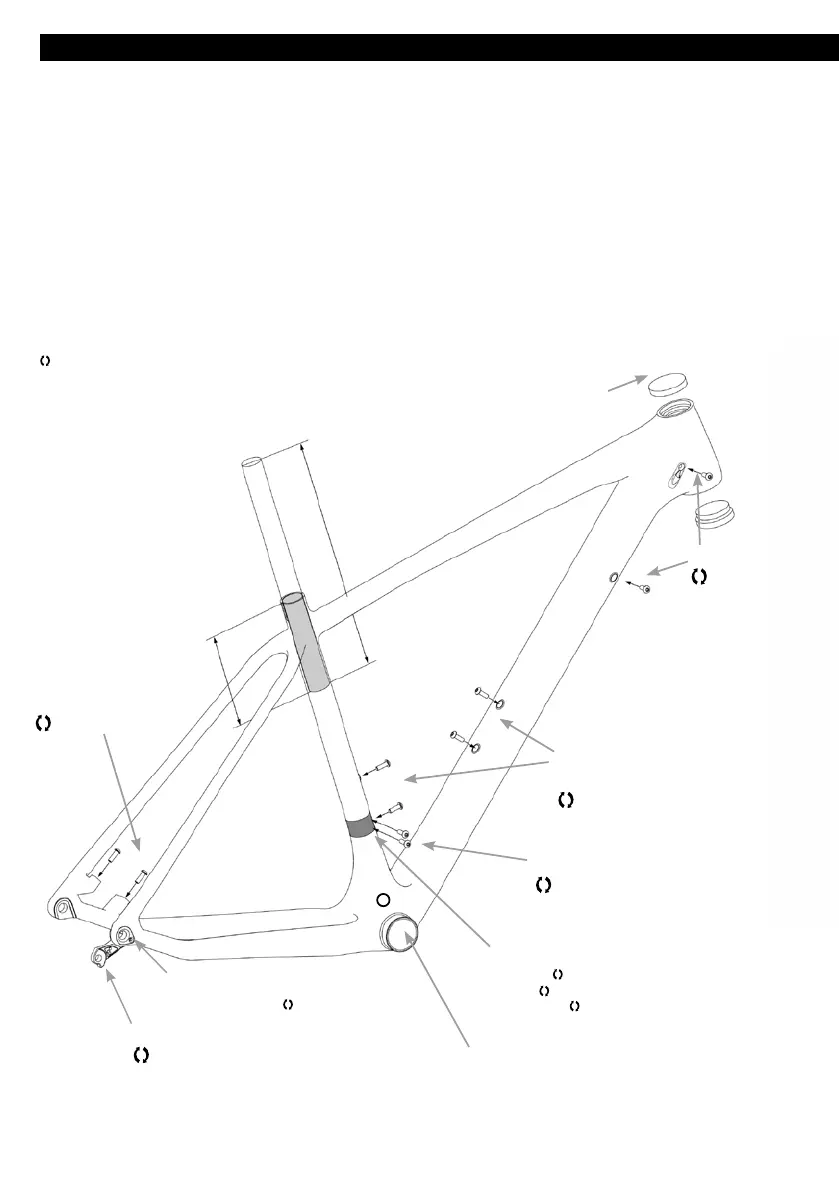

7.1 The MTB bike frame
Seat post assembly
Consider max. allowed seat post length (x) including min. insert length (y):
120 mm (y) at 400 mm (x)
120 mm (y) for adjustable seat post (e.g. RockShox Reverb) with max. 420mm (x)
110 mm (y) at 380 mm (x)
100 mm (y) at 350 mm (x)
For seat post assembly apply carbon assembly paste to seat post and to the
inside of seat tube. It is not allowed to use standard grease!
Consider torque on seat clamp and seat post!
Max. 6 Nm (apply gradually)
Brake mount screws
6 - 8 Nm
Rear derailleur mount screw
8 - 10 Nm
Bottle cage assembly screws
Only M5 screws are allowed.
Max. 3Nm
Bottom bracket
Use only suitable „Presst“ bearings.
Special tools for assembly and disassembly of
“Presst” bearings are necessary.
Grease is only allowed on frames with alloy tube.
Front derailleur mount screw
Band type 5 - 7 Nm (apply gradually)
E-direct 5 - 7 Nm
Direct Mount 5 - 7 Nm
Hanger mount screw
X12 through axle system slightly screwed (1 screw)
Cable routing screws
Max. 1,5 Nm
Direct Mount Adapter screw
Max. 2 Nm
