Instructions: Cubex SkyMaster Series
Cubex Co., Inc. 05-06 Rev 0
Pg. 13

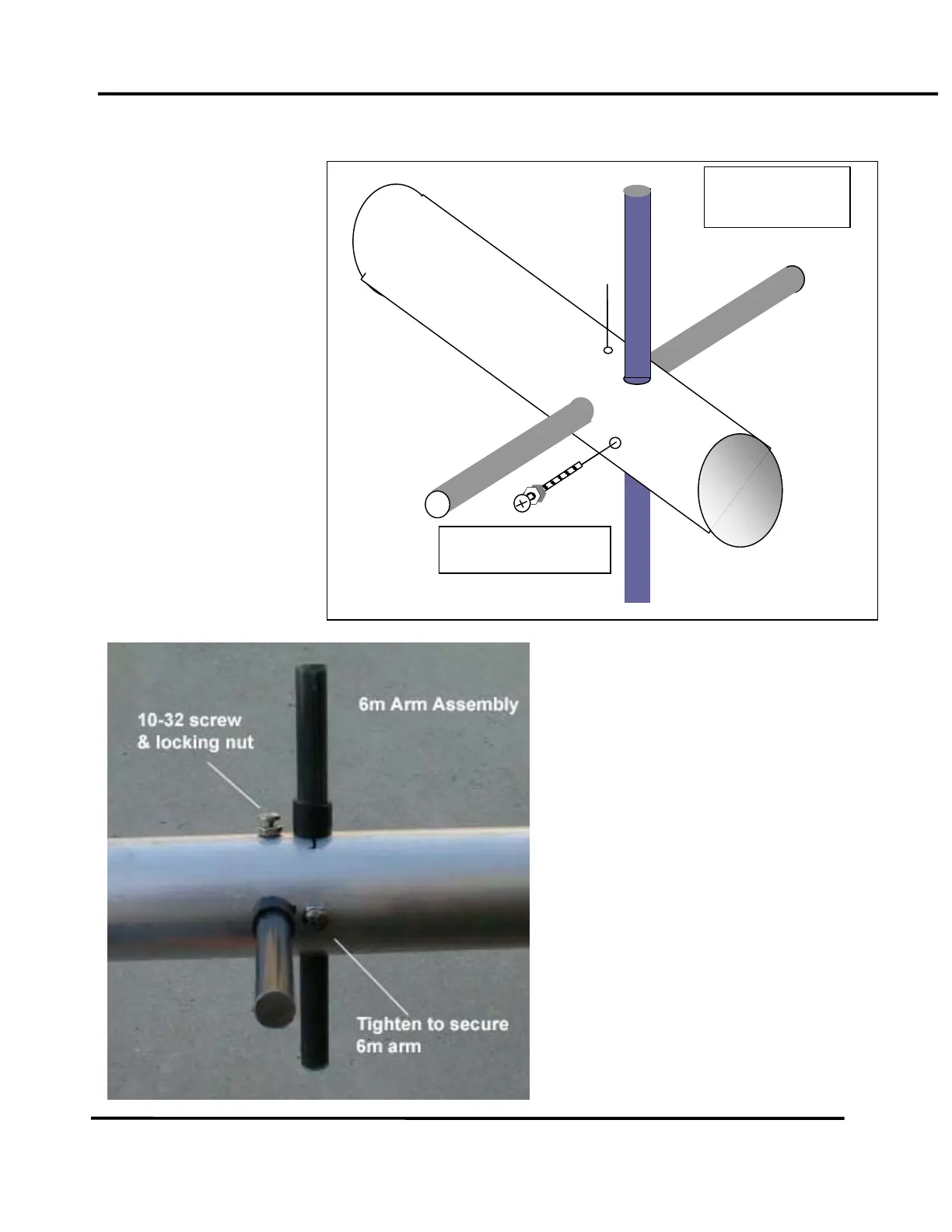

6 METER ARM ASSEMBLY
Note:
This 6m option requires the addition
of two sets of spreader arms to be
added to holes drilled in the boom.
The Driven Element (RED) and the
1
st
DIR (WHT) .
These 6m arms should be centered
in the boom and then tighten the
Phillips head screw to secure the arm
into the boom. Be careful to not over
tighten as damage to the screw or
fiberglass arm can occur.
The hex nut should be turned
clockwise to LOCK the screw
inplace.
6 meter arm
assembly
#10-32 x 1-0” phl hd
screw
