Cudy POE15 User Manual

Model
No. of channels
Pass Through
Data Rates
POE15
Power over
Ethernet input
Pin Assignment and Polarity:
Both 1/2, 3/6 and 4/5, 7/8
Power over
Ethernet Output
Pin Assignment and Polarity: 1/2 (+), 3/6 (-)
Output Power: up to 25W
1(PoE IN) into 1(PoE OUT)
10/100/1000 Mbps half/full duplex
Mounting
Environment
Operating Humidity
Storage Temperature
Storage Humidity:
Operating Ambient
Temperature
Wall or shelf
Indoor or Outdoor
Regulatory Compliance
-10 to45℃
-20 to 60℃
Maximum 95%, Non-condensing
IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Maximum 90%, Non-condensing
Dimensions
145mm x 60mm x 40mm
Connectors
Network cables
Shielded RJ-45, EIA568Aand 568B
Shielded category 5 (or higher)
Specifications
4
Features
3
Description
2

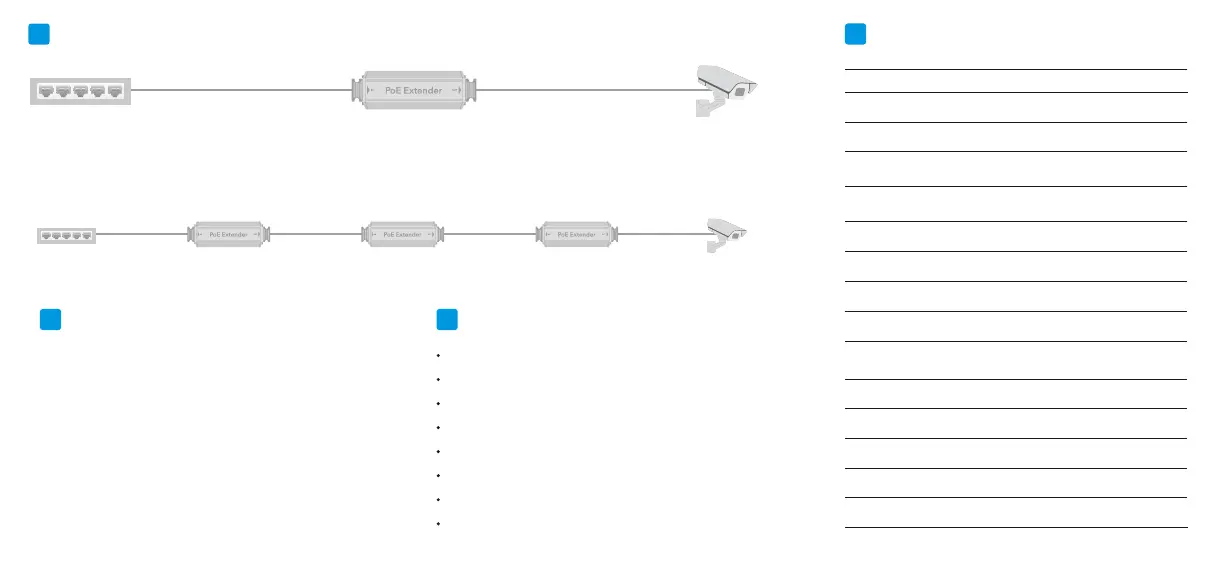

Hardware Connection
1
Support up to 3 PoE+ Extenders for 400 Meters Distance
PoE+ Extender CameraPoE+ Switch
MAX 100Meters MAX 100Meters
PoE+ Extender PoE+ Extender PoE+ Extender CameraPoE+ Switch
100Meters 100Meters 100Meters 100Meters
Cudy Outdoor Gigabit PoE+ Extender helps install PDs (such as
IP Security Cameras, wireless access points) at greater distances
than 100 meters. By connecting PoE+ Extender for every extra
100 meters of cable, both Ethernet and PoE can be extended to
up to a total distance of 200 meters. It does not require any
additional power supply , the connected PDs is fed by an single
PoE switch or mid-span, which simplifies installation.
Cudy Outdoor PoE+ Extender has an IP67 waterproof enclosure
and includes waterproof connectors on both the input and
output sides. With surge protection function, working
temperature is -25 ° C to 55 ° C, can withstand severe weather.
IP67 waterproof enclosure for outdoor use
IEEE802.3at / IEEE802.3af Compliant
10/100/1000Mbps Ethernet Ports
Wall-Mount design for any application scenario
Easy plug-and-play installation
No additional power supply is required
One PoE extender extends additional 100 meters for PoE network
Support up to 3 PoE Extenders for a total extension of 400 meters

Cudy POE15 Specifications

General

Duplex system	Full, Half
Networking standards	IEEE 802.3af, IEEE 802.3at
Cable types supported	Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Power over Ethernet (PoE)	Yes
Product color	Black
LED indicators	Activity, Link, PoE
Pin assignment & polarity	1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+)
Maximum operating distance	100 m
International Protection (IP) code	IP67
RJ-45 input ports	1
Ethernet LAN (RJ-45) ports	2
Output power	25 W
Power over Ethernet (PoE) voltage	- V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Package type	Box

Weight and Dimensions

Depth	45 mm
Width	185 mm
