ASSEMBLY INSTRUCTIONS
16
STEP 16
-----------------------------------------------------------------------------------
STEP 17
-----------------------------------------------------------------------------------

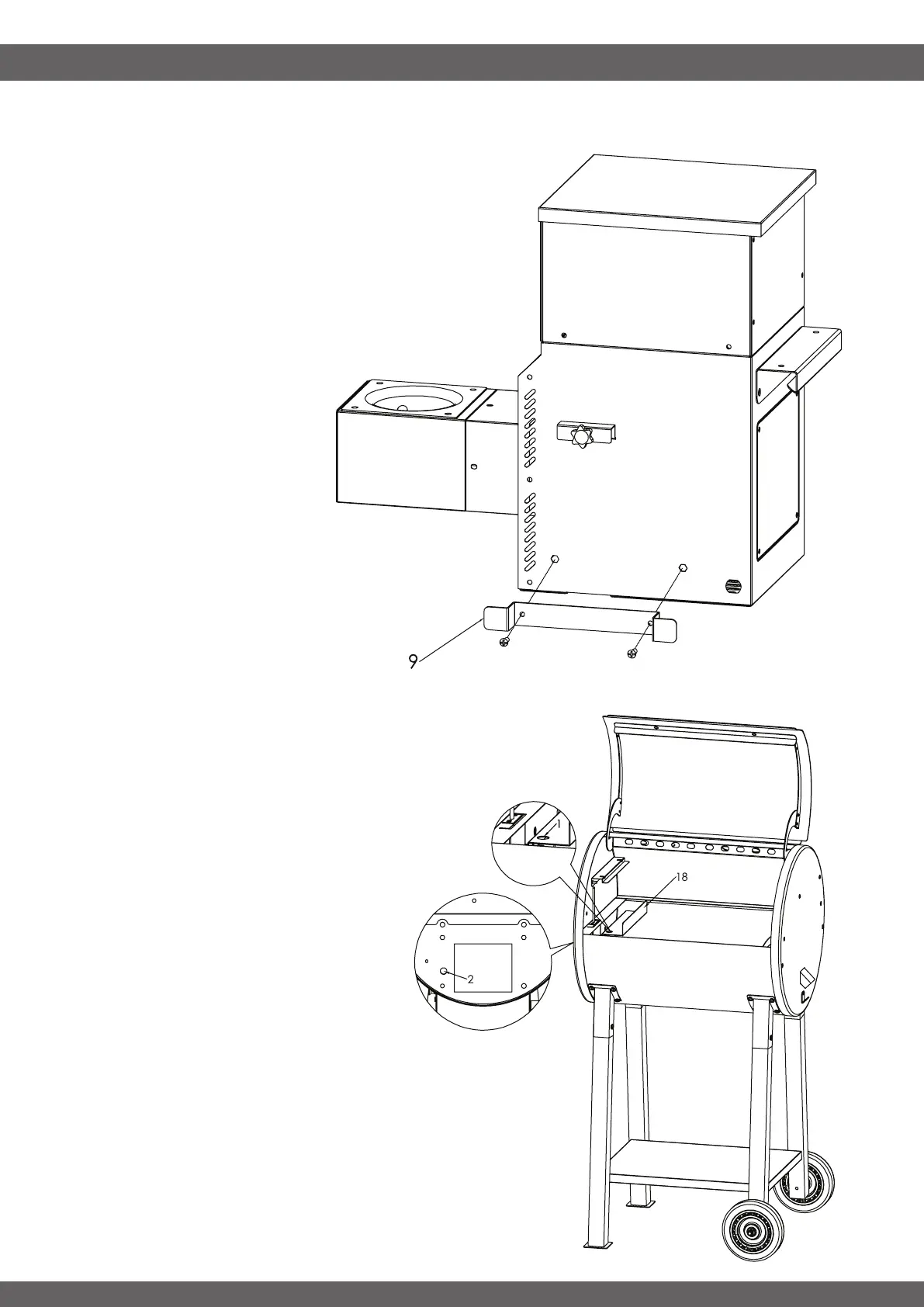

• Remove the two pre installed screws on the back
of the hopper and use them to attach the Cord
Wrap (9).
• Thread the Temperature sensor cable
through the hole on the Drip Shield
Bracket (18). This hole is labeled 1 on the
detail bubble. Ensure the orientation of
the bracket is correct where the two other
holes for screws are up against the side
wall of the Main Body.
• Route the temperature sensor cable
through to the outside of the main body
using the hole labeled 2 in the detail
bubble. Gently pull the cable all the
way out so most of it is outside the grill.
NOTE: the Drip Shield Bracket (18) will
be assembled at a later step, it is OK to
leave it hanging for now, make sure the
temperature sensor cable does not get
pinched in any of the following steps.
