STEP 28
-----------------------------------------------------------------------------------

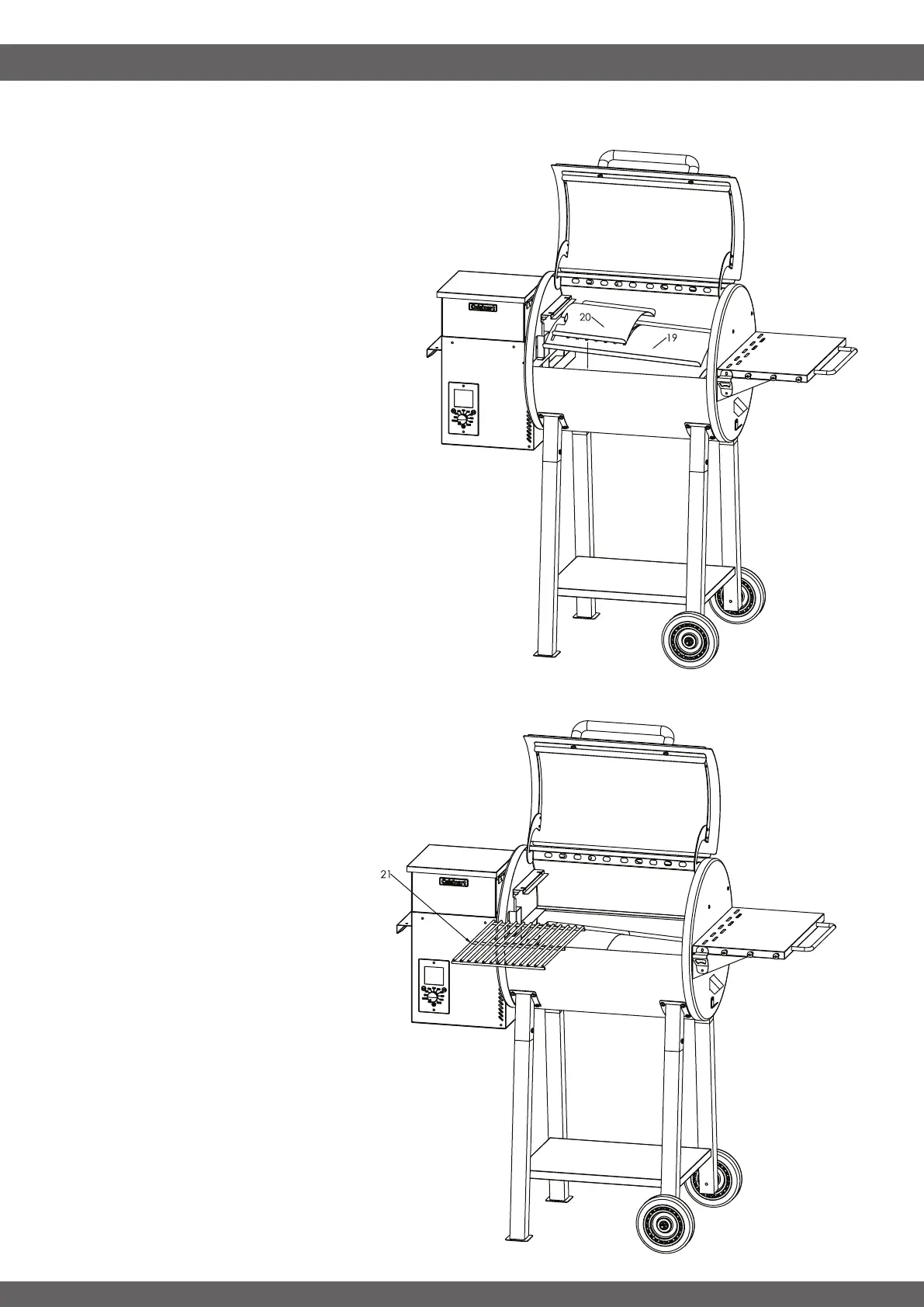

• Insert the Drip Shield (19) into the main
body as shown. The slats of the Drip
Shield (20) should be directly above the
fire pot. The drip shield slats into two tabs
on the left side and rests on top of the
Grease Channel on the right side tilting
down towards it.
• Place the Sear Shutter (20) on top of the
slats.
STEP 29
-----------------------------------------------------------------------------------
• Place the Cooking Grates (21) into
the grill chamber as shown.
ASSEMBLY INSTRUCTIONS
22
