Clean and Inspect for Reuse

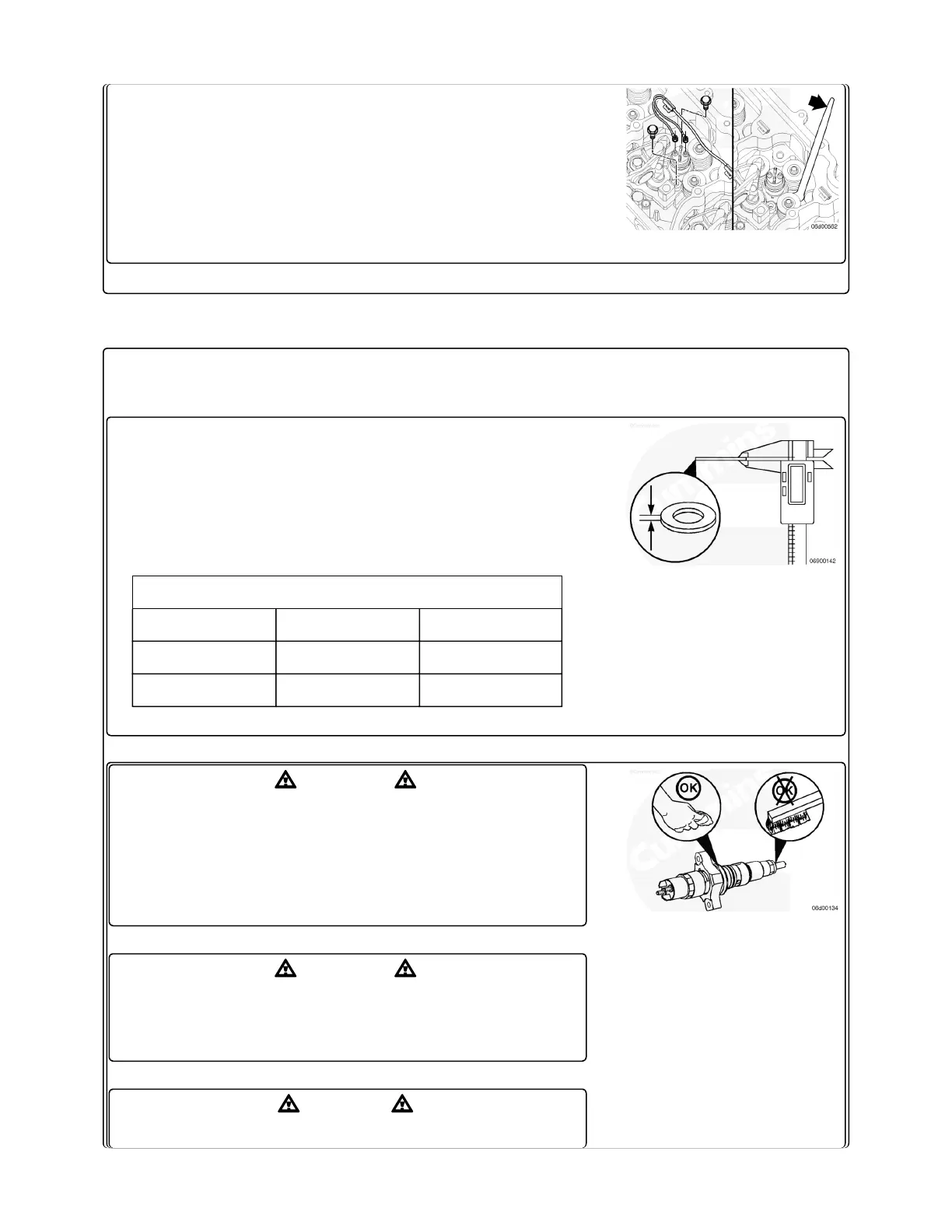

Install a new combustion sealing washer on the injector.
Verify the new injector sealing washer is the correct
thickness. An incorrect sealing washer can cause high-
pressure fuel leaks and/or performance problems, due to
incorrect injector protrusion.
Injector Sealing Washer Thickness
mm in
1.45 MIN 0.057
1.55 MAX 0.061
WARNING
Whenusingsolvents,acids,oralkalinematerials
forcleaning,followthemanufacturer's
recommendationsforuse.Weargogglesand
protectiveclothingtoavoidpersonalinjury.
WARNING
Somesolventsareflammableandtoxic.Readthe
manufacturer'sinstructionsbeforeusing.
CAUTION
