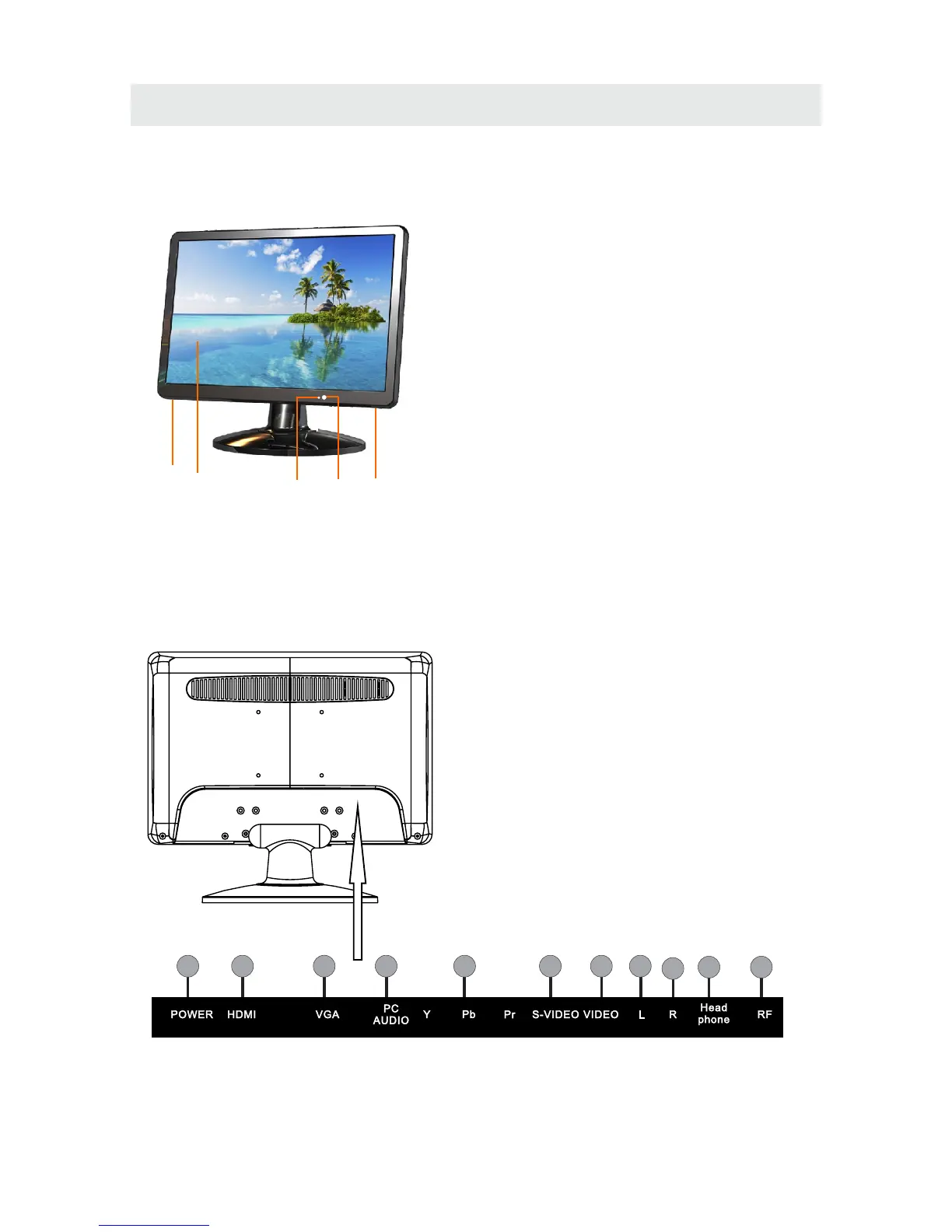

CONTROL REFERENCE GUIDE
BACK VIEW
FRONT VIEW
1
4
10
9
11
2
3
8
7
6
5
1.Color LED Screen
2.Remote Sensor
Do not block this sensor or the
remote control will not work.
3.Standby Indicator
Indicates whether the unit is ON
or in STANDBY (OFF) mode.
Light in red: The unit is in STANDBY.
Light in blue: The unit is turned ON.
4. Speakers
1.TV ANTENNA Terminal
2.HEAD PHONE Jack
3.AUDIO IN Jack (Right)
4.AUDIO IN Jack (Left)
5.VIDEO IN Jack
6.S-VIDEO Jack
7.Y / Pb / Pr Jacks
8.PC AUDIOIN Jack
9.VGA IN Jack
10.HDMI IN Jack
11.DC IN (12V)
5
3
4 4
21
