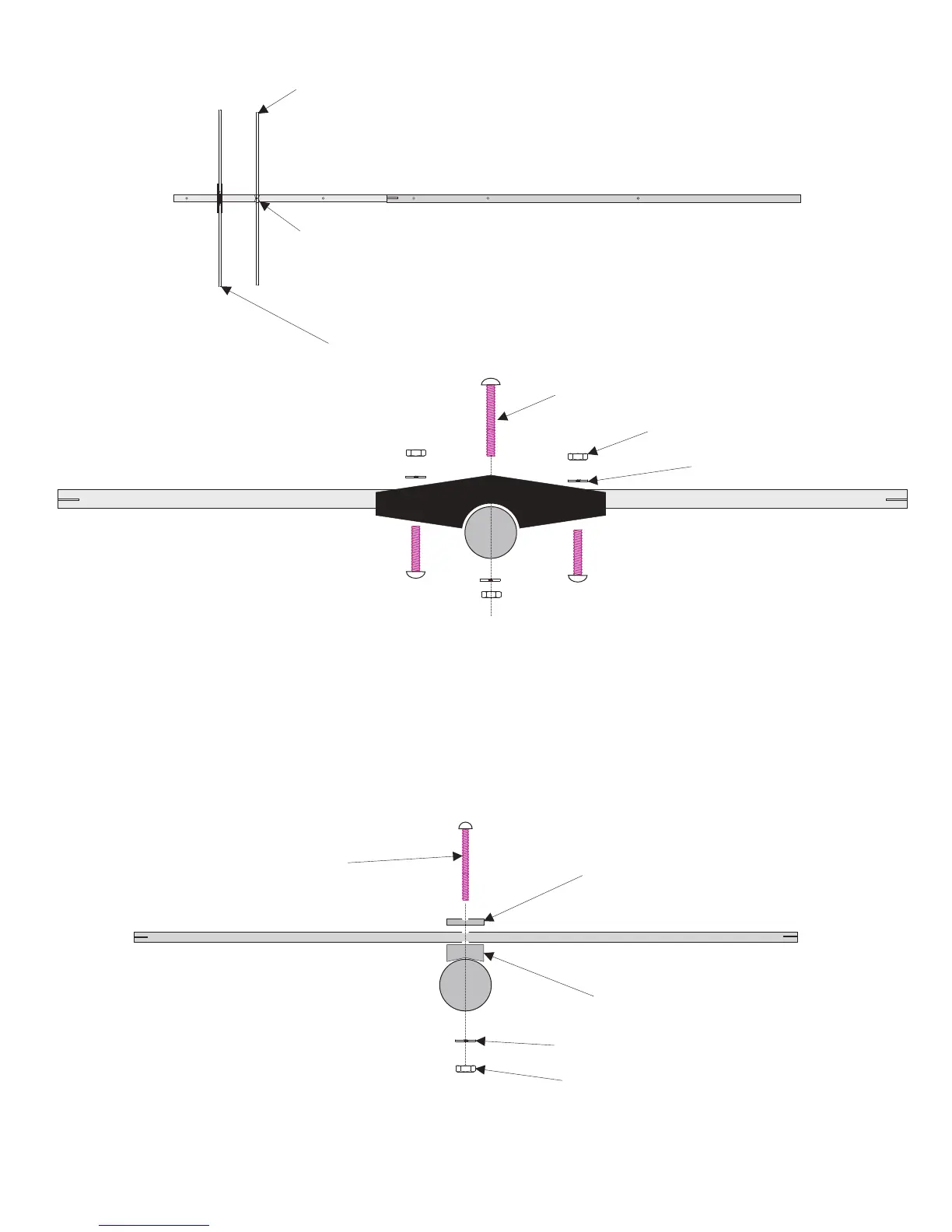

Mount the insulator on the Boom at the second hole from the rear of the antenna using the 8-32 x 2
inch bolt. Attach the two short 7/16 tubes to the insulator using the 8-32 x 1 inch bolt thru the holes
in the ends of the tubes. Go ahead and tighten the nuts but do not crush the tubes.
Mount the long 7/16 tube to the third hole from the rear of the boom using a longer 8-32 x 2-1/4
bolt, half washer and element saddle.
8-32 x 2-1/4
half washer
element saddle
short tubes with insulator
Long tube with saddle
2 IN BOLT
2-1/4 IN BOLT
8-32 x 2
8-32 nut
#8 lock washer
#8 lock washer
8-32 nut
Element saddle and
half washer.
Rear of Antenna
7/16 X 30
7/16 X 14-1/2
7/16 X 14-1/2
To Next Page
