CWT 1630 - Step 12: Place Diffuser plates and Glass plates on the table top.

Step 12

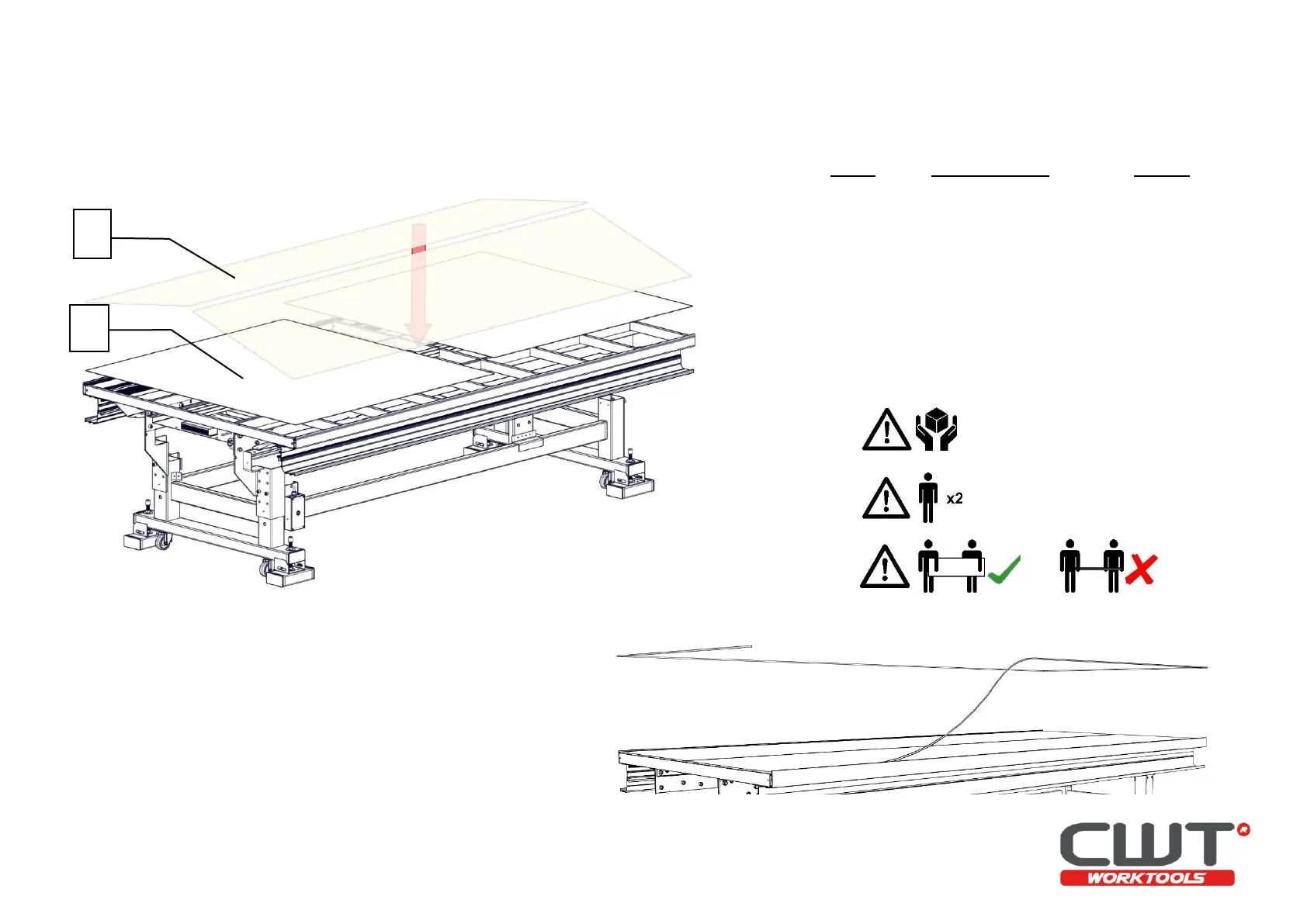

Place the Diffuser plates [1] and Glass plates [2] on the table top.
1
2
DIFFUSER PACK
Model Acrylic sheet size Position
1630 1492x1580 mm -
1640/1840 1085x1580/1780 mm Middle
1450x1580/1780 mm Right/left
1647/1847 1805x1580/1780 Middle
1450x1580/1780 Right/left
Place rubber band all
around the glass plates.
A small amount of lubricant like,
kitchen dish soap, applied on the
rubber makes the assembly easier.
