Step 4

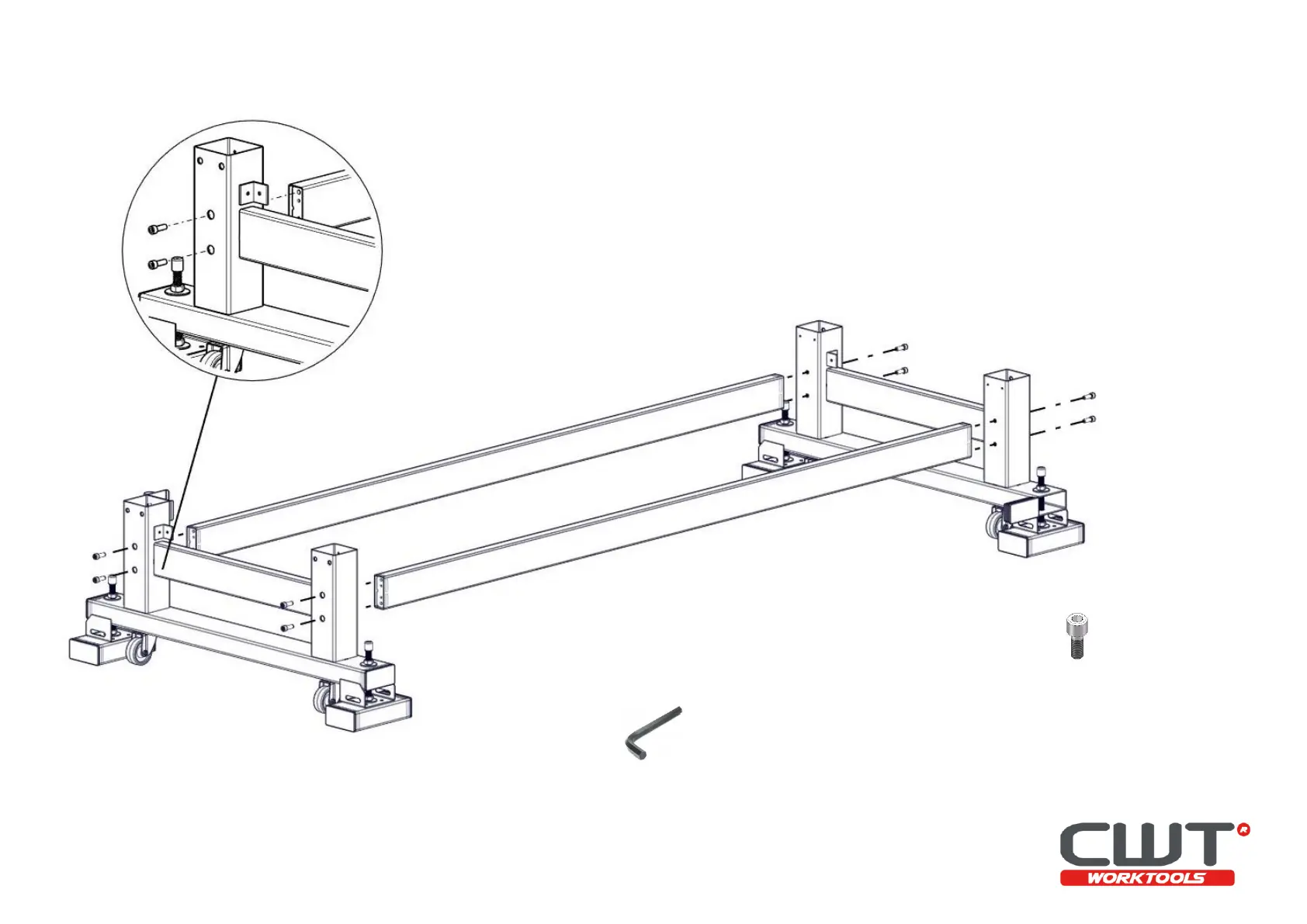

Mount the 100x40 Girder to the legs using M10x30, 4x2 pcs
Do not tighten to hard. (maximum 20Nm)
Allen key 8
