Appendix I – Adjusting linear bearings

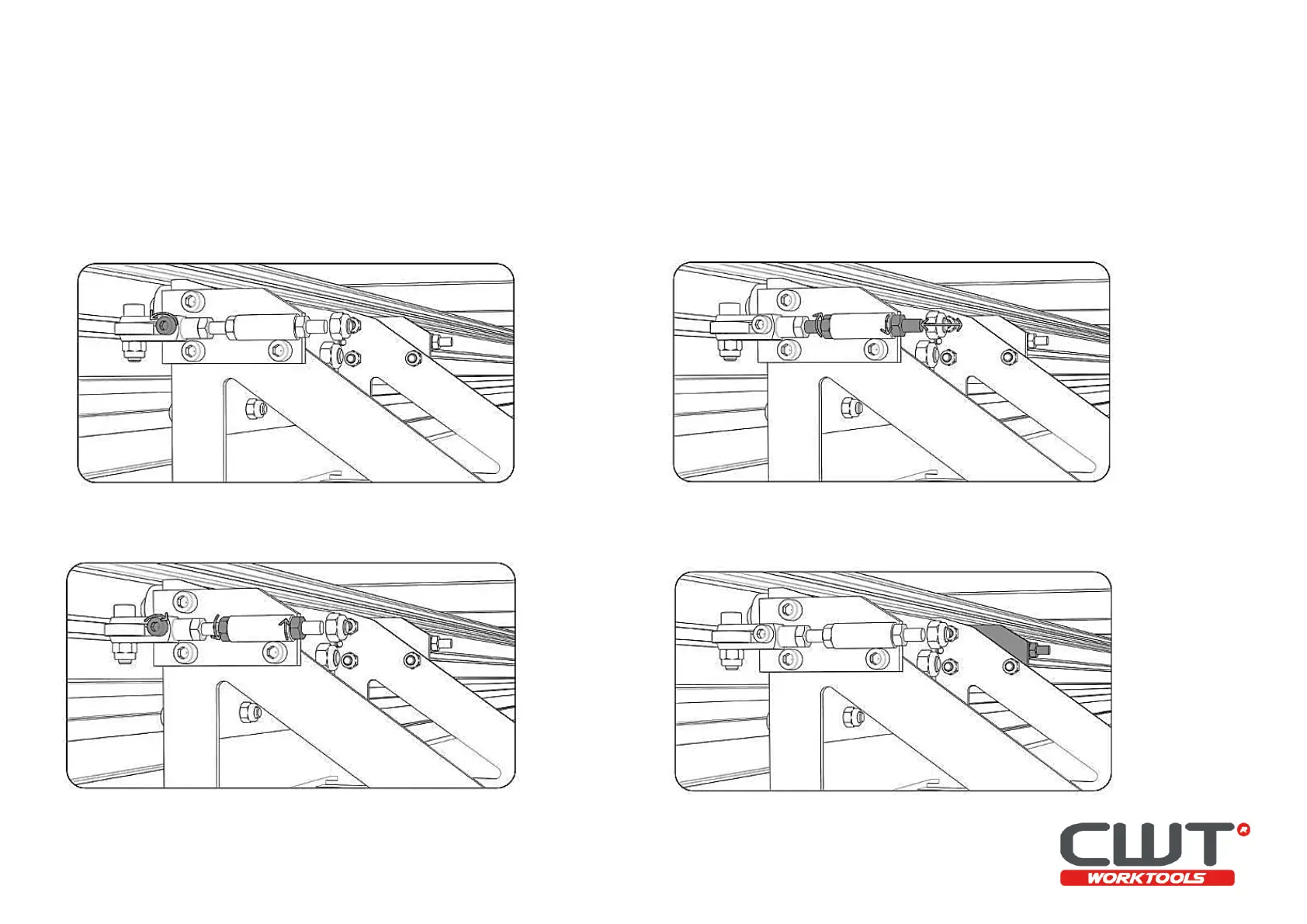

If the roller is to loose or to tight, adjust it as follows:
1. Release the M6 Allen screw.
2. Unscrew the M6 nuts and push the threaded rod in our out.
3. Tighten the screws and nuts.
4. Repeat steps 1-3 for the other bearing on the opposite side.
1 2
3 4
