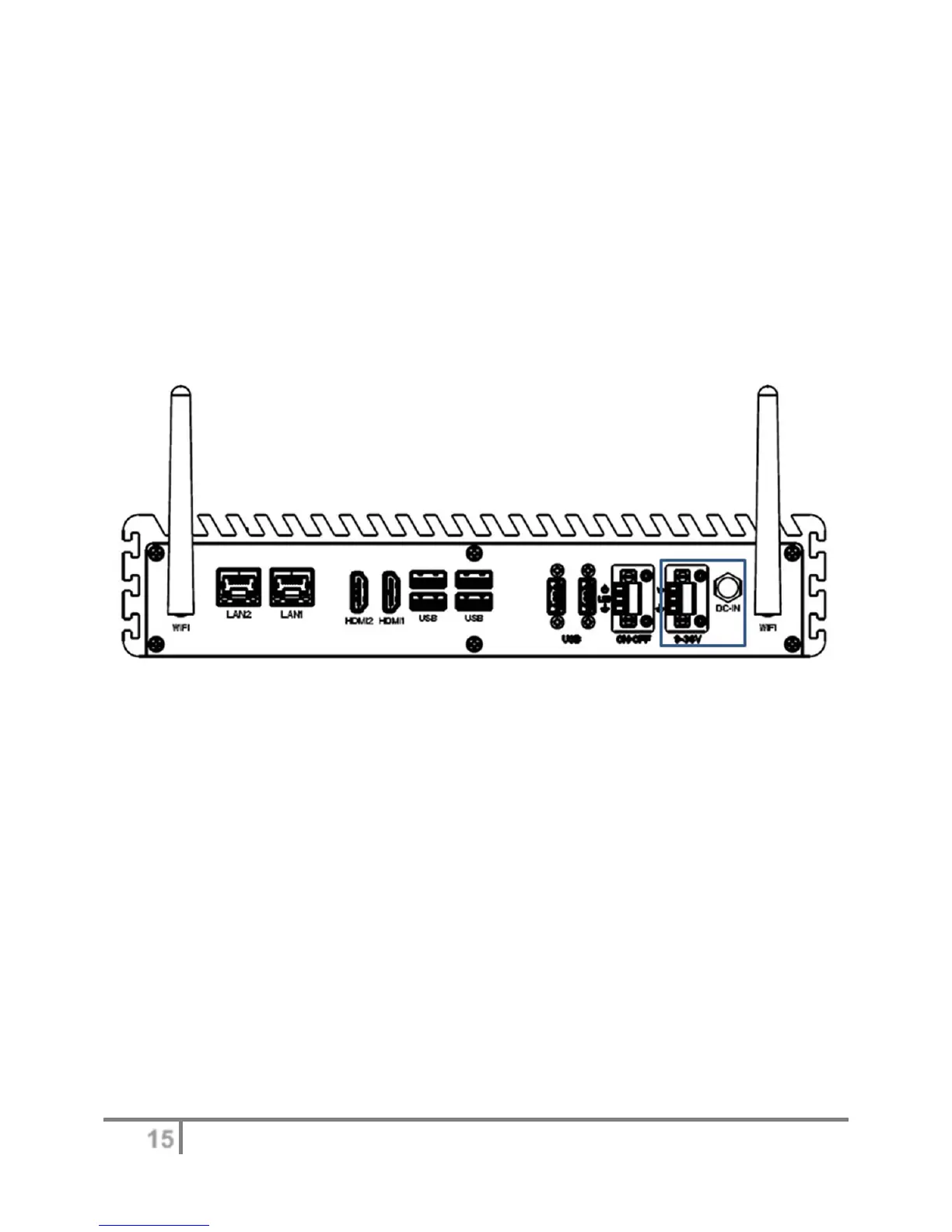

Figure5:BackPanelI/Oview(DC‐IN)
TheIPC‐R2ixseriesoffers9to36VDCpowerinputusingstandardnotebookDCJackØ
5.5mmx2.5mmand3PINPitch=3.81mmterminalblockconnectorfromtheexternal
PSU.
Figure6:BackPanelI/Oview(Power
‐Switch)
