17

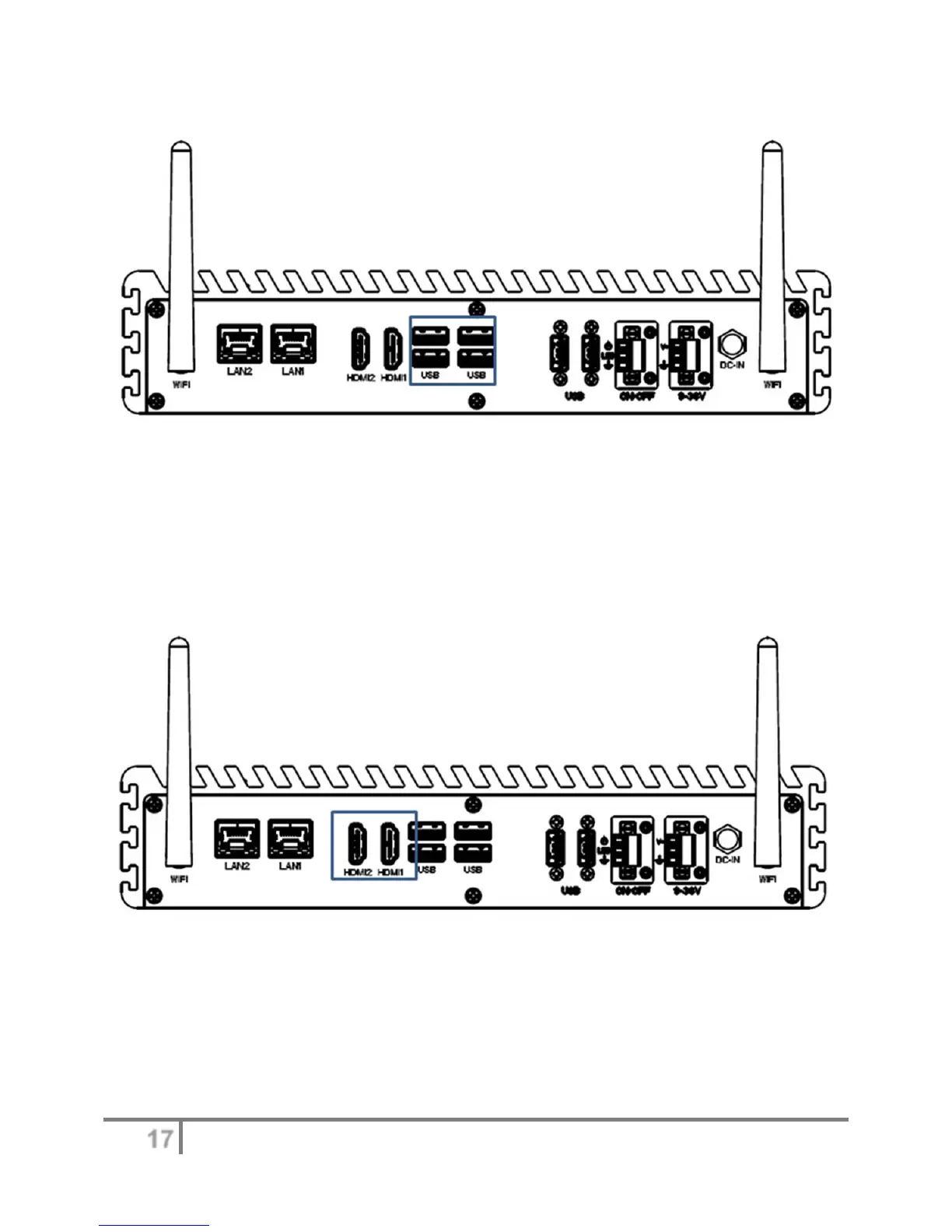

Figure8:BackPanelI/Oview(USB3.0)
The IPC-R2ix series comes with four USB 3.0 hosts on the back panel. The USB interface
supports Plug and Play, which enables the user to connect or disconnect a device whenever the
user want, without turning off the system. The hosts can be used for an external flash disk or
hard drive for storing large amounts of data. The user can also use these USB hosts to connect to
a keyboard or a mouse.
Figure9:BackPanelI/Oview(HDMI)
The IPC-R2ix series comes with two HDMI1.4a, resolution up to 4096x2304
Figure10:BackPanelI/Oview(LAN)
