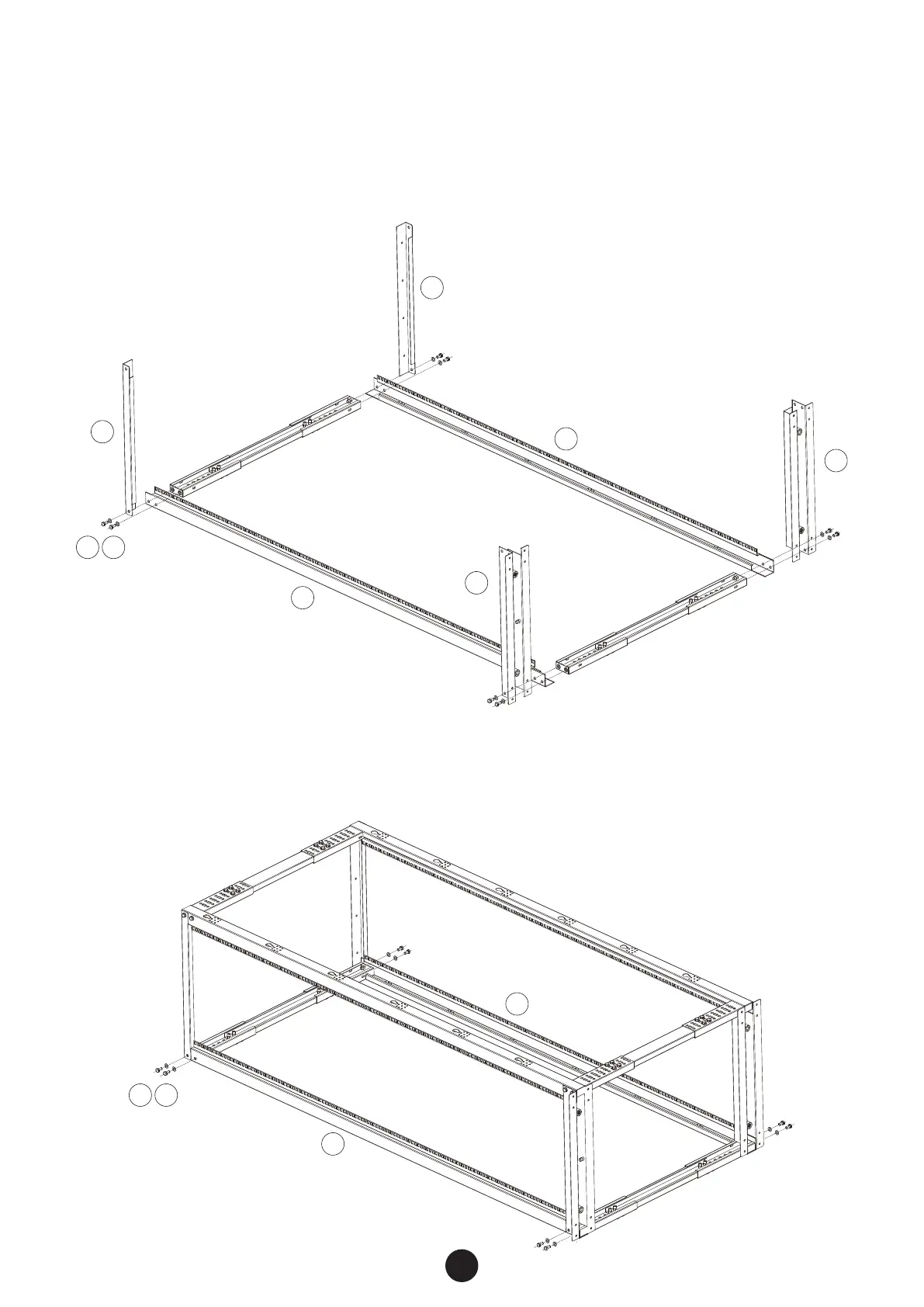

2. Using two of the beams assembled in step 1, line up one left and one right
vertical rails, followed by a base and top bracket and bolt together using M8
bolts with washers as shown below.
NOTE: To facilitate final assembly, it is recommended to hand-tighten the bolts first.
After all parts have been bolted together then tighten them firmly.
3. Using the remaining two beams assembled in step 1, line up the other set of
left and right vertical rails and fasten them to the base and top brackets as
shown below.
7 8
1
2
Assembled beam
Assembled beam
7
8
1
6
6
2
3
3
Assembled beam
Assembled beam
3
