Rack Assembly
Please check packaging contents before starting to assemble.

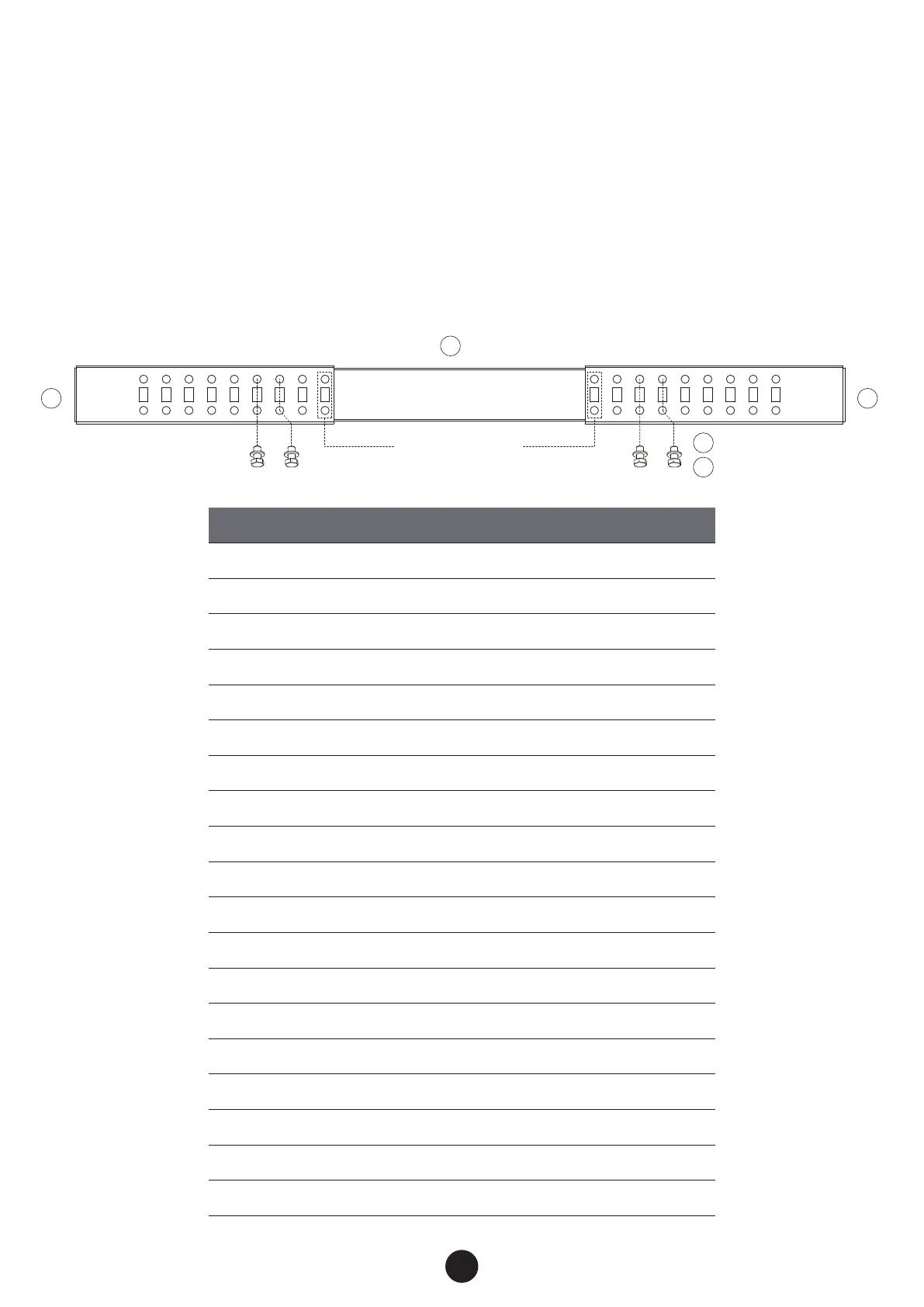

1. Assemble the top and bottom beams (4-total) as shown below. Refer to the
table below to identify the desired mounting depth (22” to 40” available) and
assemble corner and center sections at the corresponding index numbers
on each side. For example, for a 33 inch depth, bolt one corner section to
index #5 and the other corner section to index #6 onto the center section.
1
2
3
4
5
6
7
8
9
0 8
7
6
5
4
3
2
1
0
9
4
5
7
8
Index Numbers
4
Mounting Depth
22 in.
23 in.
24 in.
25 in.
26 in.
27 in.
28 in.
29 in.
30 in.
31 in.
32 in.
33 in.
34 in.
35 in.
36 in.
37 in.
38 in.
39 in.
40 in.
Index Numbers
0 and 0
1 and 0
1 and 1
1 and 2
2 and 2
2 and 3
3 and 3
3 and 4
4 and 4
4 and 5
5 and 5
5 and 6
6 and 6
6 and 7
7 and 7
7 and 8
8 and 8
8 and 9
9 and 9
2
