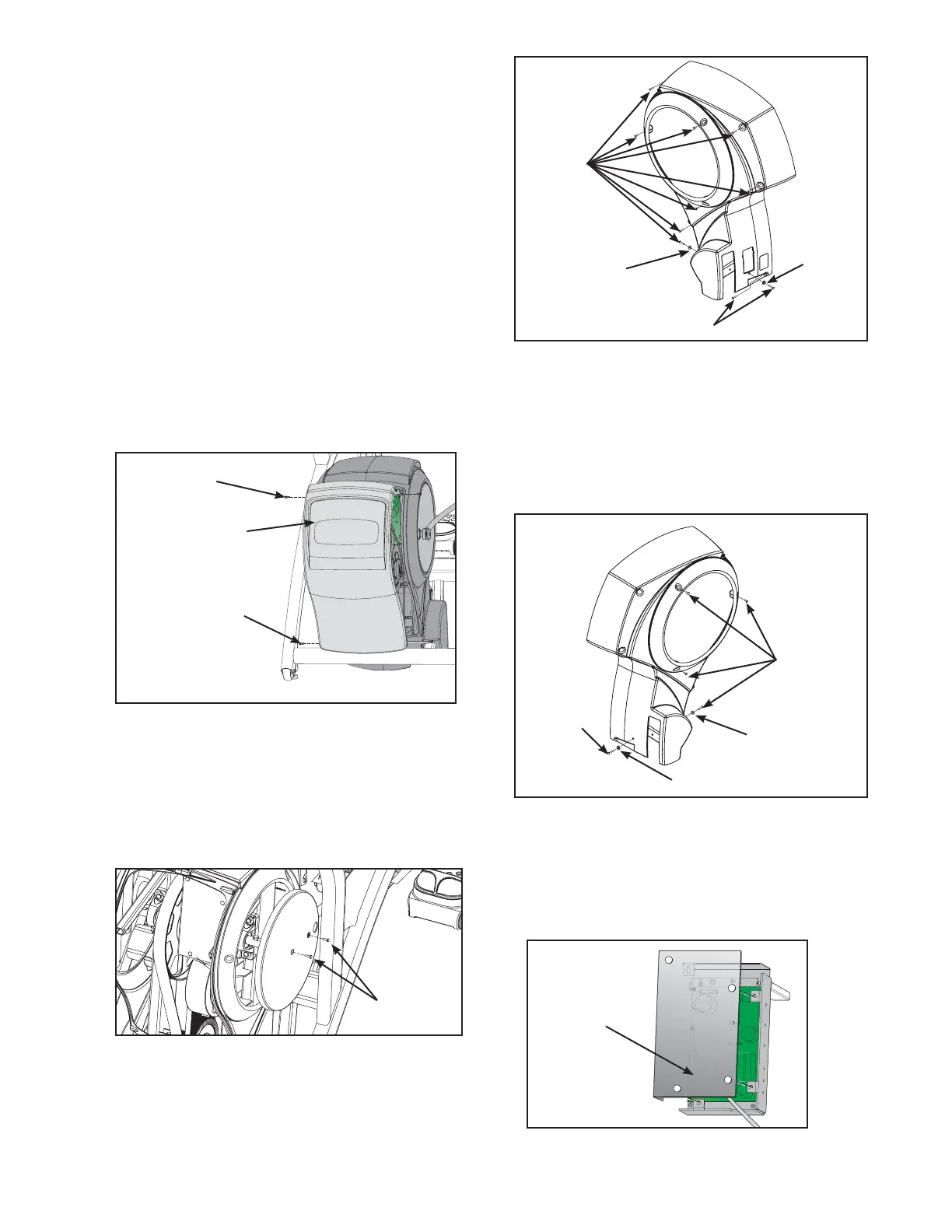

14. Remove the access cover.
A. Using a Phillips screwdriver, remove the two
lower screws (one screw on each side),
securing the access cover. See Figure 6.
B. Remove the two upper screws (one screw on
each side), securing the access cover.
C. Remove the Access cover.
Figure 6
Lower
Screw
Access Cover
Upper
Screw
12. Remove right foot plate arm assembly and right
pivot cover.
A. Repeat steps 7-9. See Figure 5.
13. Install right foot plate arm assembly and right
pivot cover.
A. Repeat steps 10 and 11. See Figure 5.
15. Remove the left and right crank covers.
A. Using a Phillips screwdriver, remove the screws
securing the crank covers and remove. See
Figure 7.
Screws
16. Remove the left shroud.
A. Using a long phillips head screwdriver remove the
ten screws and two washers securing left shroud
cover in place. See Figure 8.
Screws
17. Remove the right shroud.
A. Using a long phillips screwdriver remove five
screws and two washers securing right shroud
cover in place. See Figure 9.
Figure 8
Washer
Screws
Washer
Screws
Washer
Screw
Washer
Figure 7
Figure 9
Controller
Cover
18. Remove controller cover.
A. Pull out on the controller cover (it will snap
out). See Figure 10.
Figure 10
