Arc Trainer
®
Crank Cover
Kit No. 600AK023
Installation Instructions
NOTE: This instruction sheet describes how to replace
the crank cover on the Arc 600A, 610A, 619A,
620A, 629A, 630A, 639A.
TOOLS REQUIRED
• Phillips screwdriver
• 3/16 Allen wrench
1. Read and understand all instructions thoroughly
before installing this kit.

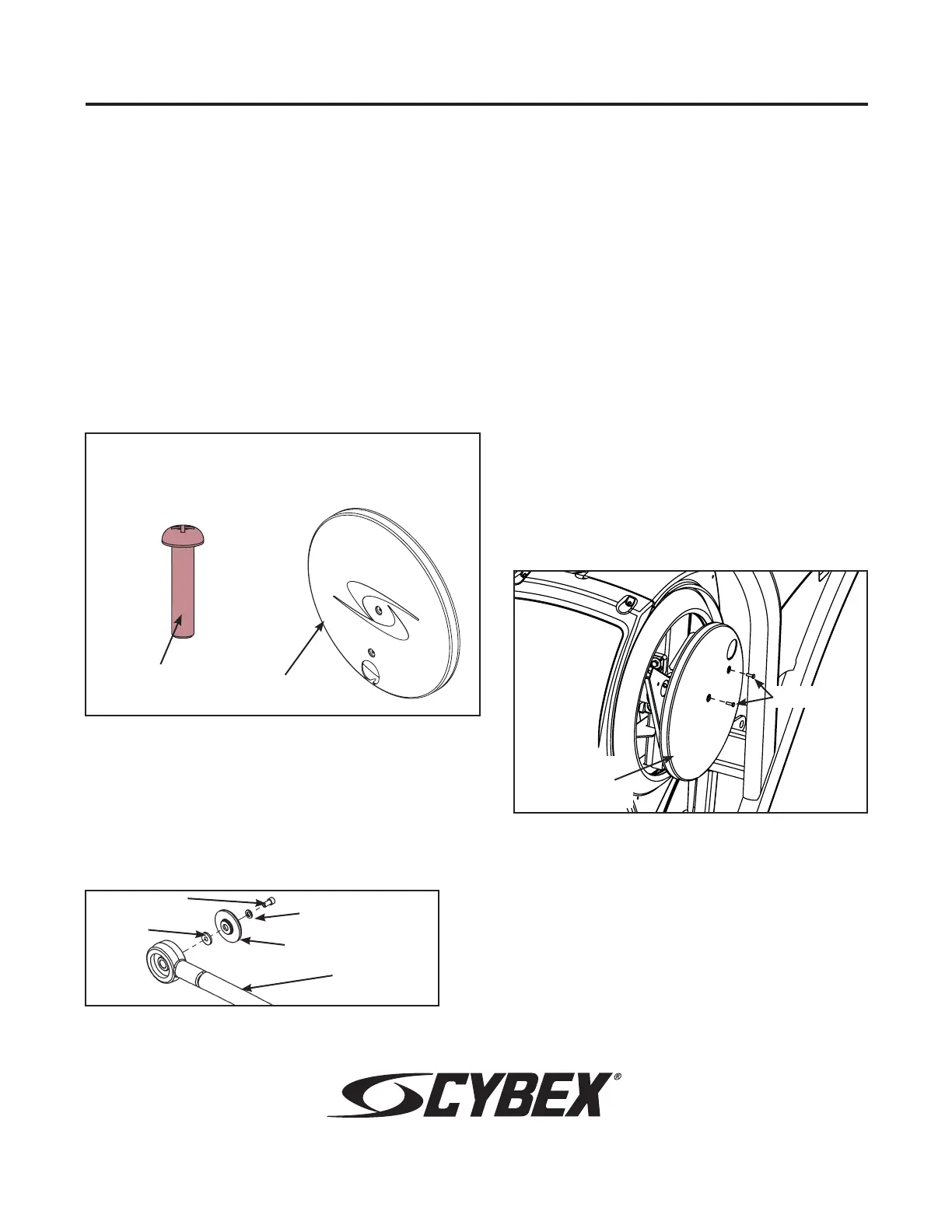

2. Verify kit contents. See Figure 1
3. Detach the linkage arm.
A. Using a 3/16” Allen wrench, remove the SHCS,
flat washer, cap and spacer securing the linkage
arm. See Figure 2.
Figure 1
B
A. Pan head phillips screw, 10-32 x .62 Blk,
HM582514 (2)
B. Crank cover, 600A-331 (1)
A
Figure 2
SHCS
Flat washer
Cap
Spacer
Linkage Arm
Crank
Cover
Screws (2)
4. Remove the crank cover.
A. Using a Phillips screwdriver, remove the
two screws securing the crank cover and
remove the crank cover.
NOTE: If unit has three screws, then remove
crank cover mounting bracket and discard
as this is no longer required.
Figure 3
5. Attach the new crank cover.
A. Place new crank cover (B) in position.
B. Using a Phillips screwdriver, attach the
two screws (A) securing the crank cover
in place. See Figure 3.
6. Secure the linkage arm.
A. Reinstall SHCS, flat washer, cap and
spacer that was removed in step 3A. See
Figure 2. NOTE: SHCS must be tightened
to a minimum of 100 inch-pounds.
7. Test unit for proper operation.
Cybex
®
and the Cybex logo are registered trademarks of Cybex International, Inc.
Arc Trainer
®
and its mark are registered trademarks of Cybex International, Inc.
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183 • www.cybexinternational.com • techhelp@cybexintl.com
techpubs@cybexintl.com • Copyright © 2008, Cybex International, Inc. All rights reserved • 600A-345 C • March 2008
B. Lay the linkage arm down on the frame.
NOTE: Place a cloth in between the linkage
arm and the frame to prevent scratches.
