Arc Trainer
®
600A/610A Front Access Cover
Kit No. 600AK024
Installation Instructions
NOTE: This instruction sheet describes how to replace
the front access cover on the Arc Trainer
600A/610A.
TOOLS REQUIRED
• Phillips screwdriver
1. Read and understand all instructions thoroughly
before installing this kit.
2. Verify kit contents. See Figure 1.
A. Front Access Cover Assembly
A1. Front Access Cover, (1), 600A-335
A2. Front Logo Decal, (1), DE-17317
A3. Sevice Schedule and Error Decal, (1),
DE-17322-X
B. Nylon Grommet, HF540200 (4) - not shown
C. Self-tapping Phillips Screw 8-16 X .75,
HT552515 (4) - not shown
3. Remove the existing access cover.
A. Using a Phillips screwdriver, remove the
two lower screws securing the access
cover.
B. Remove the two upper screws securing
the access cover. See Figure 2
C. Remove the access cover.

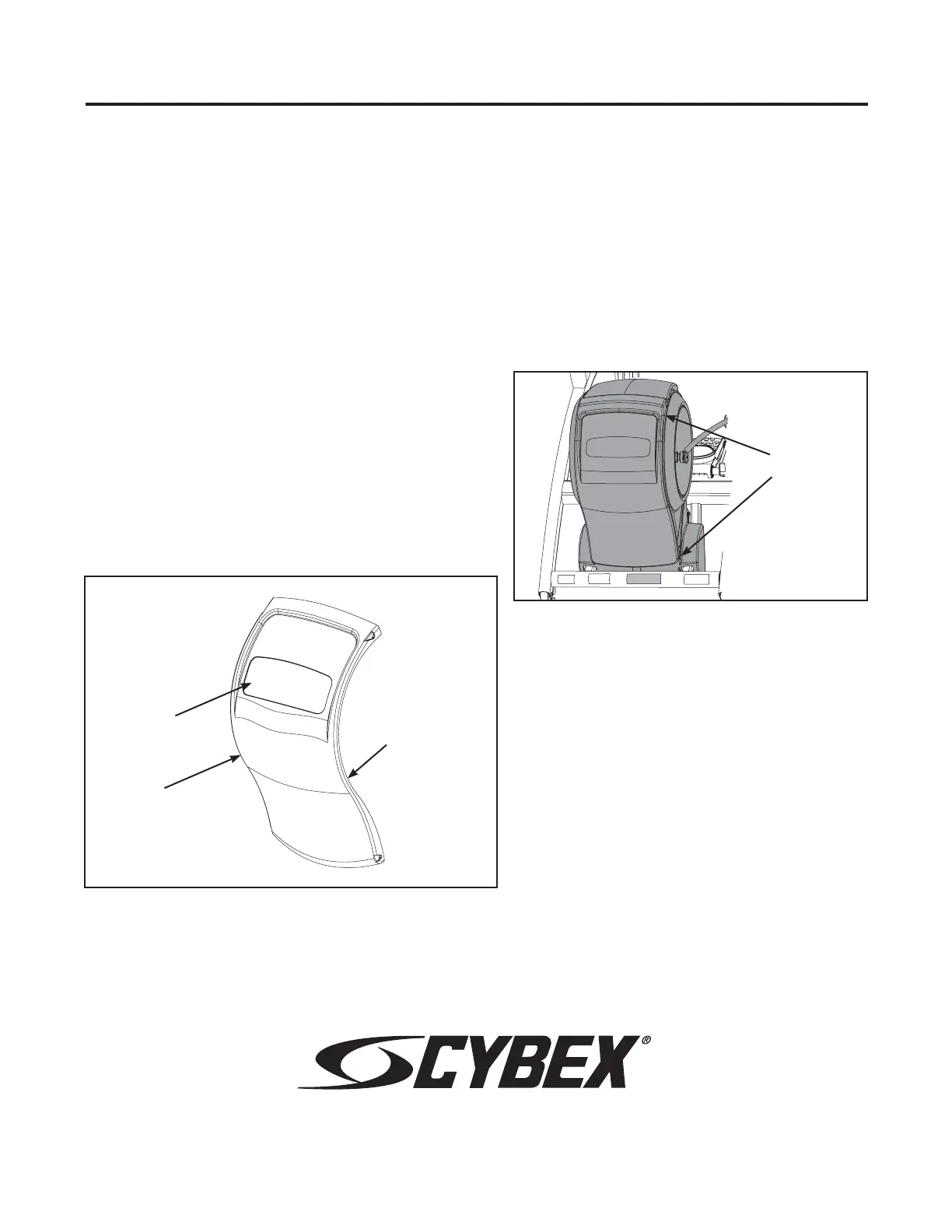

Figure 1
Figure 2
4. Attach the new access cover.
A. Install the four grommets and screws. NOTE:
Place grommets on the inside of the front
cover. Install upper two gromments/screws first
then the two lower gromments washers.
B. Tighten the four screws, using a Phillips
screwdriver. NOTE: Do not over tighten screws.
See Figure 2.
5. Test unit for proper operation.
Screw,
nylon
grommet
(4 each)
NOTE: Place
nylon grommet
on the inside of
cover.
A2
A1
A2
Cybex
®
and the Cybex logo are registered trademarks of Cybex International, Inc.
Arc Trainer
®
and its mark are registered trademarks of Cybex International, Inc.
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183 • www.cybexinternational.com • techhelp@cybexintl.com
techpubs@cybexintl.com • Copyright © 2008, Cybex International, Inc. All rights reserved • 600A-356 A • March 2008
