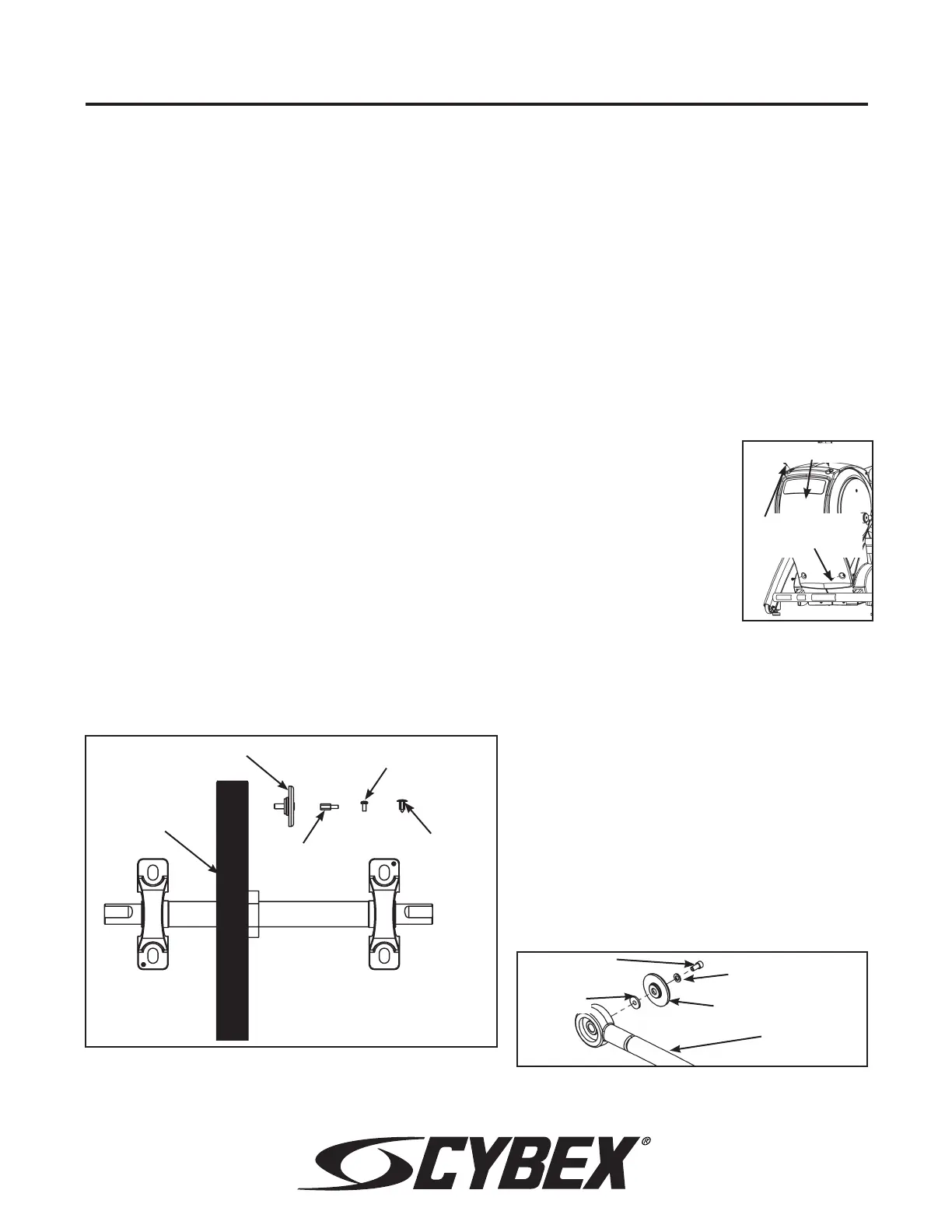

Arc Trainer
®
Pulley and Crank Shaft
Kit No. 600AK002
Installation Instructions
NOTE: This instruction sheet describes how to replace the
crank shaft in the 600A/610A Arc Trainer.
TOOLS REQUIRED
Cloth or rag (2) • 3/8” Nut driver or socket wrench
Phillips screwdriver 7/16” Socket wrench
1/8” Allen wrench 9/16” Socket wrench
3/16” Allen wrench 9/16” Open end wrench
Loctite #242 • Torque wrench
NOTE: A cordless drill with a Phillips bit is recommended
but not required.
If tension belt needs to be reset:
1/2” Socket wrench • 1/2” Open end wrench
3/8” Square hole torque wrench
1. Read and understand all instructions thoroughly
before installing this kit.
2. Verify kit contents.
A. Remove all packing and shipping supports.
B. Verify kit contents. See Figure 1.
C. Carefully inspect the pulley and crank shaft
assembly for damage.
4. Remove the access cover.
A. Using a Phillips screw-
driver, remove the four
screws and four
washers securing the
access cover. See
Figure 2.
B. Remove the access
cover.
! WARNING: Flywheel may be hot. Wait until it
cools before servicing.
5. Detach the connecting rods.
A. Using a 3/16” Allen wrench, remove the
SHCS and spacer securing the linkage
arm. See figure 3. NOTE: Figure 3 shows
the contents of the linkage cap kit that will
be installed in step 23A.
B. Lay the linkage bar down on the frame.
NOTE: Place a cloth in between the linkage
arm and the frame to prevent scratches.
Figure 1
Figure 2
Screw/washer
(4 each)
3. Elevate the unit and disconnect the power
source.
A. Elevate the unit to a minimum of level 7 incline.
B. While the unit is elevated, turn the main power
switch to the off (0) position and unplug the
power cord from the power outlet.
! WARNING: Disconnect the power cord before
continuing this procedure. Keep wet
items away from inside parts of the
unit. Electrical shock could occur
even if the unit is unplugged.
Figure 3
SHCS
Flat washer
Cap
Spacer
Linkage Arm
Access Cover
Loctite #242 (not shown)
Linkage Cap Kit (1), 600AK012
Pulley and Crank
Shaft Assembly
(1), 600AK002
Standoff (4),
HP547012
Screw (4),
HJ542510
Finned
Fastener (4),
PP660010
