This Side
of Bracket
This Side
of Bracket
Top Screw
Bottom Screw

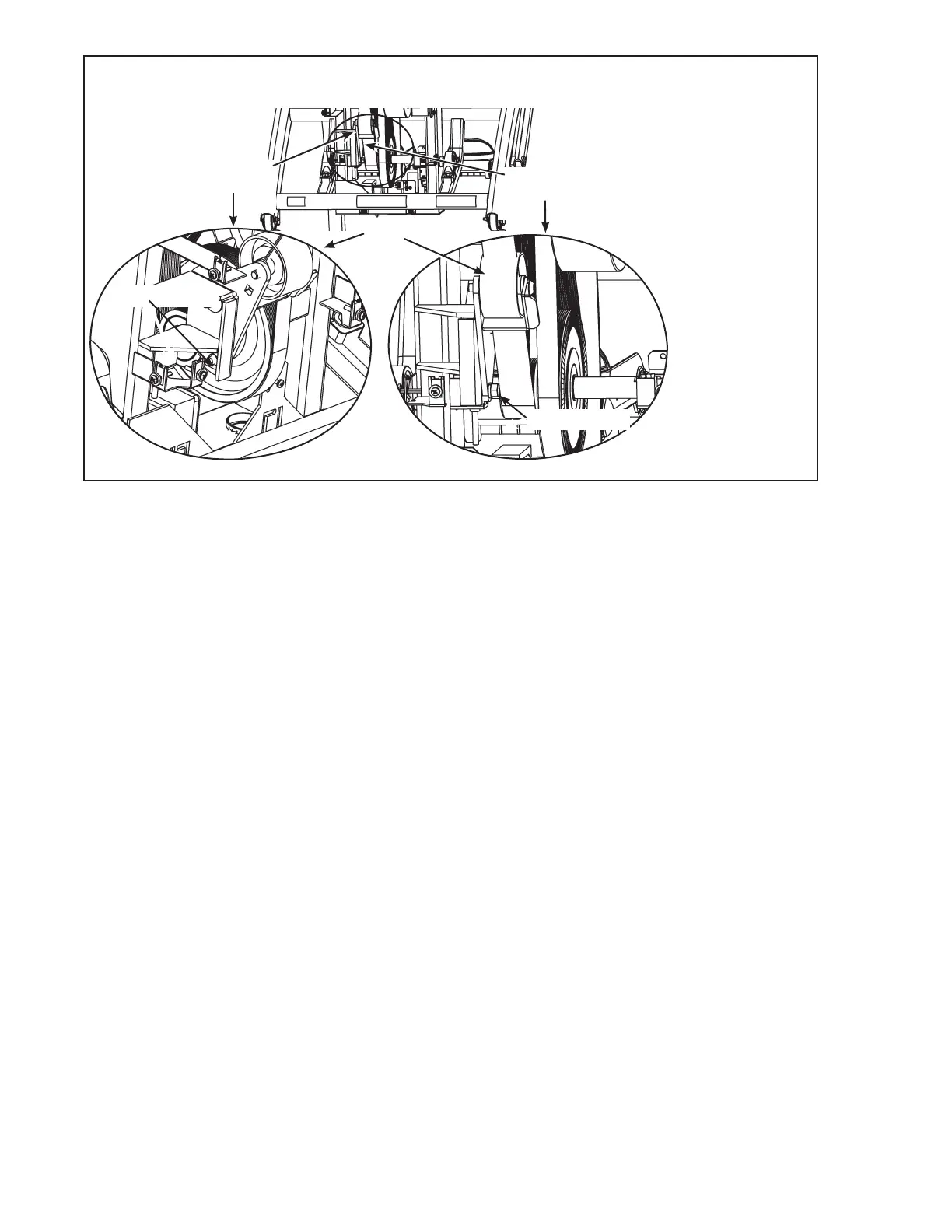

Figure 13
NOTE: Do not adjust the
idler pulley unless it is
obvious that your belt is
not tensioned properly.
Idler
Pulley
19. Attach the crank arm disk supports.
A. Place #242 loctite on the screws securing crank
arm.
B. Using a Phillips head screwdriver, attach the
screw securing each crank arm disk support in
place. See Figure 6.
20. Attach the crank covers.
A. Place each crank cover in position.
B. Place #242 loctite on the screws securing crank
arm.
C. Using a Phillips head screwdriver, attach the
three screws securing each crank cover in place.
See Figure 5.
21. Attach the side covers.
A. Place each side cover in position in the rubber
gasket.
B. Using a Phillips head screwdriver, tighten the six
screws and six washers securing each side cover.
See Figure 5.
22. Secure the connecting rods.
A. Attach each connecting rod to each crank using
the 600AK012 Linkage Cap kit. Follow the
instructions in the kit.
23. Attach the access cover.
A. While being sure not to pinch any cables, hold
the access cover in place. See Figure 2
B. Using a Phillips head screwdriver, tighten the four
screws and washers securing the access
cover. See Figure 2.
24. Test unit for proper operation.
