Cybex Eagle 11000 Chest Press Owner’s Manual
Assembly
Page 1
4 - Assembly
Tools Required
7/32” Allen wrench•
3/4” Allen wrench•
9/16” Wrench•
External snap ring pliers•
Phillips screwdriver•
Medium weight automotive engine oil•
Torque Wrench•
NOTE: Two people will be required for this procedure.
NOTE: It is the responsibility of the facility owner/owner
of the equipment to ensure that there is appropriate
clearance around each machine to allow for safe
use and passage.
1. Read and understand all instructions thoroughly
before starting any of the procedures listed on this
instruction sheet.
2. Verify you have received the appropriate confi guration.
Verify that you received the correct color machine that you ordered.A.
Verify you received weight plates and weight plate decals.B.
Verify you received the Cybex Eagle Chest Press Owner’s Manual. C.
Verify you received the warranty sheet.D.
3. Move to desired location.
Note the diminsions of the machine:A.
Idle - 54 L x 58 W x 72 H inches
137.16 L x 147.32 W x 182.88 H cm
In use - 54 L x 58 W x 72 H inches
137.16 L x 147.32 W x 182.88 H cm
Machine Weight with weight stack - 736 lbs. (333.84 kg)
Determine if you can move your machine through the required doorway(s).B.
If the machine fi ts through the doorway(s), move machine to desired location and skip to step 5. C.
If weight stacks need to be installed proceed to step 6.D.
If the machine does not fi t through the door-way(s) then see step 4. E.
4. Doorway Instructions
NOTE: If your machine fi ts through the doorway then skip step 4.
If your machine does not fi t through the doorway, then perform step 4.
Carefully remove each (standard) cone-shaped shipping support using a 3/4” socket or wrench.A.

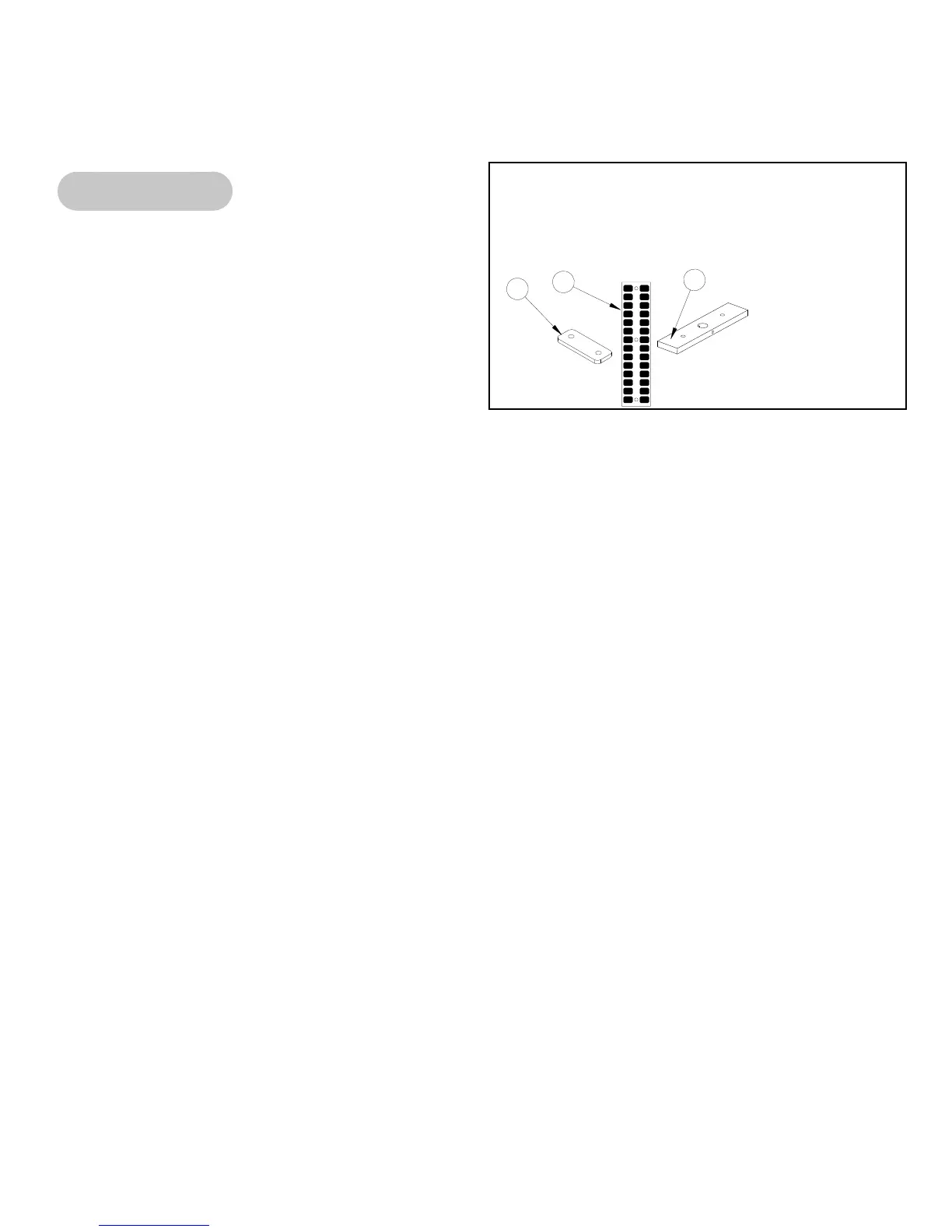

1 4 11090-392 FOOT PAD
2 1 12000-560 DECAL, WEIGHT PLATE (30 - 290)
3 14 4000C101 WEIGHT STACK PLATE
ITEM QTY PART NO. DESCRIPTION
3
130.5
270
121.5
112.5
103.5
94.5
85.5
31.5
58.5
49.5
40.5
76.5
67.5
22.5
13.5
290
130
170
190
230
210
150
250
50
90
70
110
30
2
1
To Next Page
