Cybex 17000 Jungle Gym Owner’s Manual
26

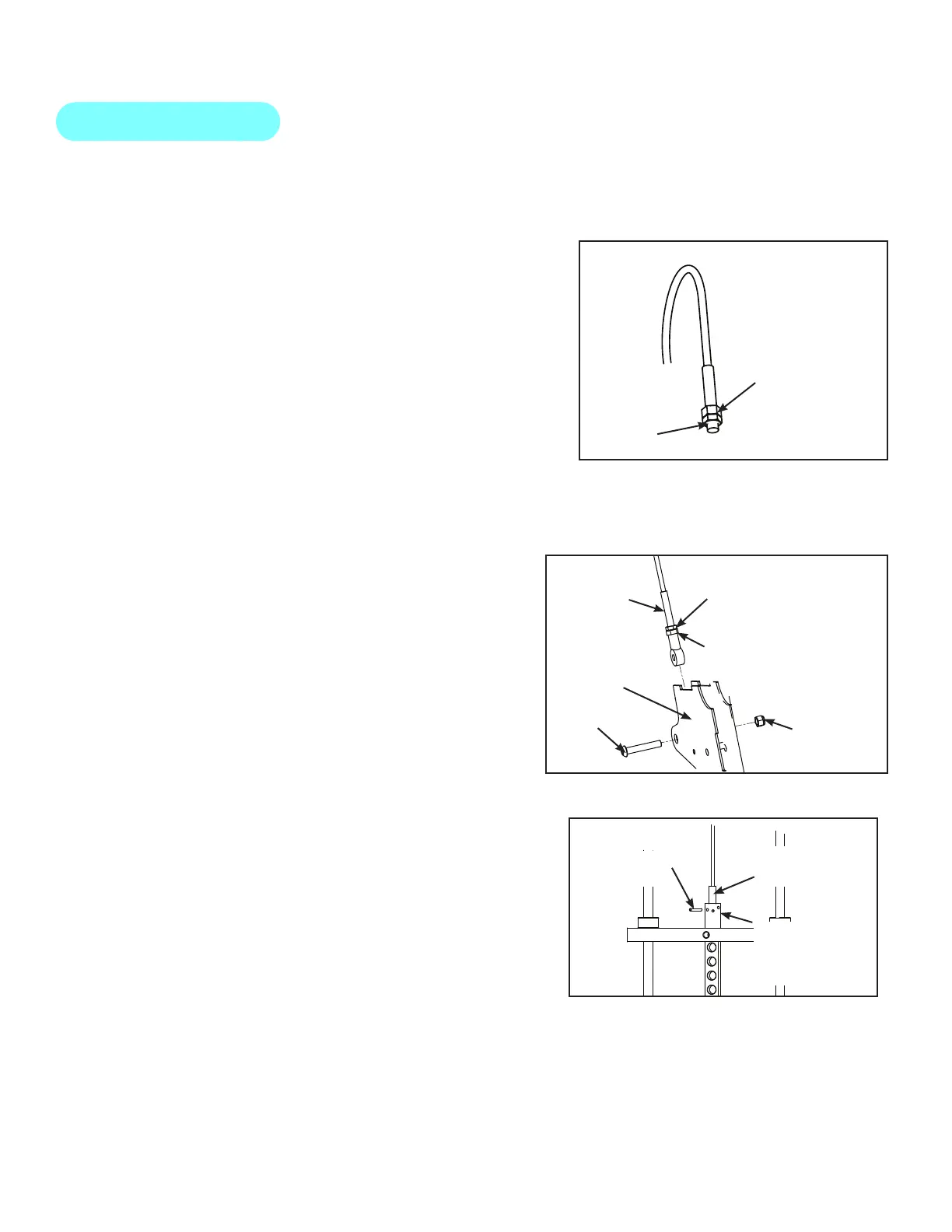

Cable Adjustment
Three types of cable tension adjustment are used on Cybex Strength Systems:
1. Jam Nut Adjustment - This type uses a jam nut and a tension adjustment nut at the cable cam
end as the primary adjustment. The other end of the
cable usually contains a roll pin adjustment. See Figures
6 and 7.
2. Rod End Adjustment - This type of adjustment
contains a socket head cap screw (SHCS) securing
a cable rod end bearing to the machine. Primary
adjustment is by turning the rod end bearing. The
other end of the cable usually contains a roll pin cable
adjustment. See Figures 7 and 8.
3. Roll Pin Adjustment - This type of adjustment utilizes a
roll pin and series of holes in the weight stack top weight
connector. See Figure 8.
Figure 6
Tension
Adjustment
Nut
Jam
Nut
Figure 7
Cable
End
Jam Nut
Cable Rod End
Bearing
SHCS
Frame
Nylon
Locknut
Figure 8
Cable
End
Top
Weight
Connector
Roll
Pin
