Cybex Owner’s Manual
11
If Then
If machine needs
weight stacks
removed before
moving to desired
location.

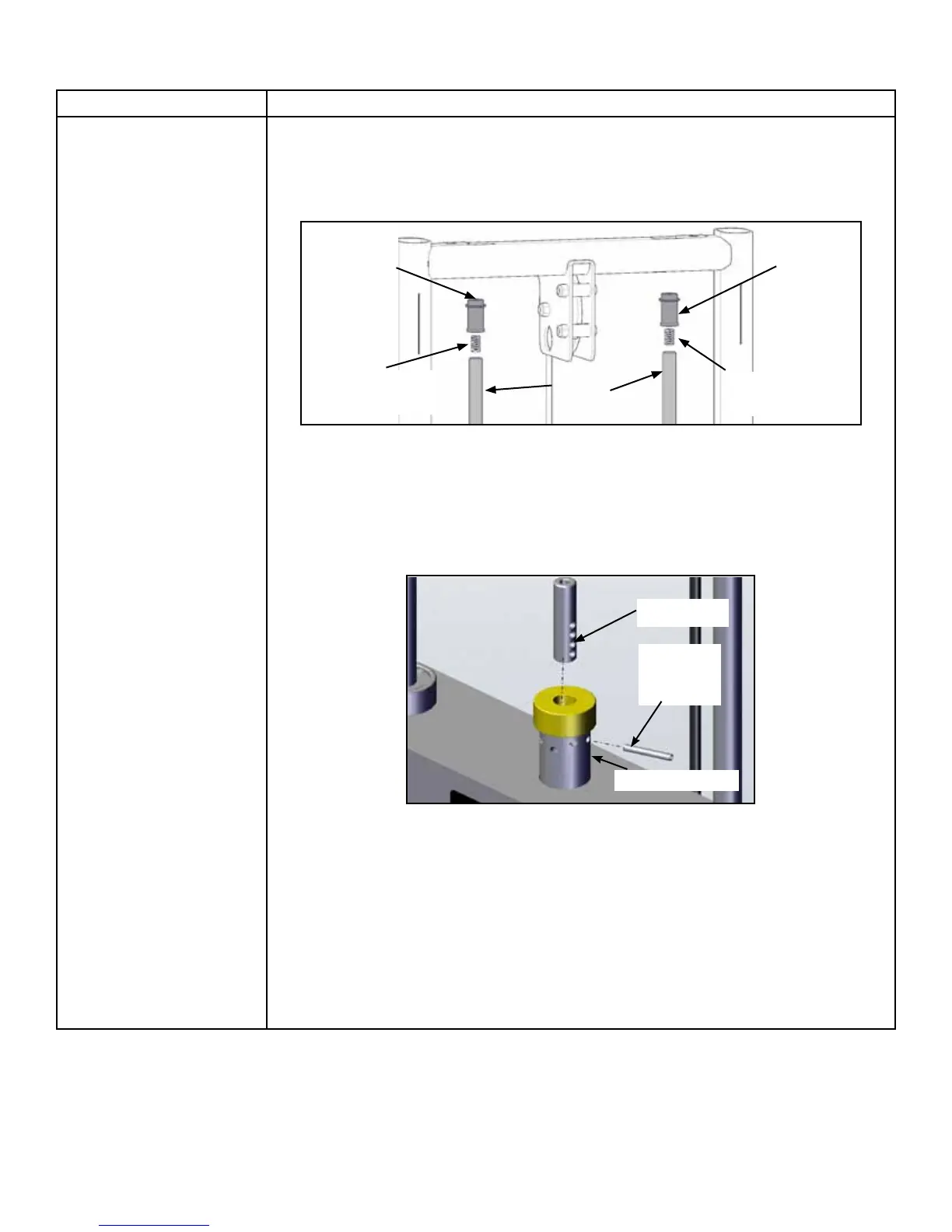

4. Remove guide rod caps. Guide rod cap contains a compression
spring that will y if grasp is not released slowly. Slide spring loaded
guide rod cap down guide rod until cap is clear of frame. Slowly
release grasp of guide rod cap and remove.
Compression
Spring
Guide
Rods
Guide
Rod Cap
Compression
Spring
Guide
Rod Cap
5. Remove guide rod cap and springs.
6. Repeat procedure for opposite guide rods.
7. Remove spiral pin securing cable end to top weight using a 3/16”
pin punch and hammer.
Cable End
Top Weight
Spiral
Pin
8. Remove lifting post.
9. Remove weight plates
10. Move machine to desired position.
11. Remove the four shipping cones using a 3/4” socket or wrench.
12. Attach foot pads to each foot of frame.
To Next Page
