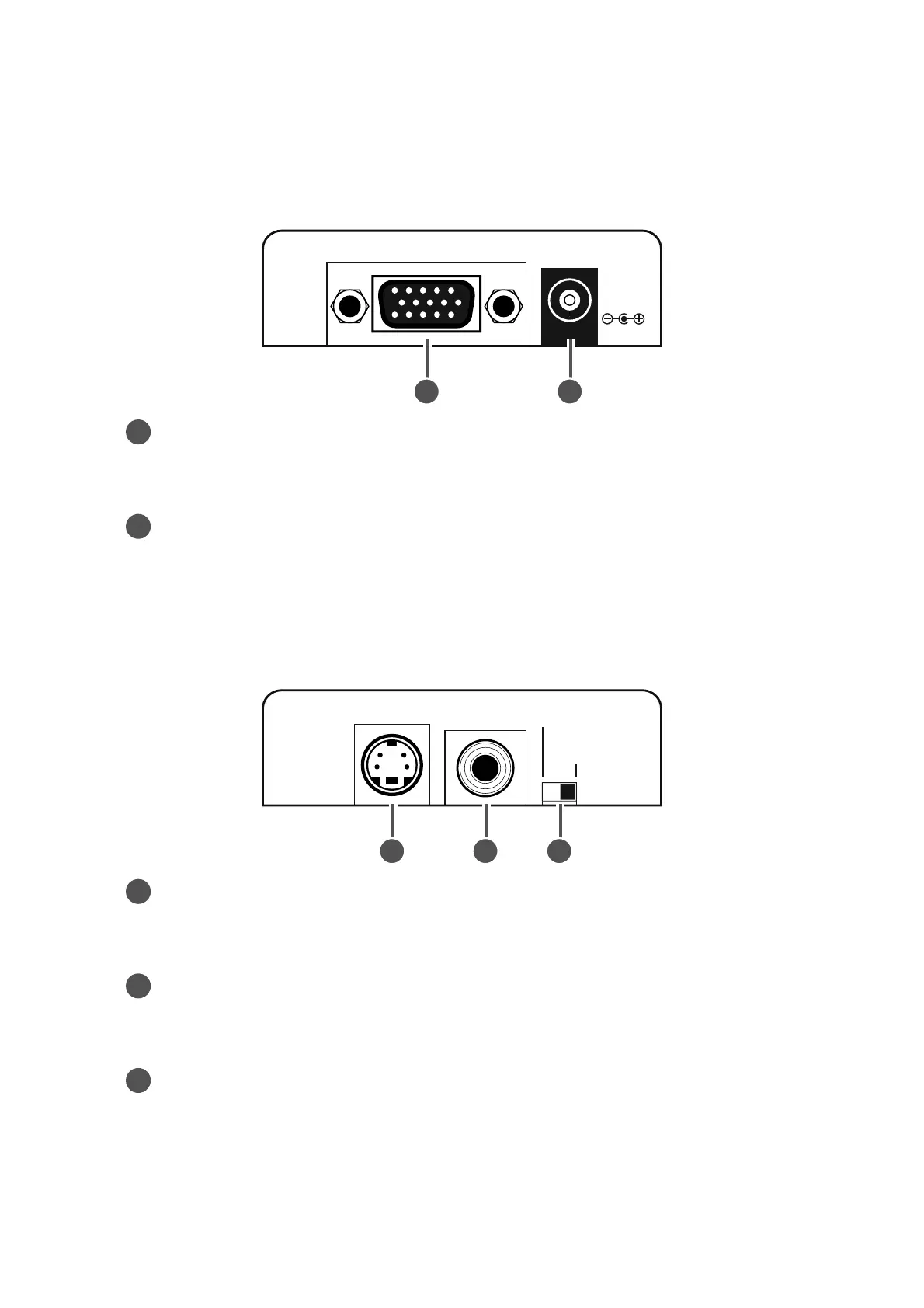

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
PC
INPUT
DC
5 V
1 2
1
PC INPUT
Connect the VGA input port to the VGA output port of your source
equipment such as computer with D-Sub 15pin cable.
2
DC 5V
Plug the 5V DC power supply into the unit and connect the
adaptor to AC wall outlet.
6.2 Rear Panel
OUTPUT
S-VIDEO VIDEO
UNDER SCAN
OVER SCAN
1 2 3
1
S-VIDEO OUT
Connect the S-Video output port to the S-Video input port of
analog monitor, Projector or TV.
2
VIDEO OUT
Connect the Composite Video output port to the Composite
Video input port of analog monitor, Projector or TV.
3
UNDERSCAN /OVERSCAN
Switch in between the Underscan/Overscan of the output image
especially when connecting to different monitor/TV.
