Pin-1 : LED (positive, longer leg)
Pin-2 : Servo motor (signal)
Pin-3V : Servo motor (voltage)
Pin-GND : Servo motor (ground),
LED (negative, shorter leg)
6

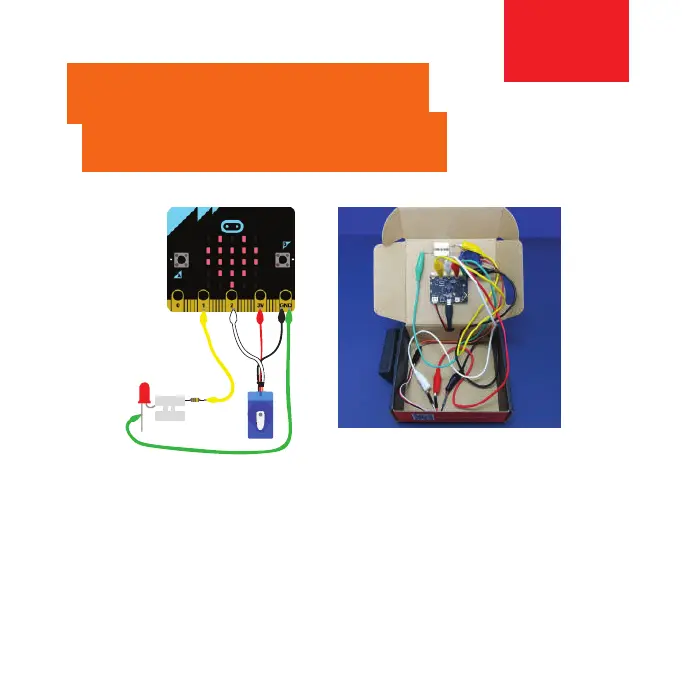

Here's the complete
circuit diagram!
