Product User’s Manual –SN-E18-B03N1
1. INTRODUCTION AND OVERVIEW
This Digital Infrared Sensor offers simple, user friendly and fast obstacle detection using
infrared. This is an Digital Infrared Sensor. This product is used during the reflection of IR
by obstacles. It is widely to use in various type of industry such as spinning and weaving,
mechanical, iron and steel, chemical,electric power, security and so on.This product features
include:

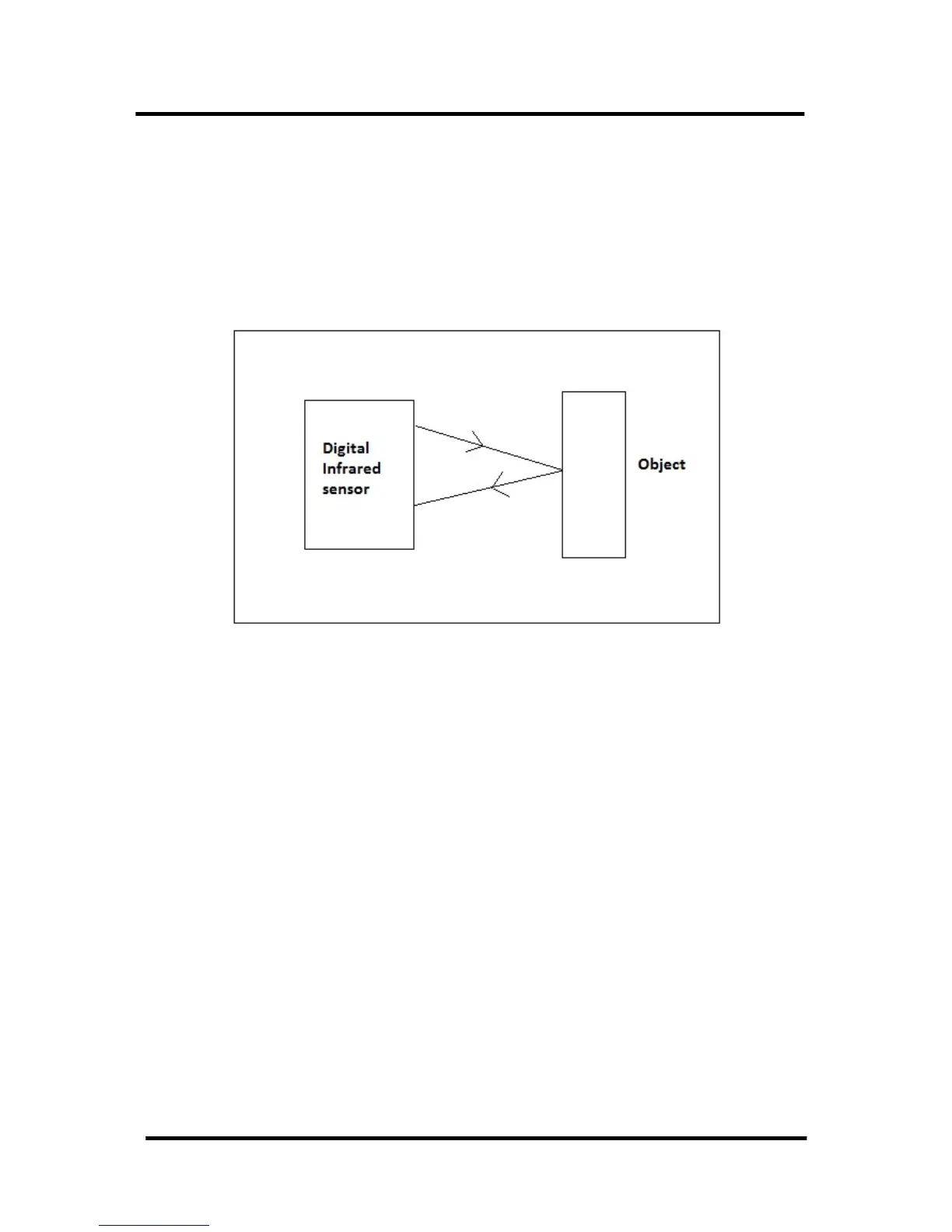

Figure 1.1 The reflection of Digital Infrared Sensor on the object
● Cylindrical, diffuse reflectance
● *NPN output
● Three-wire.
● **6V-36V powered, low current consumption, less than 300mA.
● ***Obstacle detection up to 30cm.
● Adjustable sensing range (0cm-30cm).
● Small size makes it easy to assembly.
● High precision, waterproof, protect corrosion, resist of light.
● Widely useful for robot,interactive media,industrial assembly,etc.
* Though it is NPN output, but internally it is being pull up the power pin.
** Test show it can be powered as low as 5V.
*** Longer distance can be achieve if power voltage is increase.
