APPENDIX A. Line connections : un-balanced and balanced

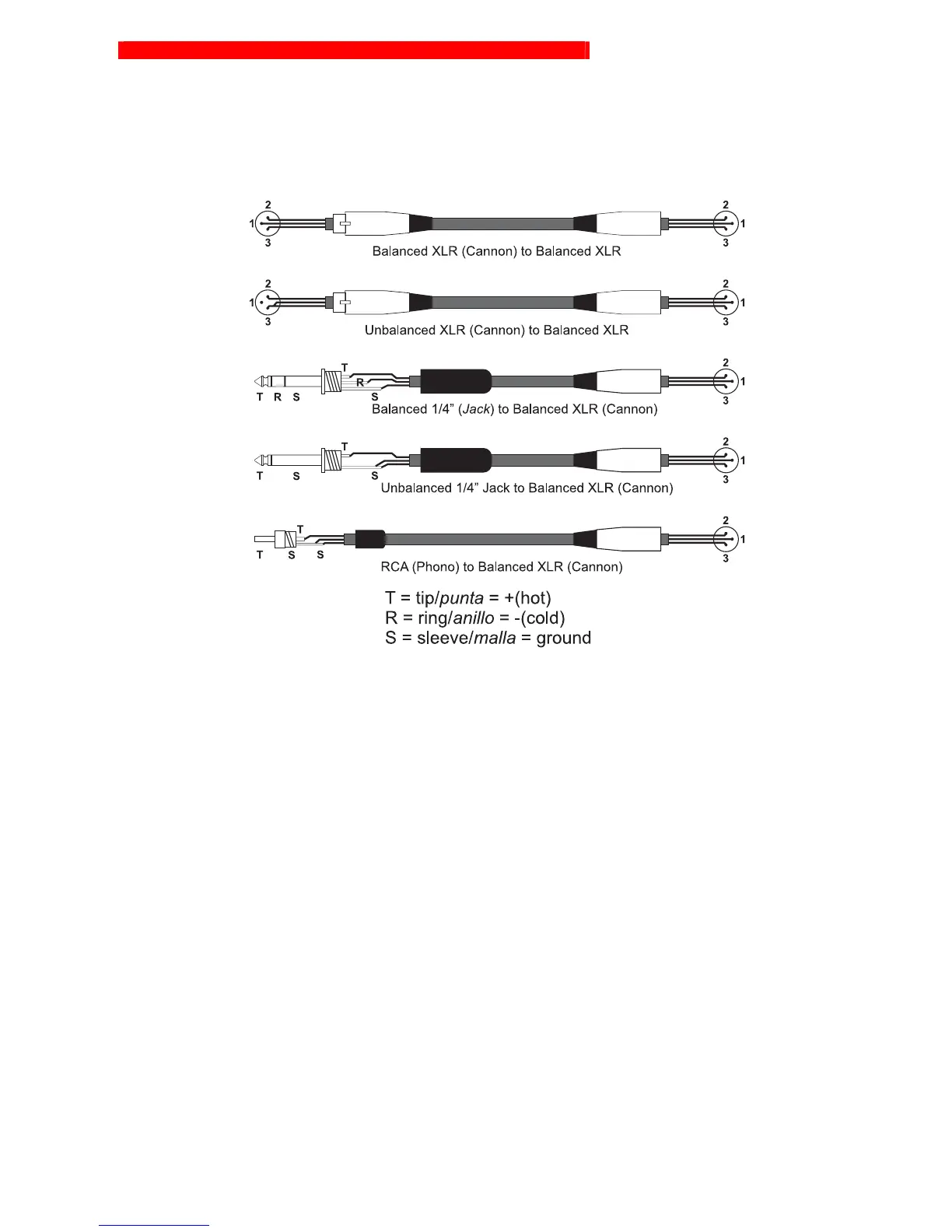

The graphs that follow show the recommended connection with different types of connectors to balanced processor or amplifier
inputs. The connectors on the left-hand side come from a signal source, and the ones on the right hand side go to the inputs of the
processor or amplifier. Note that on the un-balanced connectors on the left-hand side, two terminals are joined inside the connector. If
hum occurs with balanced to balanced connections, try disconnecting the sleeve (ground) on the input connector. Note that the
illustrations show what should be connected to what, but that pin locations on an actual XLR connector are different. Also, pin 2 hot is
assumed on XLR connectors.
