AX-2RF12V / AX-2RF15V Array Frame.

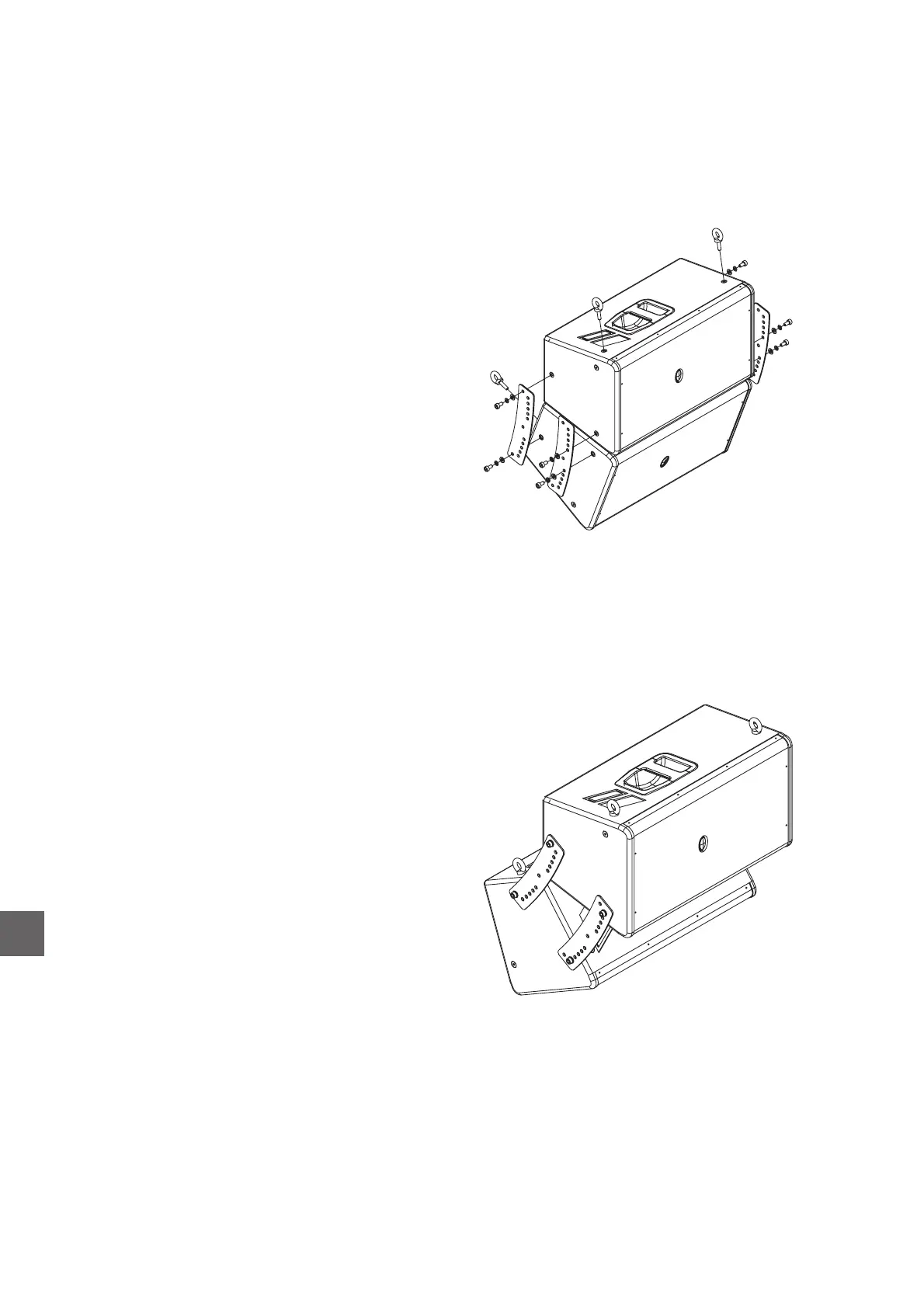

Mounting instructions.
1.- Flip the speakers upside down. Remove the
existing speaker screws and rubber feet. Replace
the screws used to attach the rubber feet to keep
air from escaping.
2.- Position the speakers in the desired splay
angle.
3.- Attach the joining plates to the enclosure using
the holes on the concave side for the rear and the
holes on the convex side to determine the angle.
The holes closest to each other position the
enclosures side to side, forming a 20º angle
between them. Advancing toward the exterior
alternate holes on each side increment the angles
in 5º steps. It is recom-mended that the joining
plate be placed as symetrically as pos-sible. Flat
washers should be placed adjacent to the joining
plates, followed by the lock washer and finally the
bolt.
4.- Slowly flip the speaker assembly so that the
tops of the speakers are facing up.
5.- Screw the joining plates to the enclosures.
6.- Screw 2 eyebolts into the two holes on the side
of the enclosure and the other 2 into the rear of
the other enclosure.
7.- Suspend the enclosures using the eyebolts.
Package contents
4 joining plates, 8 M10x30 screws, 8 Grower
(split) M10 lock washers, 8 M10 flat washers, 4
M10 eyebolts, 1 number 8 Allen (hex) wrench, 1
number 6 Allen wrench.
