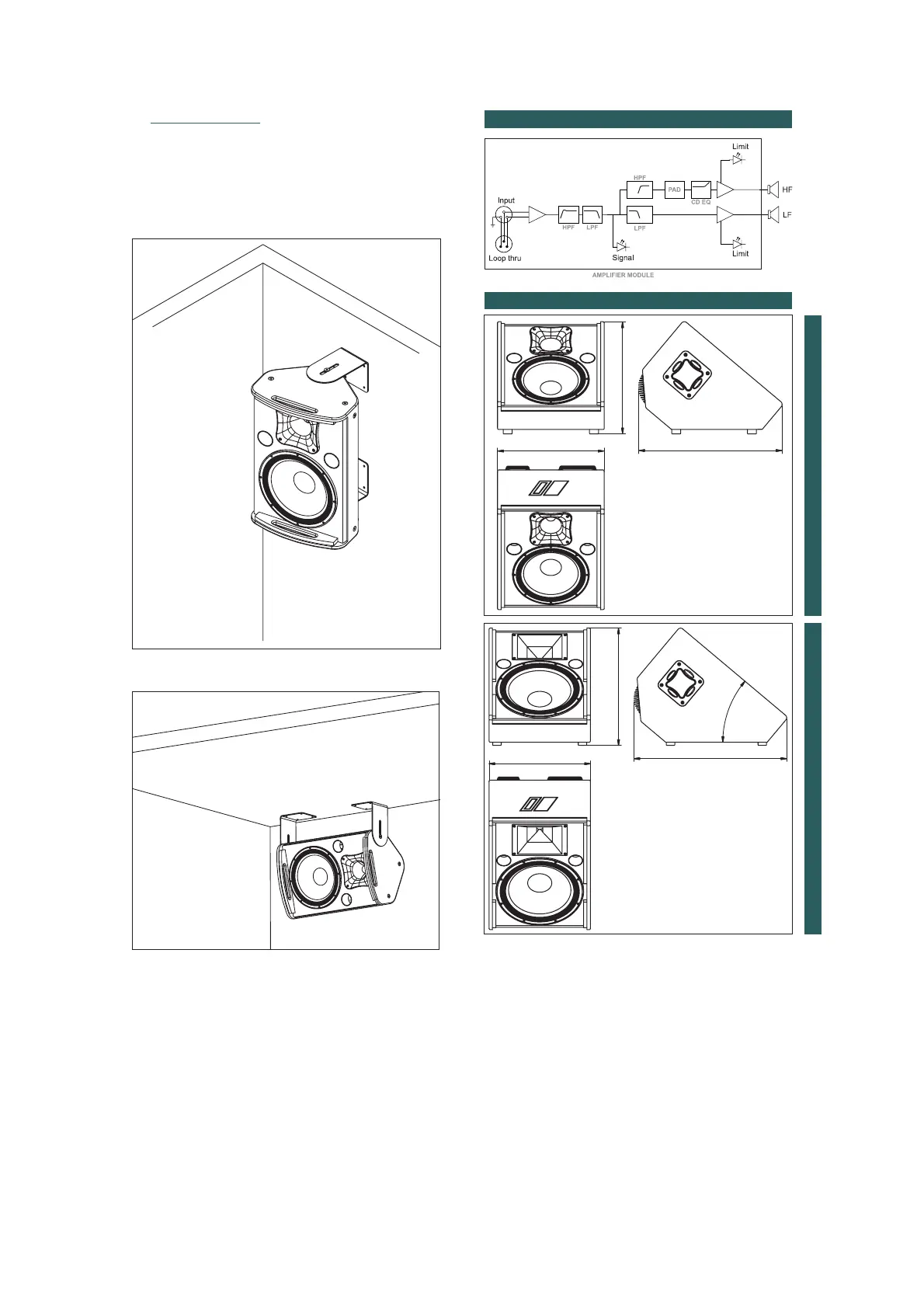

Manual del usuario/ User´s manual 20Stage Monitors
3.5 Rigging with AX-L
AX-L is a two pieces L shaped wall mount
accessory which is fixed to the internal metal
structure included inside the SML-12A. By means of
this accessory the unit can be fixed both vertically and
horizontally.
The AX-L accessory can be fixed to the wall
or the ceiling with 8mm screws and plugs. A total of
eight screws and plugs are needed to do so. For more
detailed information please refer to the instructions
sheet included with every AX-L accessory.
SML-12A fixed vertically
SML-12A fixed horizontally
4. BLOCK DIAGRAMS
475
453 607
453
525
683
40º
5. LINE DRAWINGS
SM-12A
SM-15A
