13
Status: Displays the MAC address of the access point that is associated with the
DWL-G520.
SSID: The Service Set Identifier is the name assigned to the wireless network. The
factory SSID setting is set to default.
Tx Rate: Tx rate settings are automatically determined for an optimal speed up to a
maximum of 54Mbps.
Channel: The channel selection is automatically determined by the DWL-G520.
Link Quality / Signal Strength: Displays the Link Quality for the DWL-G520
wireless connection to the access point. The Signal Strength represents the wireless
signal between the access point and the DWL-G520. The percentage coincides with
the graphical bar.
Data Rate: Displays the statistics of data transmitted and received.

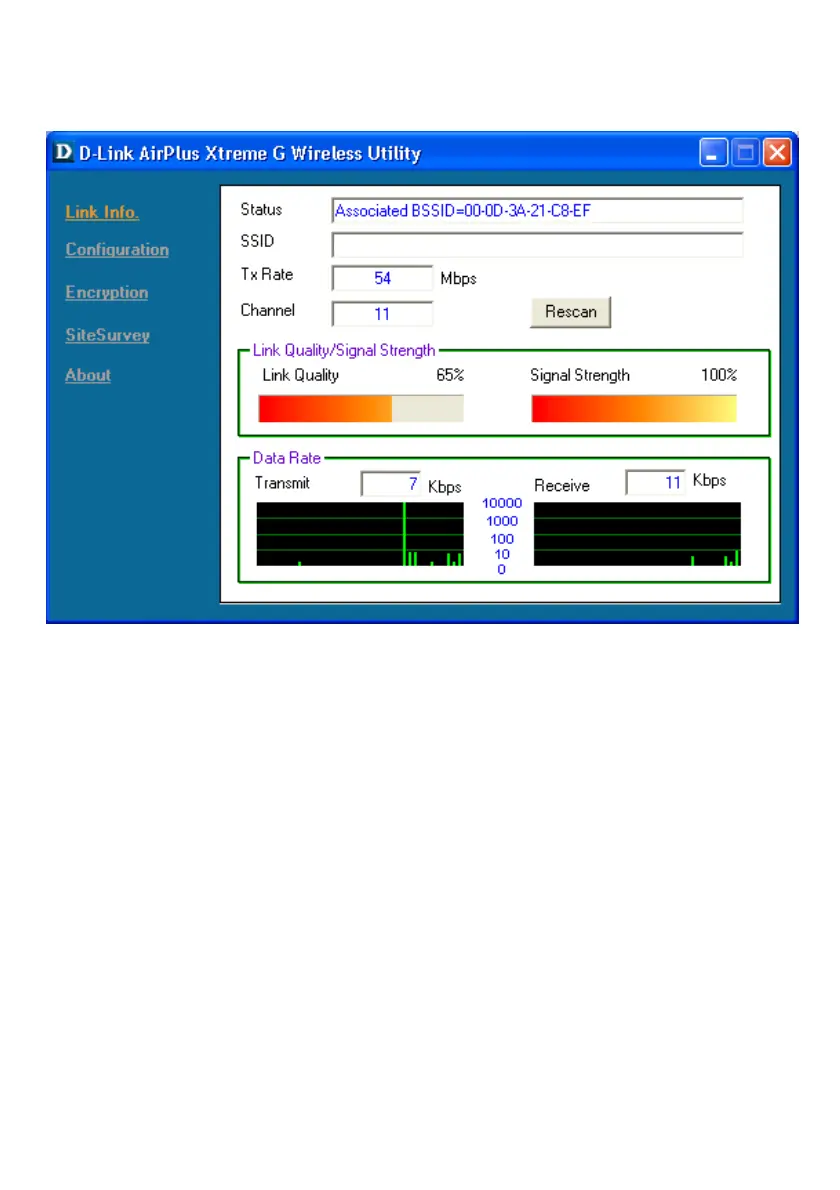

Configuration Utility (continued)
Link Info
Rescan: Rescans for the strongest signal in your environment and associates with
that access point or router.
default
