D-Link COVR-2202 Reviewer's Guide

13
14
C100 M0 Y19 K23
Pantone 3145C

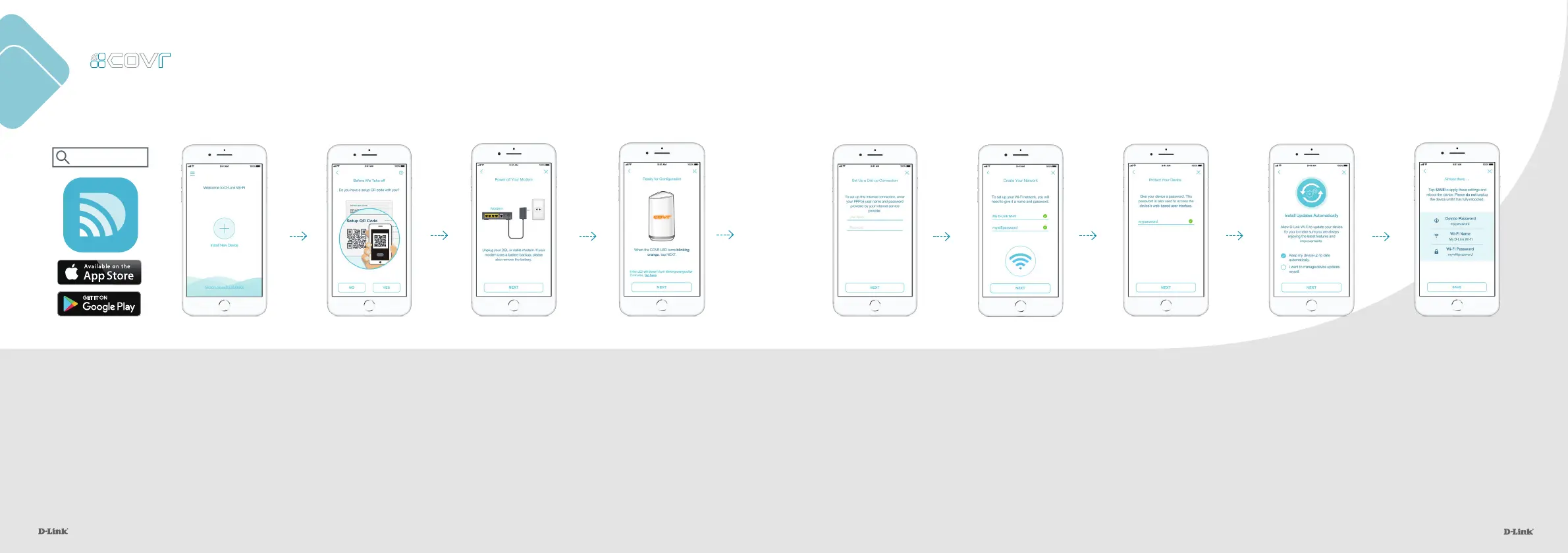

Set Up Using the D-Link Wi-Fi App
D-Link Wi-Fi
2.
Open the app and tap
Install New Device.
3.
Tap Yes and use your
phone to scan the QR
code on the base of
the Covr Point.
4.
Follow the instructions
to connect your existing
broadband modem or
router and power up
your Covr devices ready
for installation. Tap NEXT
to move through the
steps until your modem
or router is connected
and powered on.
5.
When the LED on your
Covr Point blinks amber, it
is ready for conguration.
Tap NEXT.
6.
D-Link Wi-Fi will attempt
to detect your internet
connection type. If your
internet uses a PPPoE
connection, enter the details
given by your service
provider. Tap NEXT to
continue.
7.
Set a Wi-Fi network
name (SSID) and
password. You should
try to choose a strong
password which is
difcult for others to
guess. Tap NEXT to
continue.
8.
Set a device (admin) password
for your Covr network. This
password is used to access
your Covr network’s settings
through the D-Link Wi-Fi app
or web-based interface. This
password should be different
from the Wi-Fi password
specied in the previous step.
Tap NEXT to continue.
10.
Setup is now complete.
A summary of your Covr
network settings will be
shown on the screen. Tap
SAVE to conrm these
settings. You will now be
guided on how to place
your Covr Points around
your home.
C100 M0 Y19 K23
Pantone 3145C
13
14
9.
Covr can automatically
install updates to make
sure that your system is
always up-to-date and
performing at its best.
Select Keep my device up
to date automatically to
enable this function. Tap
NEXT.
1.
Download the free
D-Link Wi-Fi app from
the App Store or
Google Play.

D-Link COVR-2202 Specifications

General

2.4 GHz	Yes
MIMO type	Multi User MIMO
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Internal	No
Placement	Table
Certification	FCC, IDA, IC, CB, CE, LVD, RCM, RoHS
Product color	Gold, White
Number of products included	2 pc(s)
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Security algorithms	WPA, WPA2, WPS
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Antenna features	Integrated antenna
Antennas quantity	6
Package depth	367 mm
Package width	260 mm
Package height	108 mm
Package weight	2396 g
Pallet width	1100 mm
Pallet length	1200 mm
Pallet height (air)	1299 mm
Pallet height (sea)	1881 mm
Pallet gross weight (air)	272600 g
Pallet gross weight (sea)	397400 g
Quantity per pallet (air)	96 pc(s)
Quantity per pallet (sea)	144 pc(s)
Shipping (inner) case width	384 mm
Shipping (inner) case height	291 mm
Shipping (inner) case length	458 mm
Shipping (inner) case weight	10400 g
Shipping (inner) case net weight	9584 g
Number of cartons per pallet (air)	24 pc(s)
Number of cartons per pallet (sea)	36 pc(s)
Quantity per shipping (inner) case	4 pc(s)

Weight and Dimensions

Depth	90 mm
Width	100 mm
Height	200 mm
Weight	690 g
