電源連接孔 -
電源指示燈 -
鏡頭
光線感測器 -
麥克風 -
喇叭 -
紅外線(IR) LED -
對焦環 -
PIR感應器 -
天線 -
網路連接埠
(10/100Mbps) -
音訊孔 -
RESET孔 -
MicroSD卡插槽 -
DI/DO連接埠 -
WPS指示燈 -
WPS快速無線連線按鈕 -

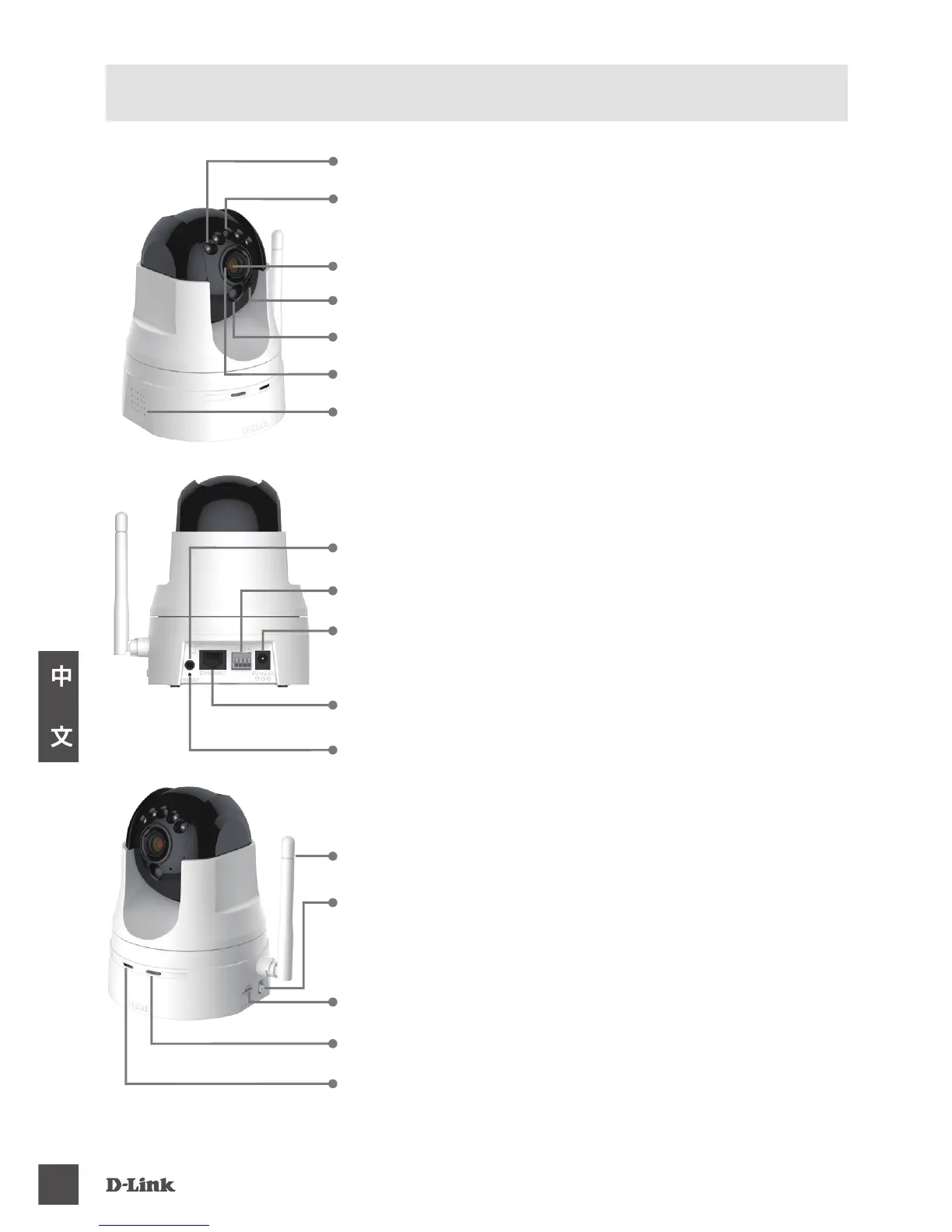

硬體概觀
•亮紅燈-開機中或網路不通
•亮綠燈-已開機並正常運作中
•輸入AC100-240V
•輸出DC5V2.5A
按壓一下可與支援WPS功能的無線基地台快速連線
快速閃爍時表示WPS程序執行中
收錄環境內的聲音
可播放雙向語音時觀看者傳來的聲音
夜視模式時將會啟用
偵測環境內的光源
用於觸發移動偵測
影像模糊時可左右旋轉此環來調整焦距
按壓10秒可將設定回復預設值,清空
登入密碼並可重新註冊mydlink帳號
可儲存錄製和擷取的影像
可連接數位I/O裝置(如警報器)
增加無線收訊的範圍
外接變壓器
連接電腦或網路裝置
可連接音訊I/O裝置(如喇叭或麥克風)
