D-Link DES-1005P Quick Install Guide

3 D-Link DES-1005P Quick Install Guide

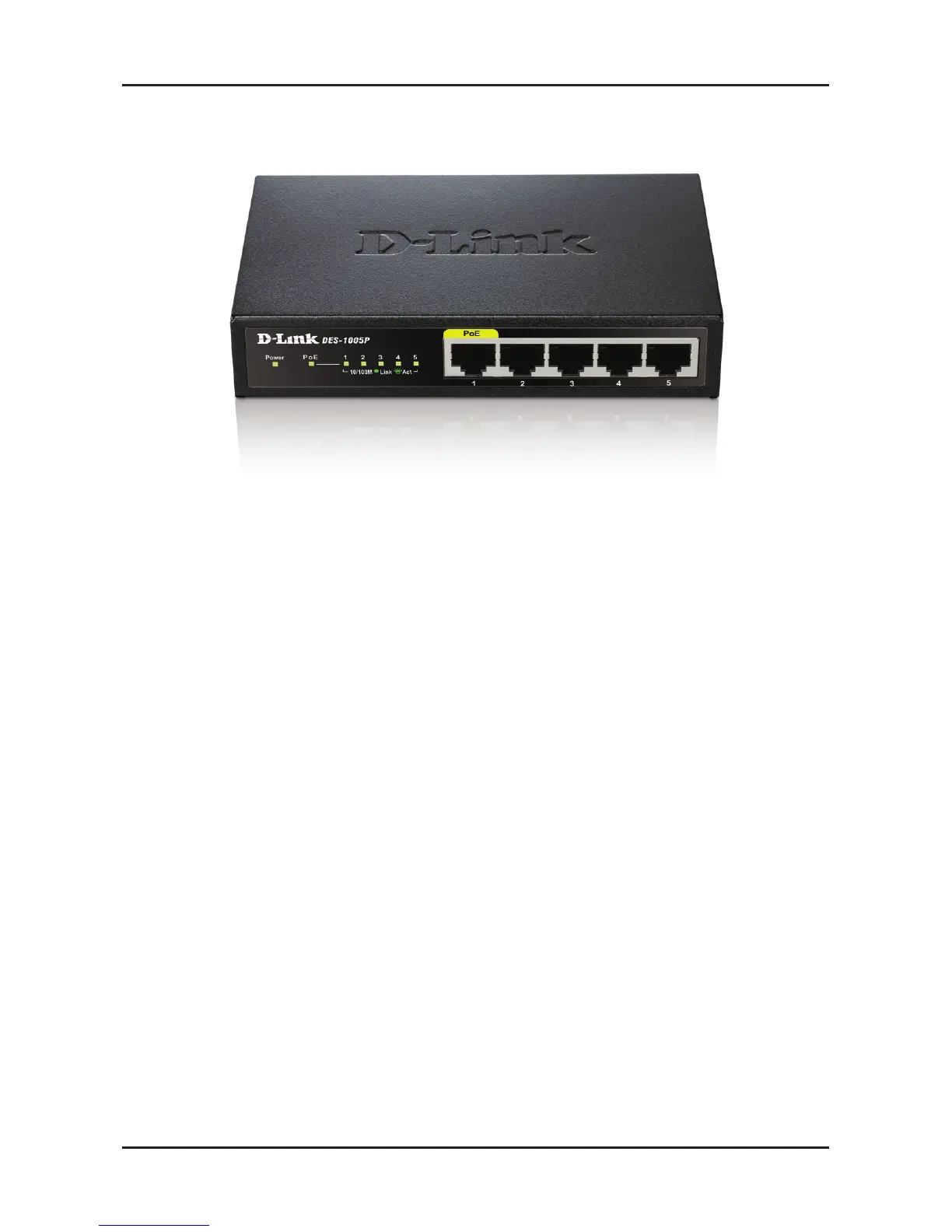

Power Indicator - This green indicator light is on when the Switch is receiving
power; otherwise, it is o.
Link/Act/Speed (1-5) - This LED indicator light is green when the port is
successfully connected to a 10/100Mbps device and will blink as data is
transmitted or received.
PoE Port (1) - This LED indicator light is solid green when the port is
successfully connected to a powered device and is powering the device
properly.
If the LED is o, there is no connection to a powered device (that requires power).
LEDs

D-Link DES-1005P Specifications

General

MAC address table	2000 entries
Store-and-forward	Yes
Maximum data transfer rate	0.2 Gbit/s
Supported data transfer rates	10/100 Mbit/s
10G support	No
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Networking features	Fast Ethernet
Packet transfer speed	148800 pps
Switch type	Unmanaged
Switch layer	-
Power connector	DC-in jack
Basic switching RJ-45 Ethernet ports quantity	5
Power over Ethernet (PoE) ports quantity	1
Power consumption (typical)	1.8 W
Certification	RoHS, FCC, ICES-003, cUL
Product color	Black
LED indicators	Link, PoE
Mean time between failures (MTBF)	324616 h
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	85 mm
Width	140 mm
Height	28 mm
