6.2 TheGreenBow VPN Client Software (X-Auth) and D-Link security
solutions (VPN ClientÆDFL-800)

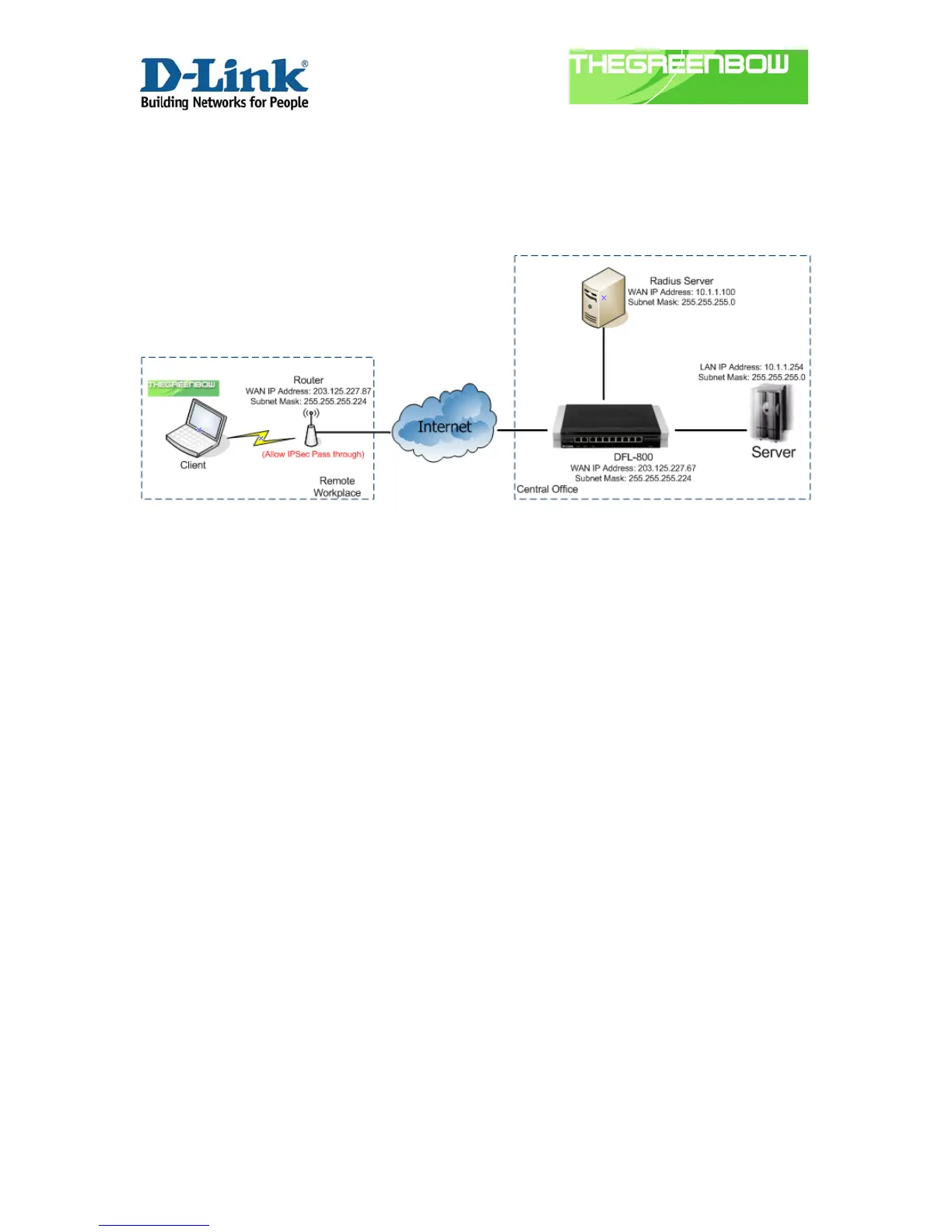

In this scenario the client will be authenticate (X-Auth) before the user can connect back
to the headquarter database by using TheGreenBow VPN Client connection to DFL-800
authenticate by External Authentication (Radius Server).
All configurations are based on DFL-800 (F/W: 2.20.03.08-8257), TheGreenBow VPN
Client (F/W: 4.60.0.0) and WinRadius (Version 4.00)
Note: Before configuration this solution, please make sure that your DFL-800 and VPN Client had
the IPSec setting configured. Please refer to (6.1 - TheGreenBow VPN Client software (IPSec)
and D-Link Security Solutions (VPN Client
Æ DFL-800))
The steps in this configuration are:
• Setup DFL-800 for X-Auth
• Enable the X-Auth in DFL-800
• Setup the External Authentication Server
• Setup TheGreenBow VPN Client software
• Enable the X-Auth Function
• Setup WinRadius Server
• Set the Secret Key
