Identifying Components
2

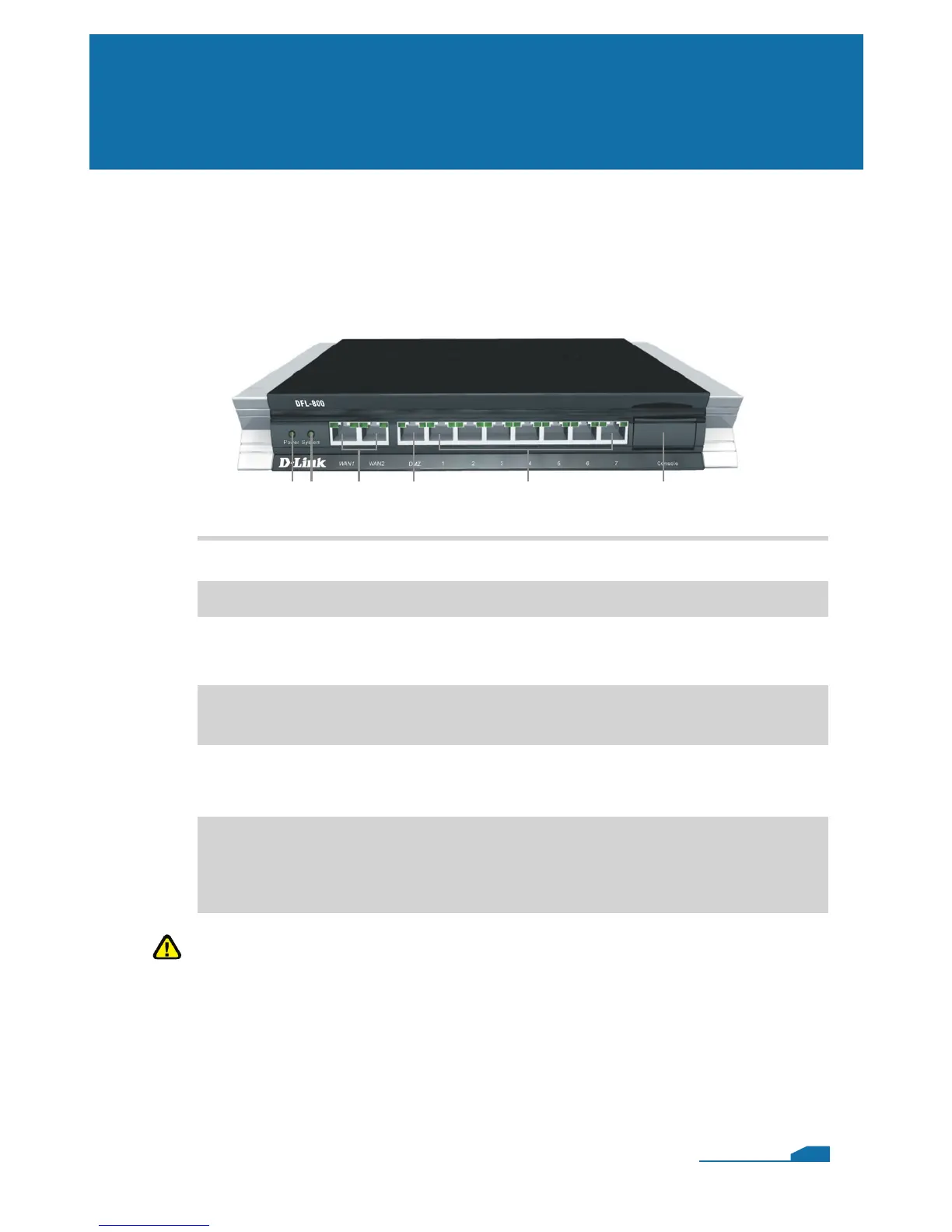

The following illustrates the front panel of the DFL-800 and
explains the front panel’s key components:
2.1 Front View
1 2 3 4 5 6
02
1. Power LED
2. System LED
3. WAN Ports
4. DMZ Port
5. LAN Ports
6. Console Port
Power indication of the DFL-800.
System status indication of the DFL-800.
These are for the connection of an Ethernet cable to a Cable
or DSL modem.
This is for the connection of an Ethernet cable to an DMZ
network.
These are for the connection of Ethernet cables to the internal
network.
Connects to RS-232 console cable that connects to PC.
The console port is hidden behind a protection coverlid that
can be opened by pulling down the lid.
Note:
None of the WAN1 and WAN2 interfaces support Auto MDI/MDI-X
(Automatic cable detection for Straight-through and Crossover
function.
