D-Link DIR-1750 - Hardware Connection Setup

11D-Link DIR-1750 User Manual
Section 2 - Installation
4 3 2 1 INTERNET
RESET
WPS
POWER
12V...1.5A
- • +

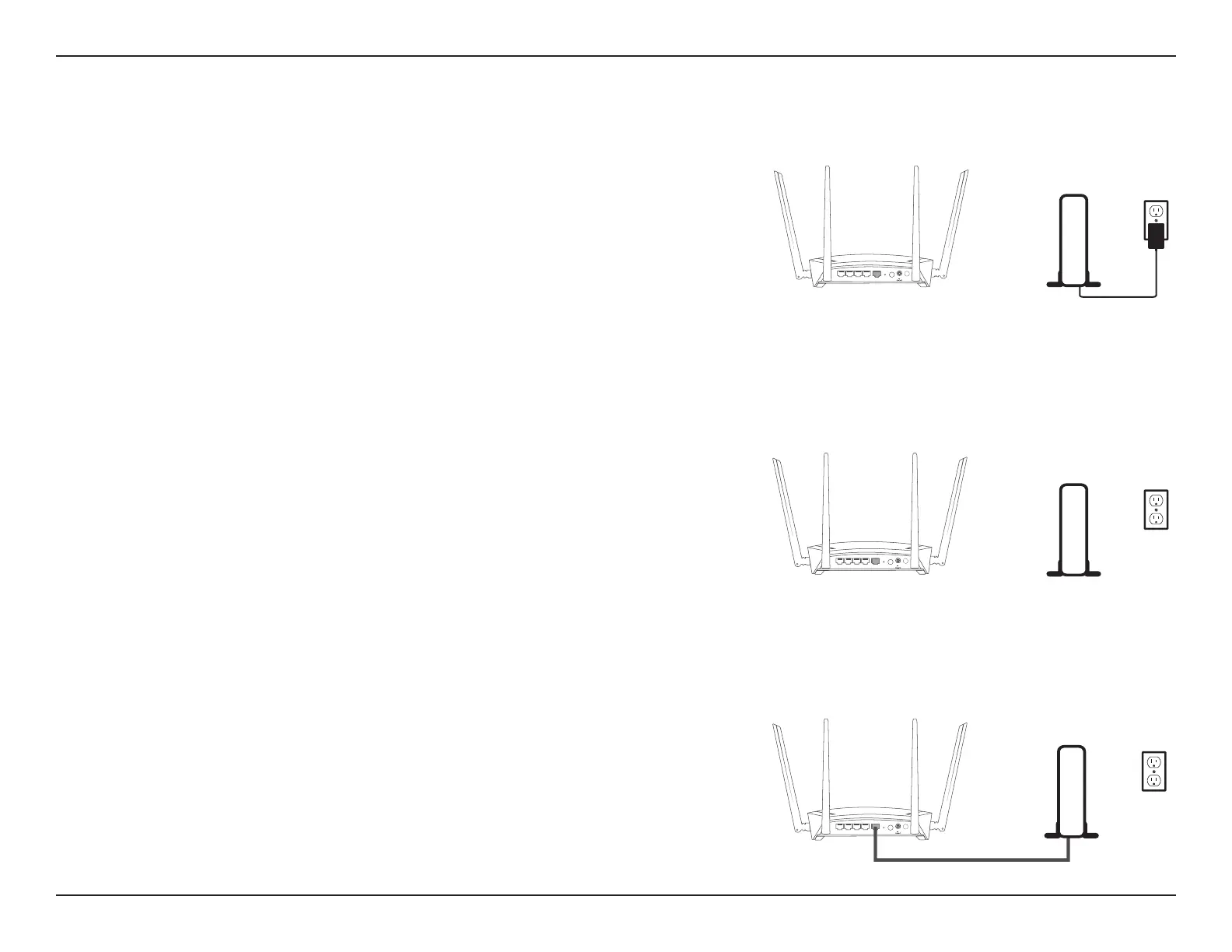

Hardware Setup
Step 1
Position your DIR-1750 near your Internet-connected modem. Place it in an
open area for better wireless coverage.
Step 2
Turn o and unplug the power to your cable or DSL broadband modem. This
is required. In some cases, you may need to turn it o for up to ve minutes.
ModemModem
4 3 2 1 INTERNET
RESET
WPS
POWER
12V...1.5A
- • +
4 3 2 1 INTERNET
RESET
WPS
POWER
12V...1.5A
- • +
Step 3
Use the Ethernet cable to connect your modem to the port labelled
INTERNET on the router.
Modem
