10D-Link DIR-802 User Manual
Section 2 - Installation
INTERNET

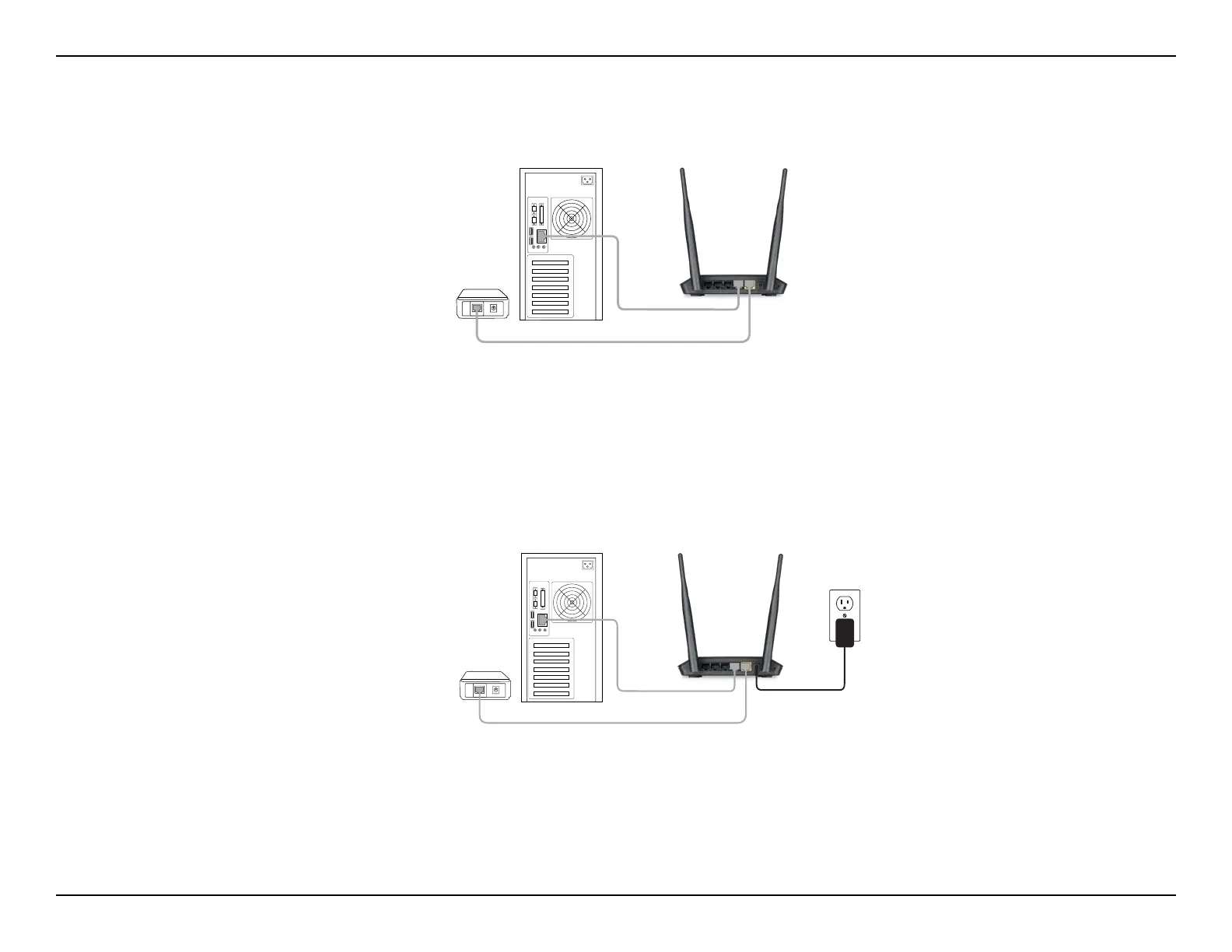

4. Plug one end of the included blue Ethernet cable that came with your router into the yellow port labeled
INTERNET on the back of the router. Plug the other end of this cable into the Ethernet port on your modem.
5. Reconnect the power adapter to your cable or DSL broadband modem and wait for two minutes.
6. Connect the supplied power adapter into the power port on the back of the router and then plug it into a power
outlet or surge protector. The power LED is lit. Allow 1 minute for the router to boot up.
7. If you are connecting to a Broadband service that uses a dynamic connection (not PPPoE), you may be online
already. Try opening a web browser and enter a web site. If a solid light indicates connection on the Internet port
and the router can connect to the Internet. If the LED is orange, the connection is good but the router cannot
connect to the Internet.
INTERNET
DIR-802
DIR-802
Modem
Modem
Computer
Computer
