DIR-830M Quick Installation Guide
Mesh Network Main Device (Controller)

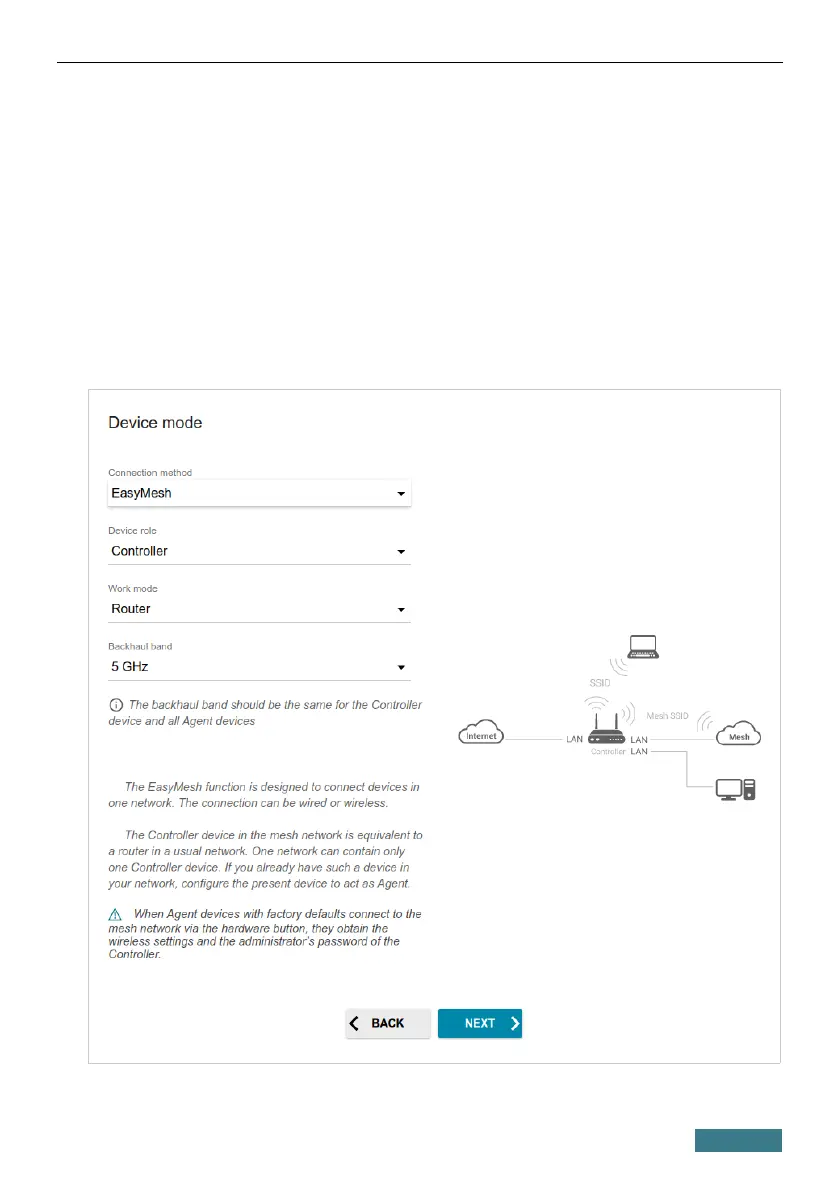

In order to configure DIR-830M as a main device of your mesh network, from
the Connection method list, select the EasyMesh value. Then from the
Device role list, select the Controller value. From the Backhaul band
list, select the band where your mesh network operates.
In order to connect your main device to a wired ISP, from the Work mode
list, select the Router value. In this mode you can configure a WAN
connection, set your own settings for the wireless network in the 2.4GHz and
5GHz bands, configure LAN ports to connect an STB or VoIP phone, and set
your own password for access to the web-based interface of the device.
25
