D-Link DPS-200A

4
ENGLISH

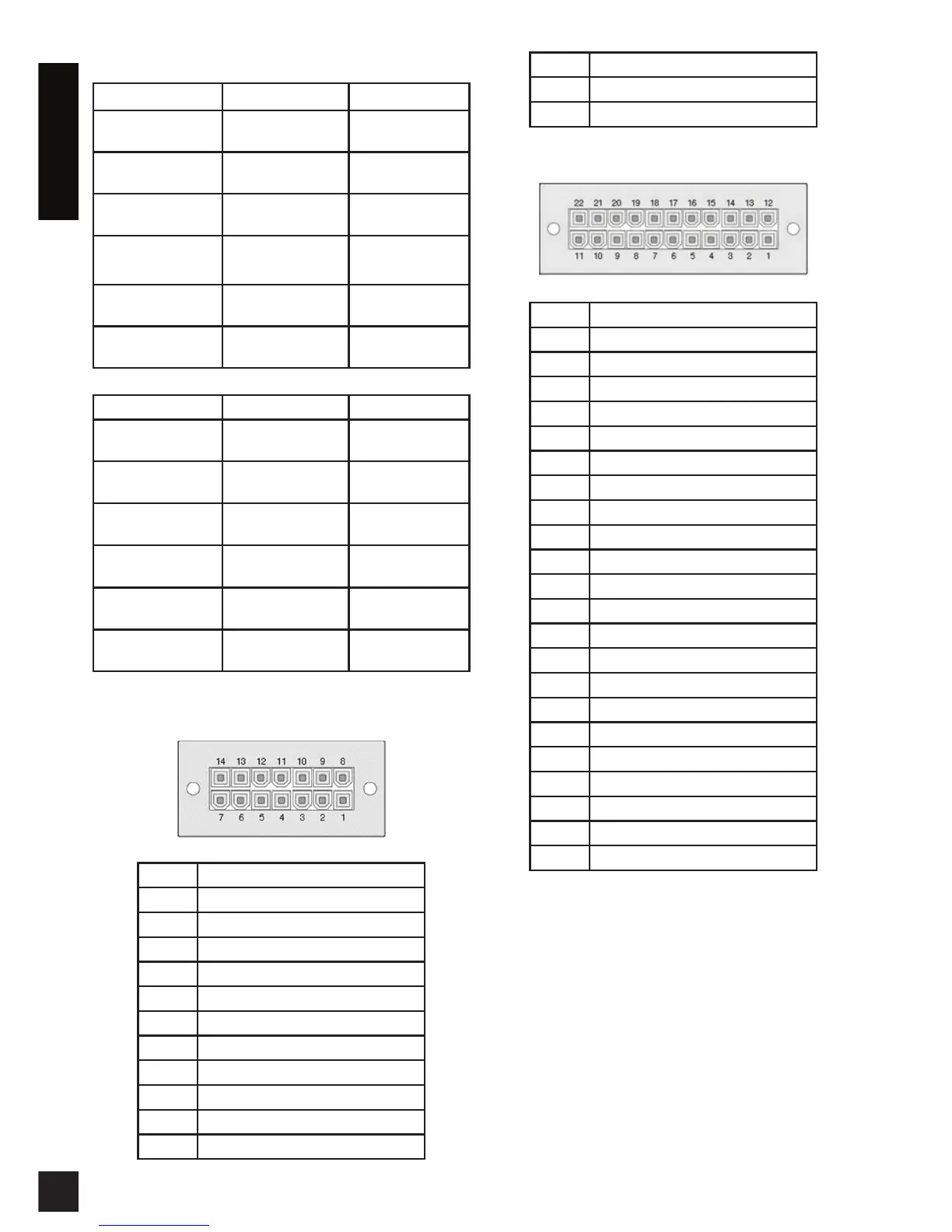

Product Specication
Model Name DPS-200A DPS-500A
Input
Voltage
100 to 240 V AC 100 to 240 V AC
Input
Frequency
50-60 Hz 50-60 Hz
Max Input
Current
2 A 2 A
Output
Voltage
12 V 12 V
Output
Current
13 A 13 A
Operation
Temperature
0 to 50°C 0 to 50°C
Model Name DPS-500DC DPS-700
Input
Voltage
-36 to 72
V DC
90 to 264 V AC
Input
Frequency
- 47-63 Hz
Max Input
Current
6 A 7.5 A
Output
Voltage
12 V 12 V / -54 V
Output
Current
12.5 A 14 A / 7.8 A
Operation
Temperature
0 to 50°C 0 to 65°C
Pin Assignment (DPS-200A/500A/500DCA)
Pin DPS-200A/500A/500DCA
1 GND
2 N/C
3 +12 V
4 +12 V
5 +12 V
6 +12 V
7 GND
8 N/C
9 N/C
10 RPS Present
11 N/C
12 N/C
13 PWR-Good
14 GND
Pin Assignment (DPS-700)
Pin DPS-700
1 -54Vrtn
2 -54V
3 +12 V
4 +12 V
5 +12 V
6 +12 V
7 GND
8 +12VRTNsen
9 LS-54V
10 -54V
11 -54Vrtn
12 GND
13 N/C
14 RPS_Present
15 Status 1
16 Status 2
17 RPS_ Power Good
18 GND
19 +12VRTNsen
20 LS+12V
21 -54Vsen
22 -54VRTNsen
