DSL-522T ADSL Router User Guide
combination that is unique to the Router. These numbers will have been already been established by your
service provider on their network.
To add a new virtual connection:
1. Select the new PVC to configure from the pull-down menu.
2. Enter the values for the VPI and VCI given to you by your service provider.
3. To activate the VC, select Enabled from the Virtual Circuit pull-down menu.
4. Configure the WAN Settings and Connection Type as desired.
5. To save the new settings, click the Save and Reboot button (Tools > System). The new connection
will activate upon restarting.

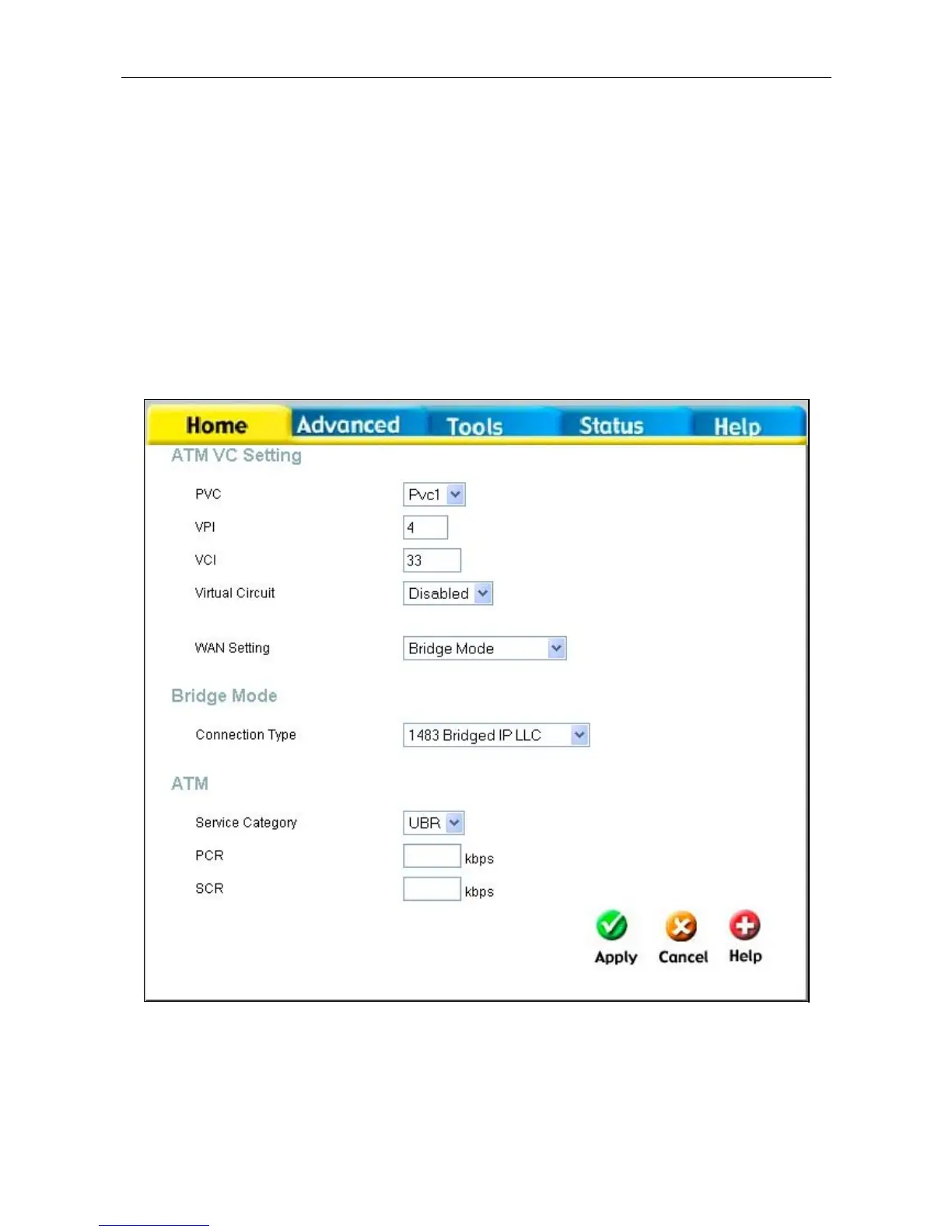

In the example below, a new PVC (Pvc1) has been added using the WAN Settings window. The connection
is setup as a bridged connection.
Configure new PVC
The new PVC that appears can be configured separately in other windows availailable in the Advanced
directory.
40
