DSL-522T ADSL Router User Guide
Filters
Filter rules in the Router are put in place to allow or block specified traffic. The Filter Rules however can be
used in a single direction to examine and then Allow or Deny traffic for Inbound (WAN to LAN) or Outbound
(LAN to WAN) routed data. The rules are based on IP address and TCP/UDP port.
Configure the filter rules as desired and click the Apply button to create the rule. The newly created rule
appears listed in the Outbound Filter List at the bottom of the window. The table below describes the various
parameters that are configured for the filter rules.

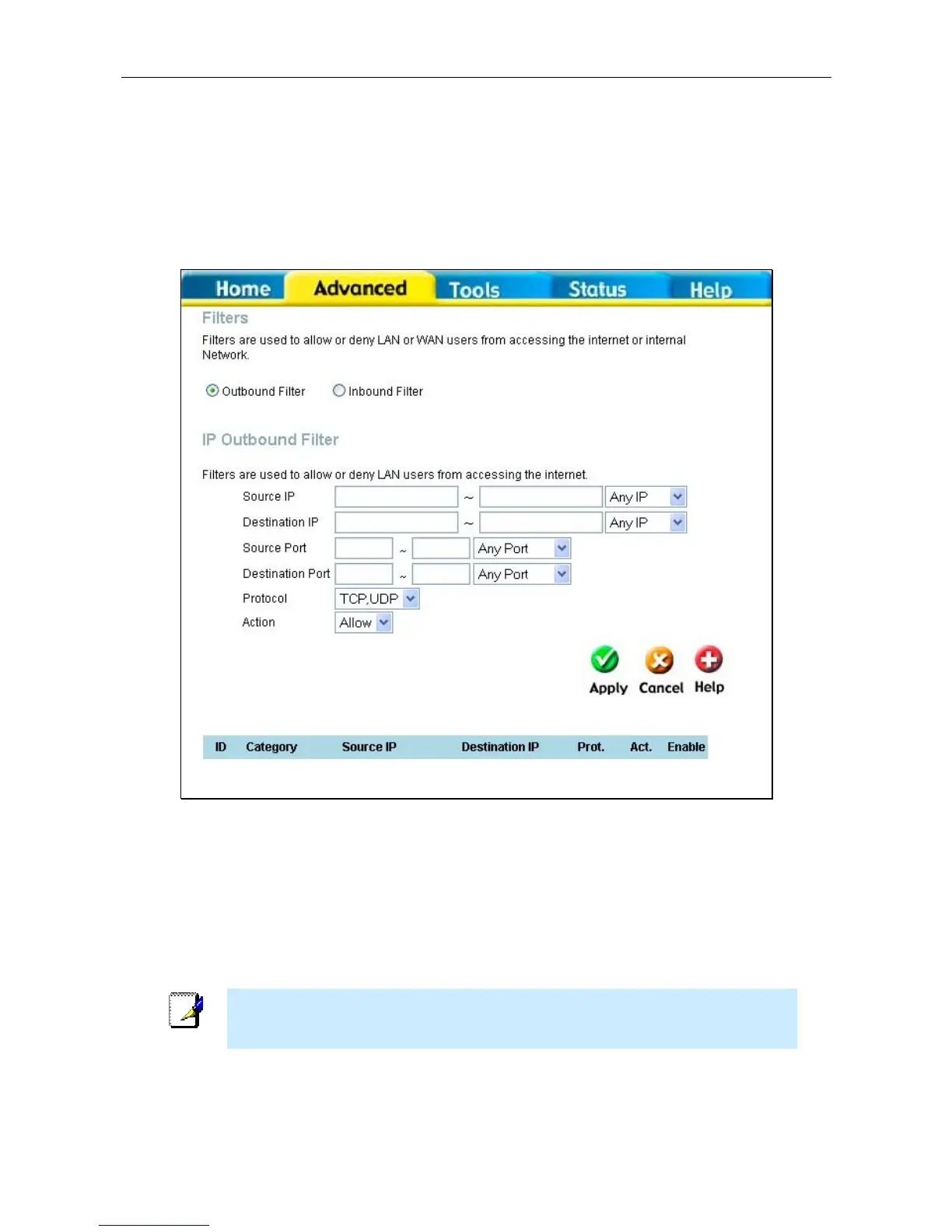

Filters window
To modify any previously created filter rule, click on the note pad icon in the right hand column of the Filter
List for the set you want to configure. Adjust the settings as desired and click the Apply button to put the new
settings into effect.
First determine the direction of the traffic you want the rule to filter. To filter WAN to LAN traffic, select the
Inbound Filter option. Any new Inbound Filter rules created will appear in the list. Likewise, should you to
filter LAN to WAN traffic, create an Outbound Filter rule.
Note
The Service Filtering feature of the Firewall may interfere with ules configured in the
Filters window. For example, FTP packets are not allowed through from the external
network by default. See the Firewall section below for details.
48
