14
Status: Displays the MAC Address of the Access Point that is associated
with the DWL-G520+.
SSID: The Service Set Identifier is the name assigned to the wireless
network. The factory SSID setting is set to default.
TxRate: The default setting is Auto; TxRate settings are automatically
determined by the DWL-G520+ depending on the distance from the access
point at this default setting.
Channel: Displays the channel information. By default, the channel is set to 6
and selection is automatically determined by the DWL-G520+.
Link Quality / Signal Strength: Displays the Link Quality for the DWL-
G520+ wireless connection to the access point. The Signal Strength
represents the wireless signal between the access point and the DWL-
G520+. The percentage coincides with the graphical bar.
Data Rate: Displays the statistics of data transmitted and received.

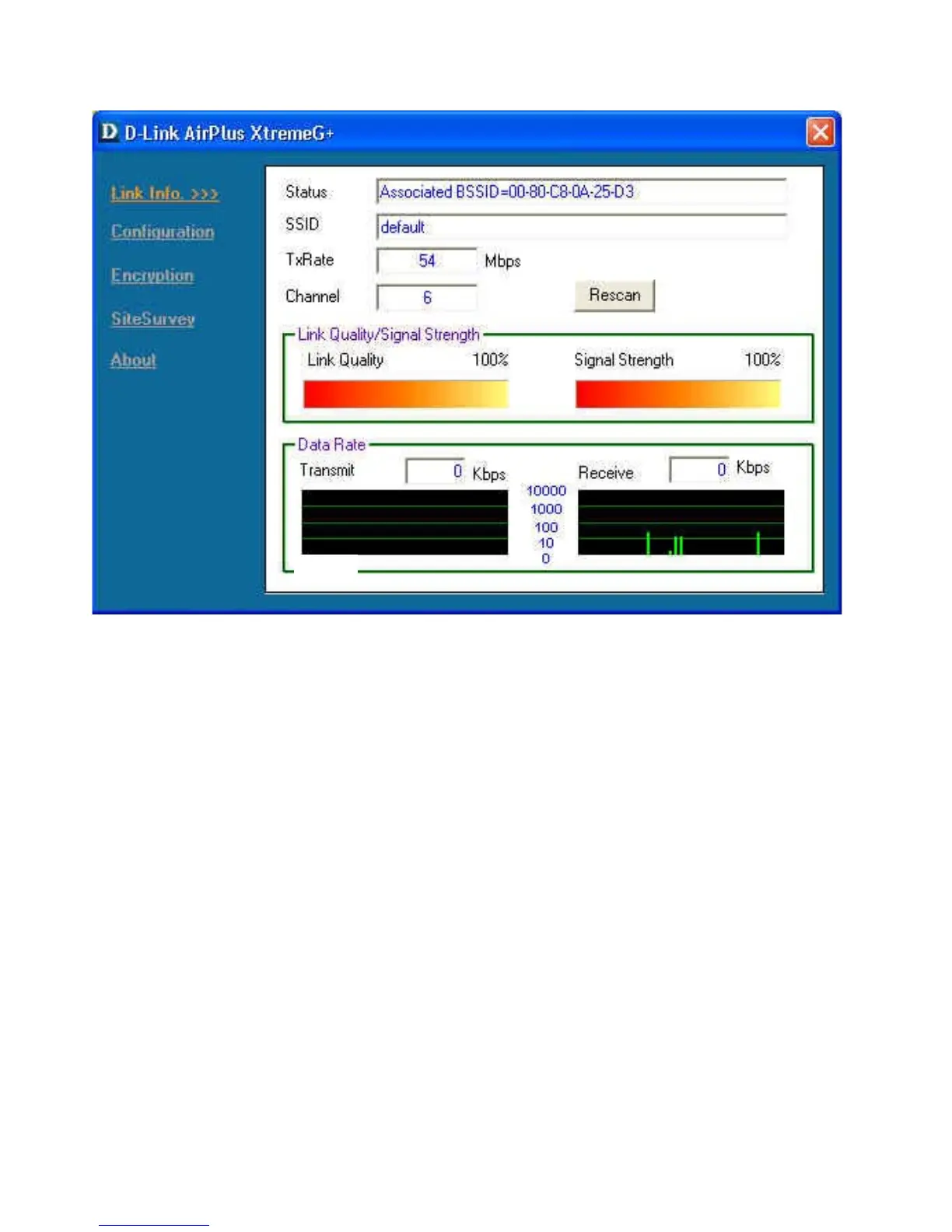

Configuration Utility
Link Info
