D-Link RangeBooster N DIR-628 - LEDs

10D-Link DIR-628 User Manual
Section 1 - Product Overview
Hardware Overview

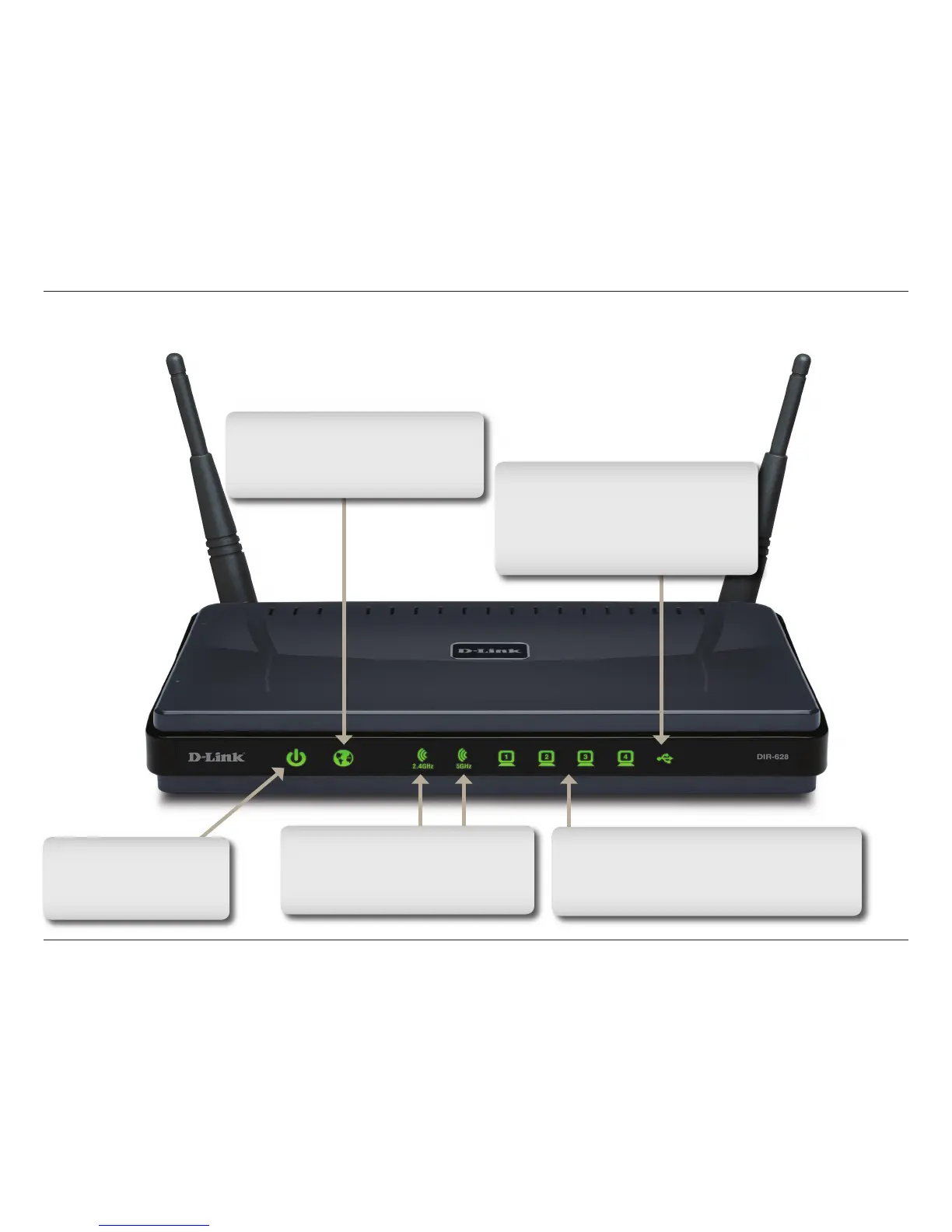

LEDs
Internet LED
A solid light indicates connection on
the Internet port. This LED blinks
during data transmission.
Power LED
A solid light indicates a
proper connection to the
power supply.
Local Network LEDs
A solid light indicates a connection to an
Ethernet-enabled computer on ports 1-4.
This LED blinks during data transmission.
WCN LED
Insert a USB flash drive with WCN
information. The LED will blink 3 times
if it successfully transfers the wireless
settings.
WLAN LEDs
A solid light indicates that the wireless
segment is ready. This LED blinks
during wireless data transmission.
